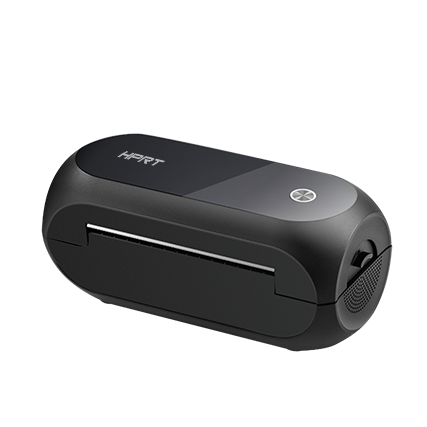

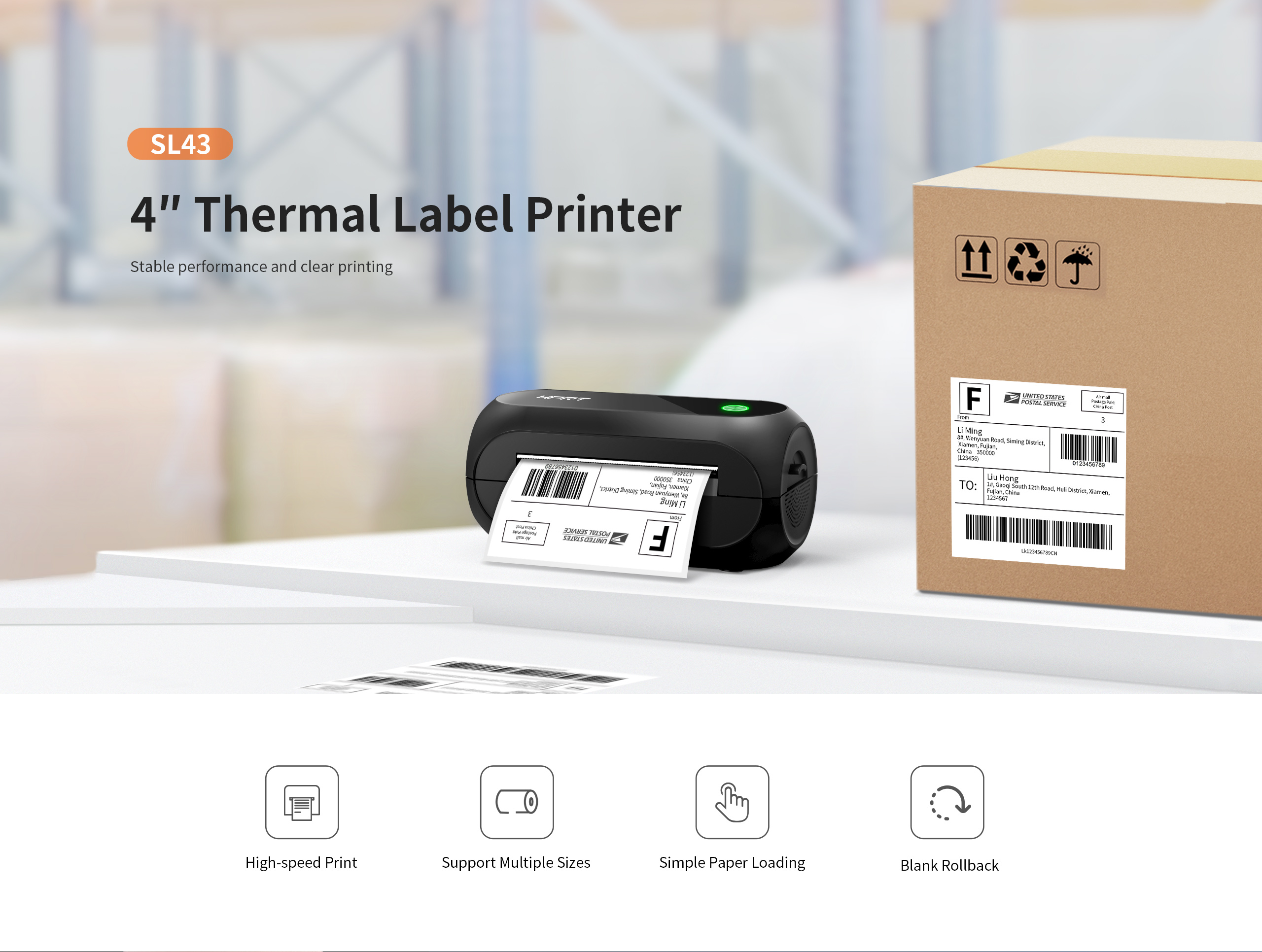

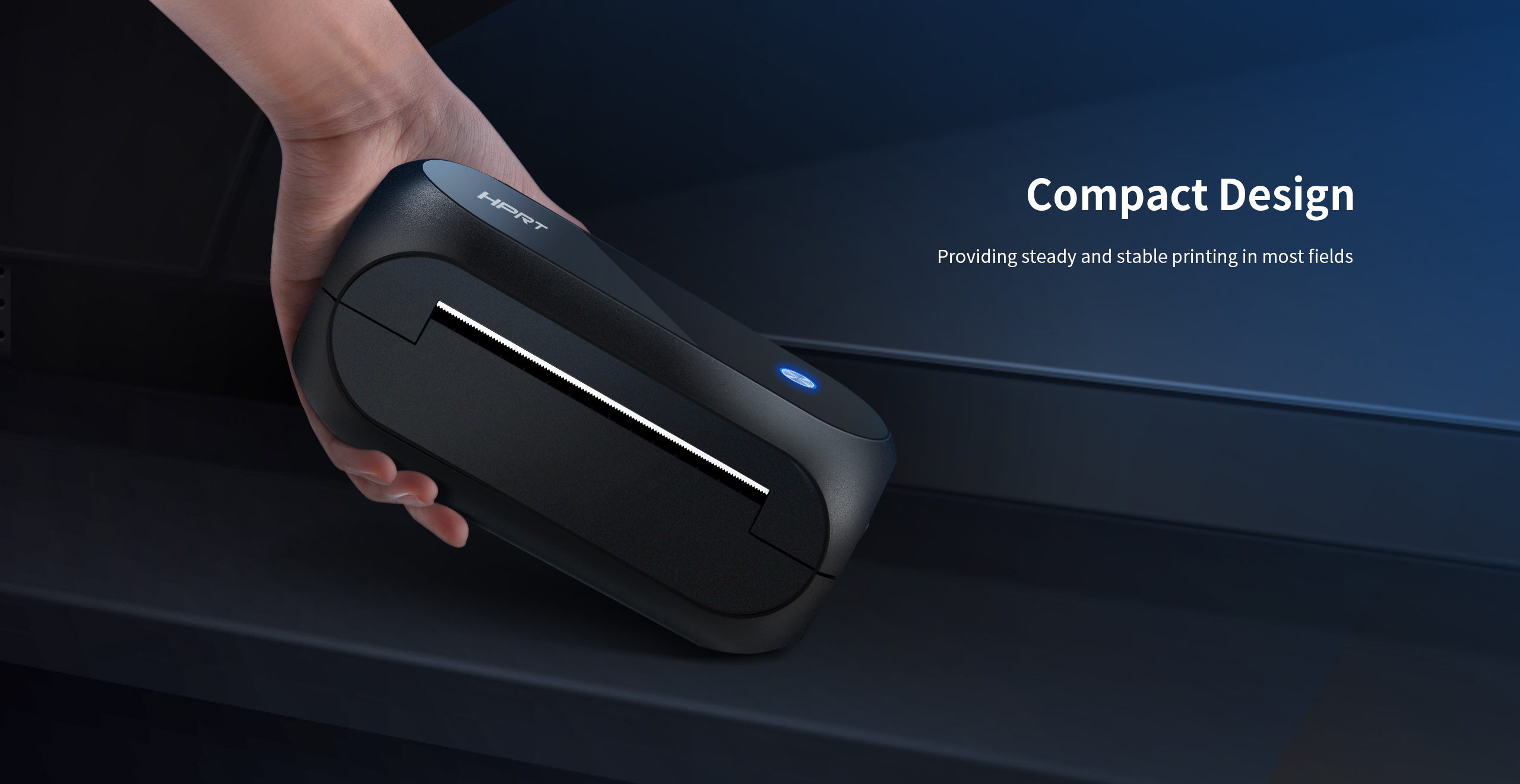

• Extremely compact size, space-saving
• Attractive and sleek appearance
• Compatible with mutiple e-commerce and shipping platforms
• Durable and long service life
• Up to 6ips printing speed with low noise

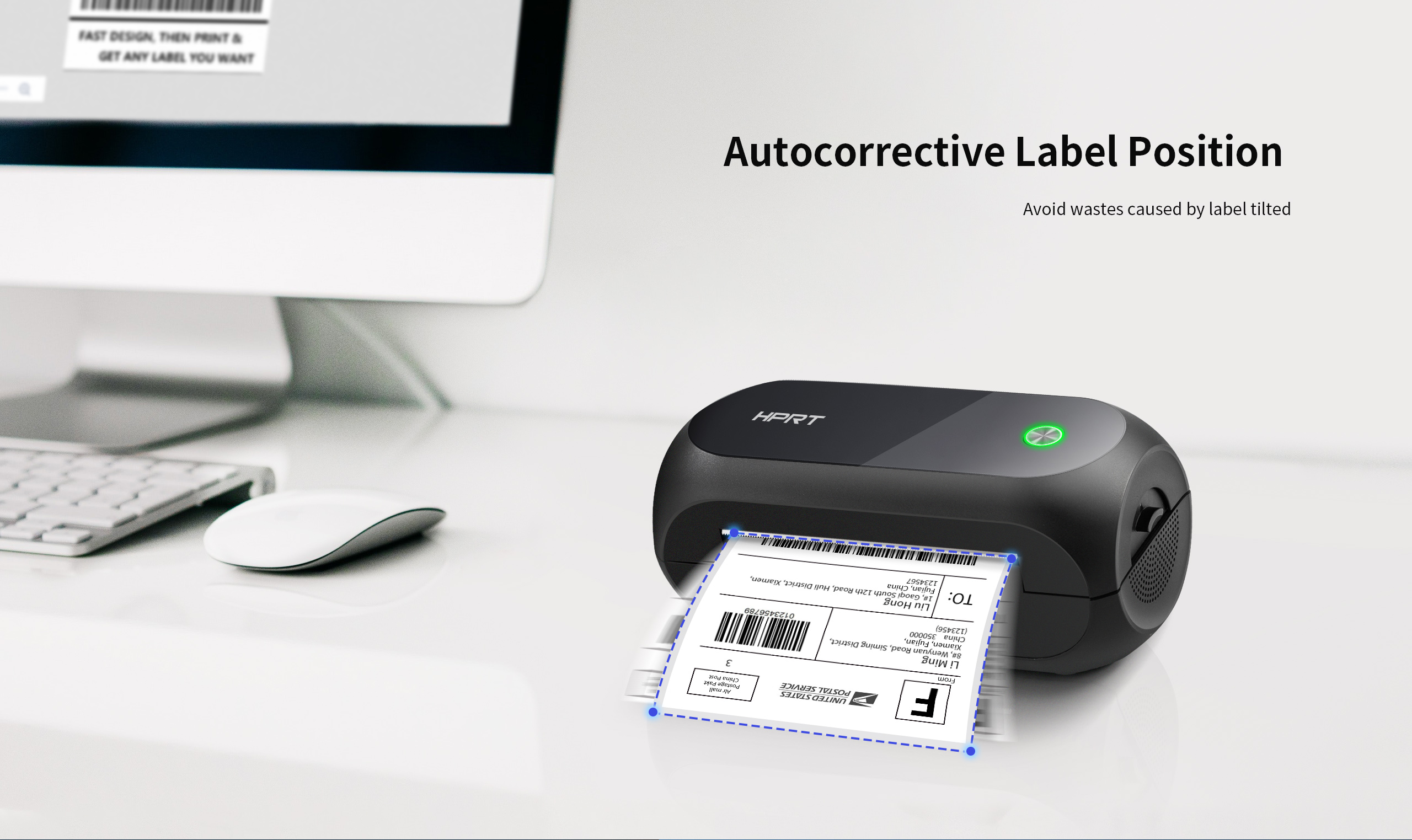

• Auto label detection and paper feeding
• Support external paper roll/folding paper
，
| Items | Specififications | |
| Printing | Printing | Direct Thermal |

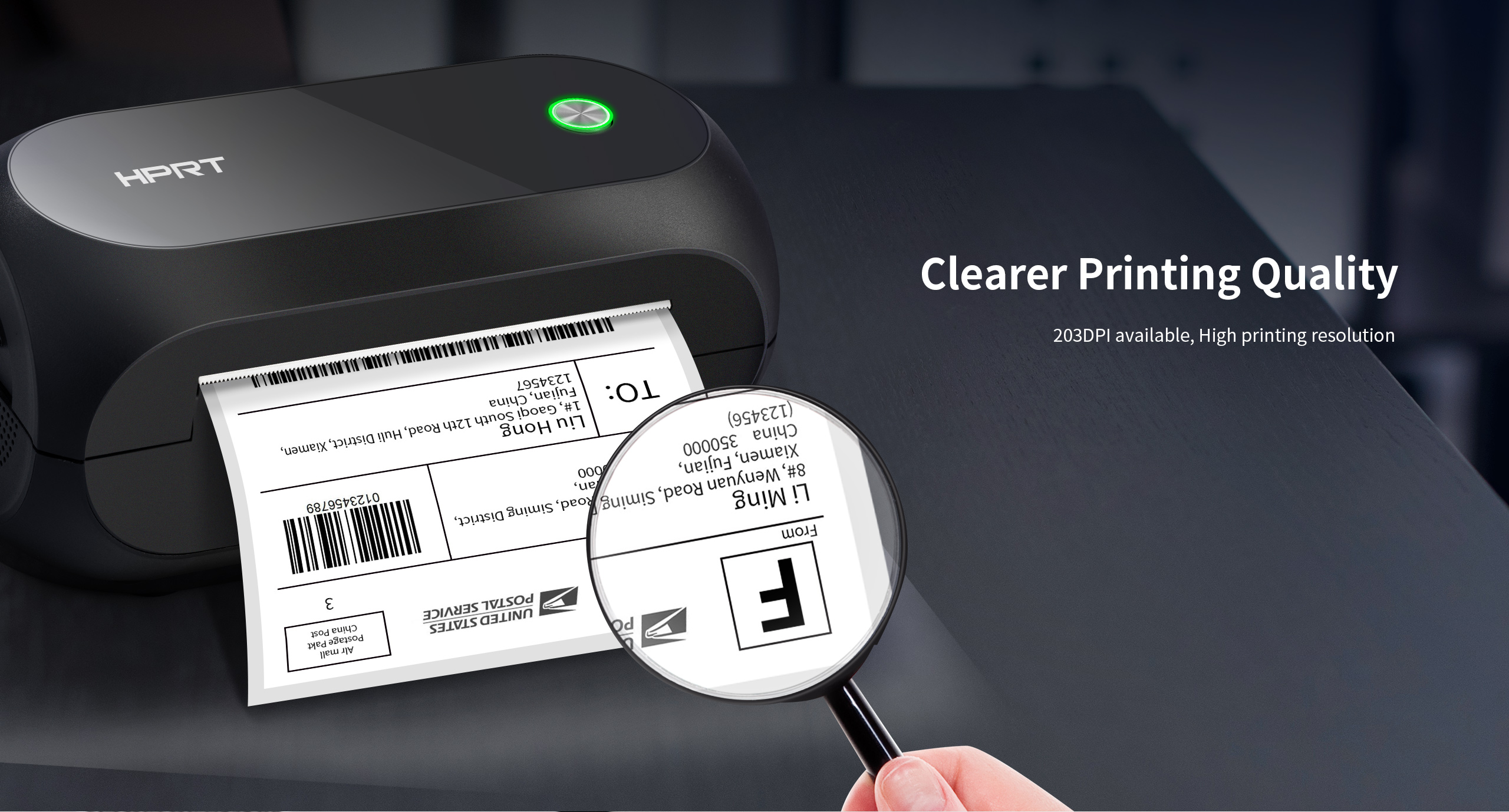

| Resolution | 203 DPI(8 dot/mm) | |
| Printing Speed | 150mm/s max | |
| Printing Width | 104mm | |
| Printing Length | 300mm max | |
| Processor | 32-bit RISC CPU | |
| Detection | Sensors | Paper detection, Gap detection,Black mark detection |

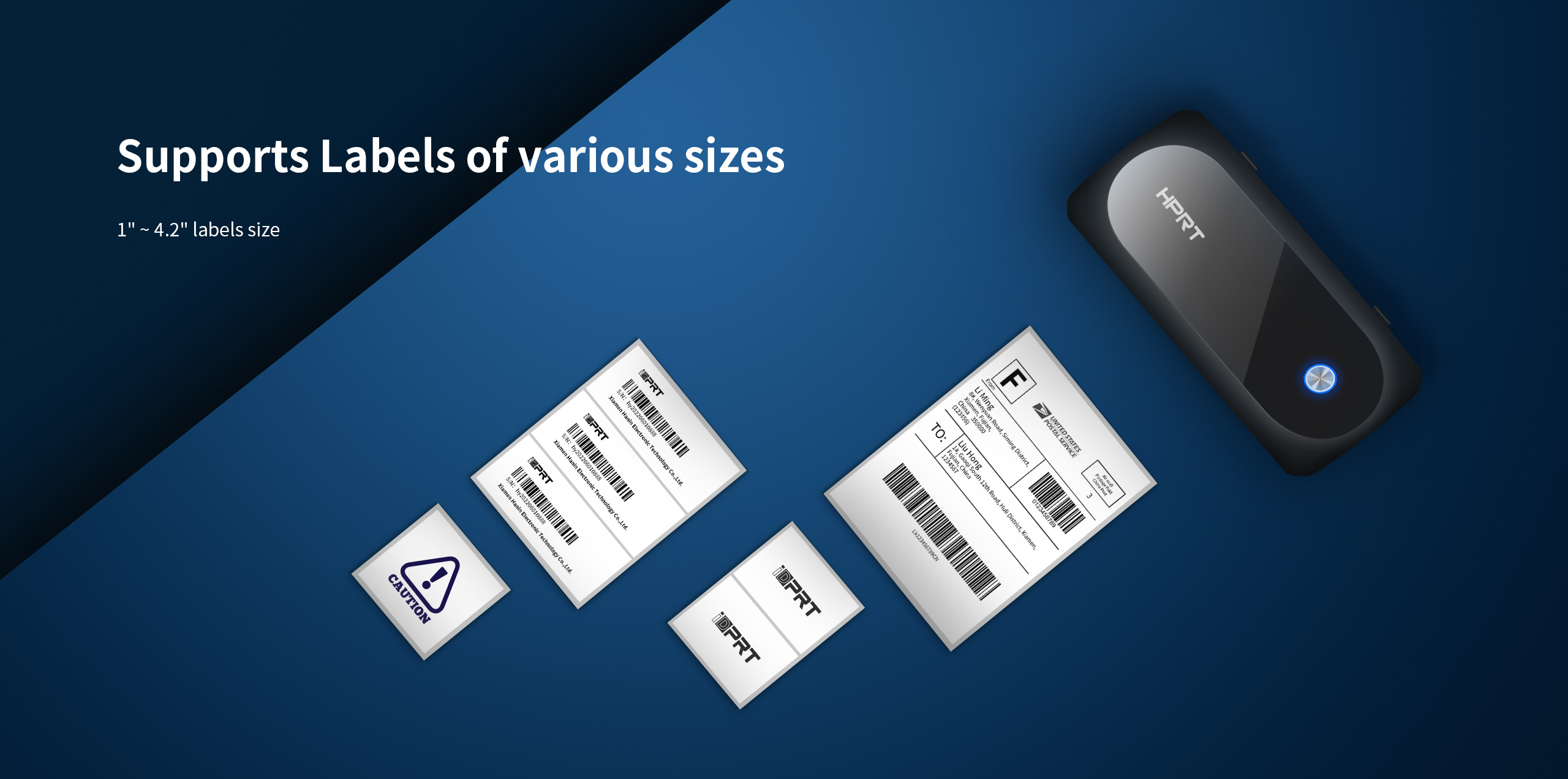

| Supply | Types | Folded paper or roll paper, continuous paper, label, die-cut label, |
| Width | black mark paper | |
| Thickness | 25mm-110mm | |
| External folding paper | 0.003"(80μm)-0.0087" (220μm) | |
| External paper roll | W:100mmx L:100mm- 300mm | |
| Max OD 5''(127mm) | ||
| Programming language | TSPL | |
| Software | Design Label | Here Label |

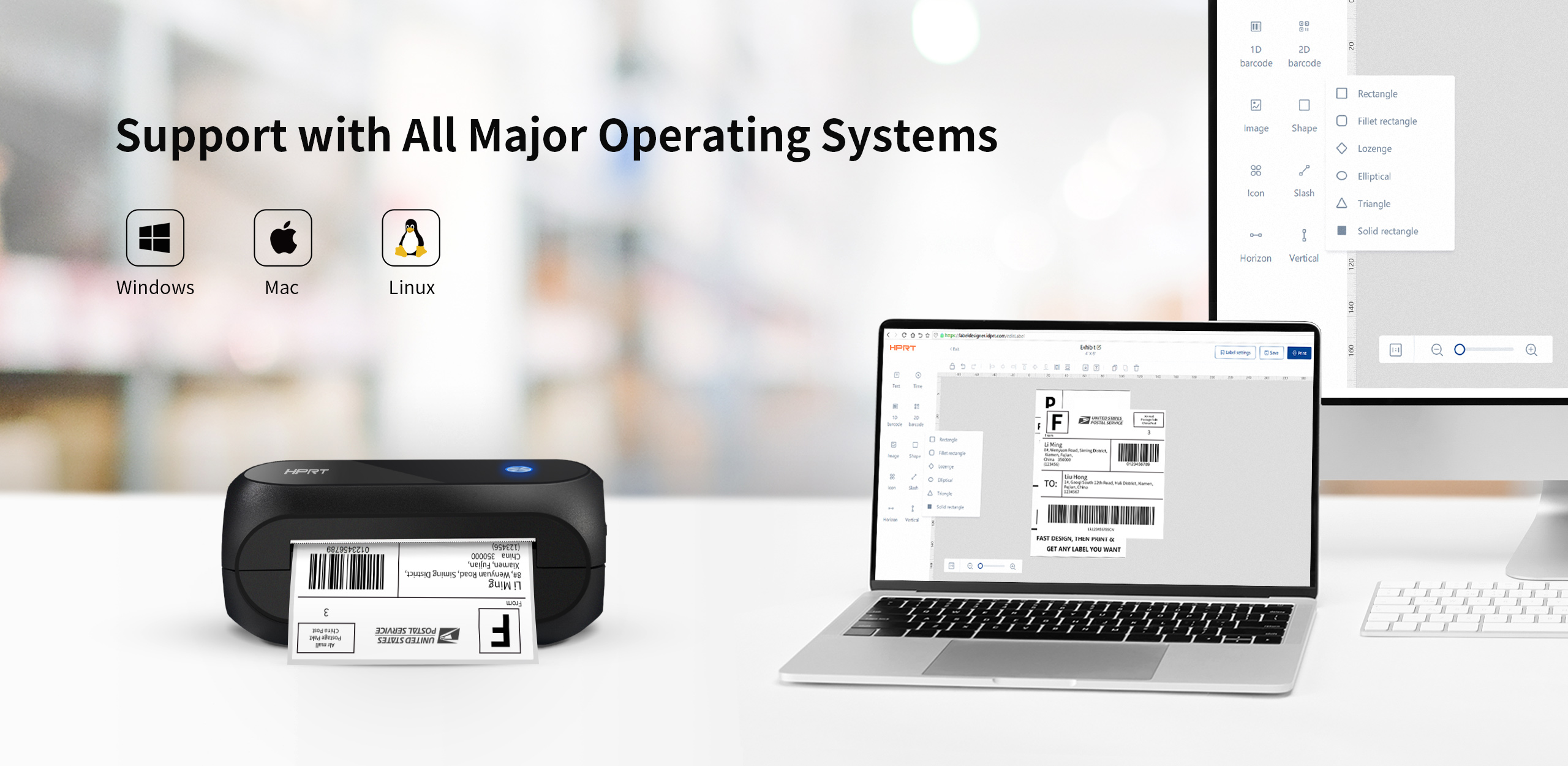

| Driver | Windows 2000,Win7,8,10 | |
| Fonts | Chinese | GB18030 16×16, 24×24dots |
| English | ASCII 8×16, 12×24dots | |
| Barcode | 1D | Code 39, Code 93, Code 128UCC, Code 128 subsets A, B, C, Codabar, Interleaved2 of 5，EAN-8,EAN-13,EAN-128, UPC-A, UPC-E |
| 2D | PDF-417, QR code | |
| Interface | USB | |

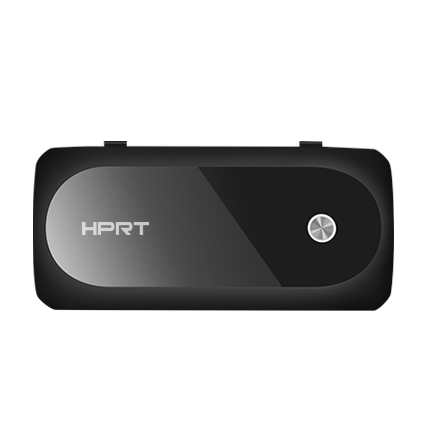

| Control Panel | One Feed button(three colors LED for different three states) | |
| Power Adapter | Input | AC:110-220V |
| Output | DC 24V/2.5A | |
| Environment | Operation | 5℃ - 40℃，30%-85%，non-condensing |
| Storage | 20℃ - 70℃，10%-90%，non-condensing | |
| Physical Characteristics | Dimension | 186*82*86mm（L*W*H） |
| Weight | 0.62KG | |

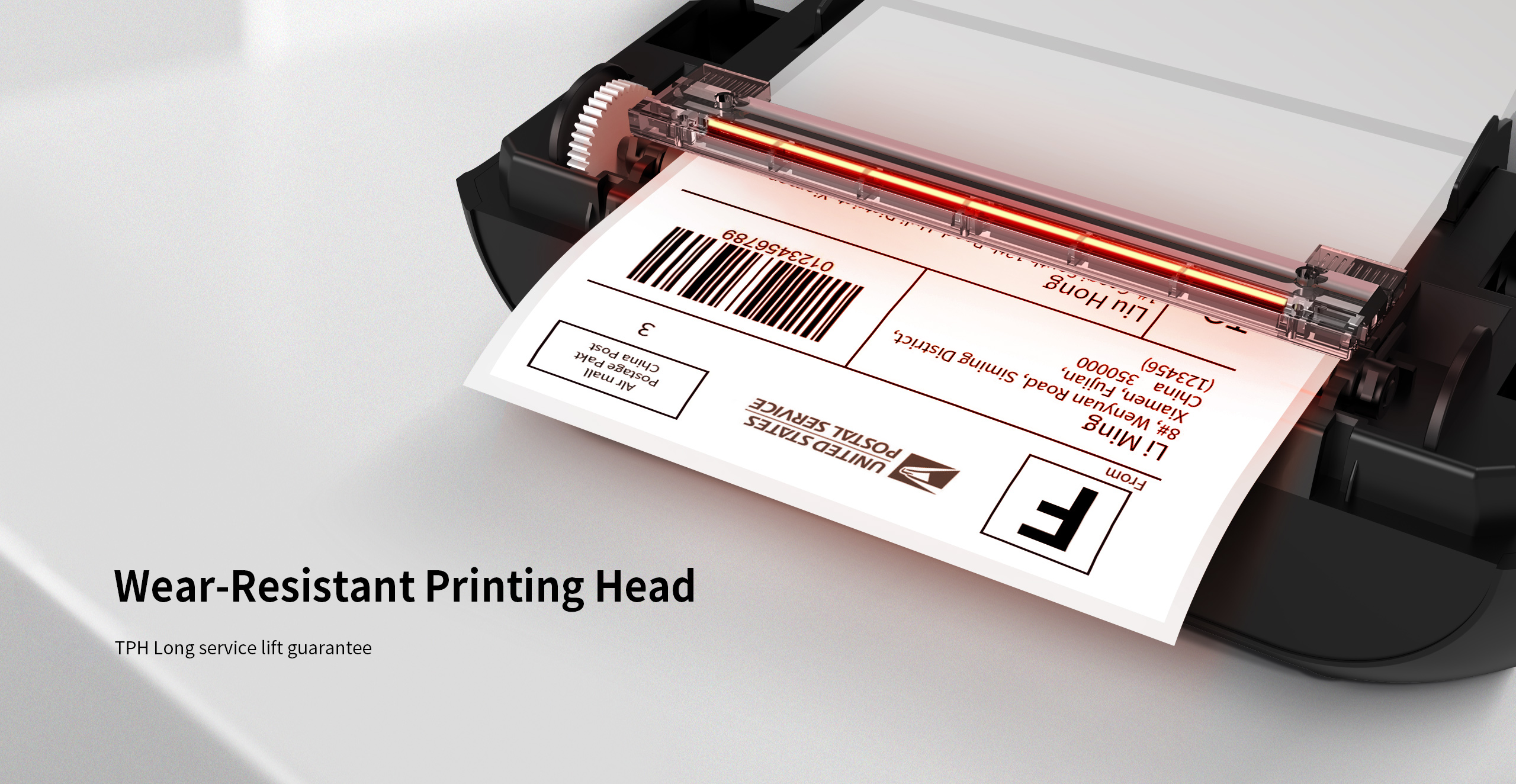

| Reliability | TPH 30KM | |
| Optional Accessories | External roll stand or folding paper box | |
| Agency Approvals | CCC,CE,FCC |
