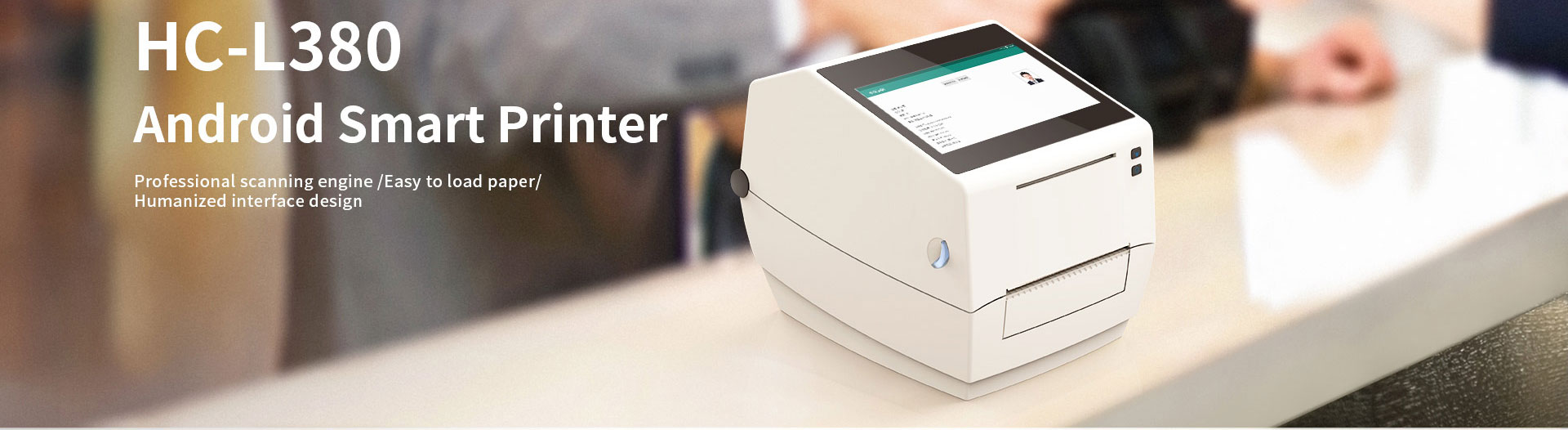

• User-friendly operation interface
• Android operating system
• Professional 2D scanning engine
• Optional built-in battery，enhancing battery performance

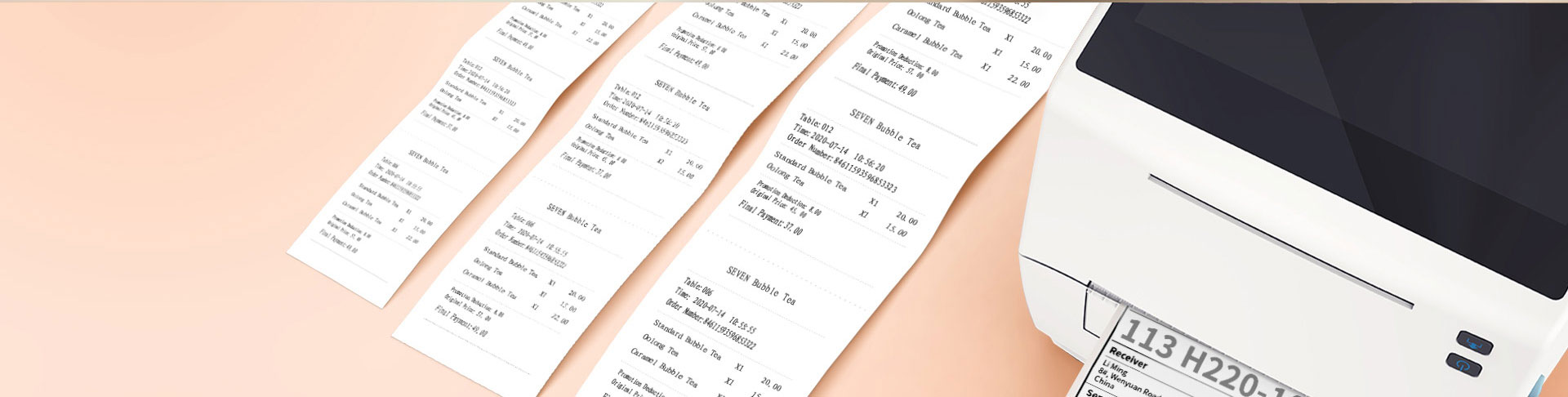

• Super-durable print head, fully support label and receipt printing
，
| Item | Parameter | ||

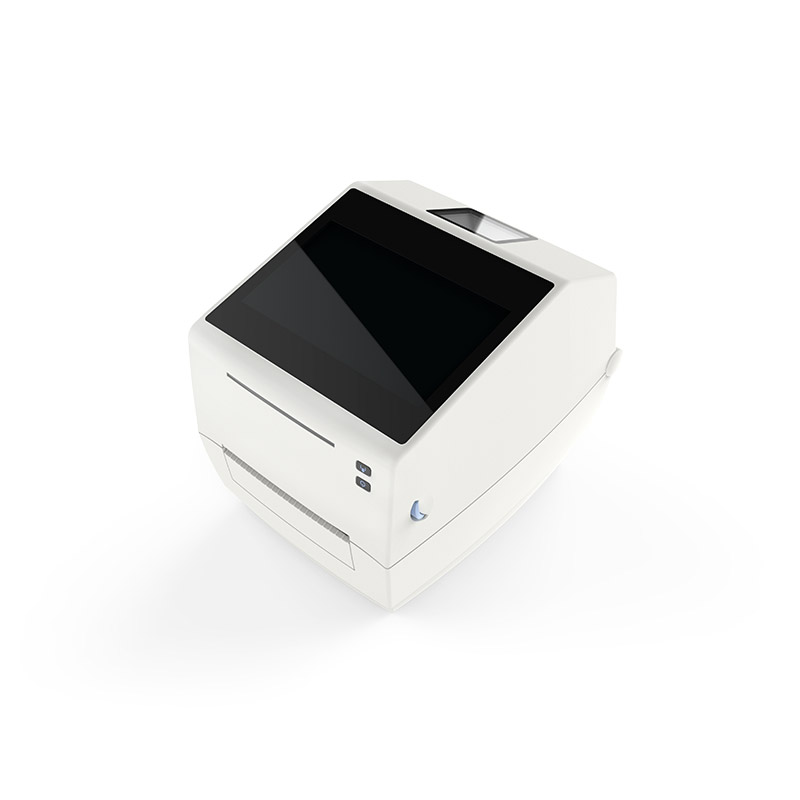

| Structure | All-in-one design, easy paper loading | ||
| Print Method | Thermal | ||
| Maximum Print Width | 108 mm (203 dpi) | ||
| Resolution | STD 203 dpi (8 dots/mm) | ||
| Print Speed | 102mm/s | ||
| Print Processor | 32-bit RISC processor | ||
| RAM | 2MB | ||
| Flash | 4MB | ||
| Fonts | Single byte character: 12x24, 9x17 supports 90°, 180°, 270°rotation and 8 times magnification. | ||
| Double byte character: 16x16, 24x24, Traditional | |||
| Chinese (BIG-5), Simplified Chinese(GB18030), Japanese S-JIS, Korean KS-X1001 optional. | |||
| Simulation Language | TSPL | ||
| Graphic | Support dot matrix graphic commands | ||
| Barcode | 1D:UPC-A, UPC-E, EAN8, EAN13, CODE39, ITF, CODEBAR, CODE128, CODE93 | ||
| 2D:PDF417, QR code | |||

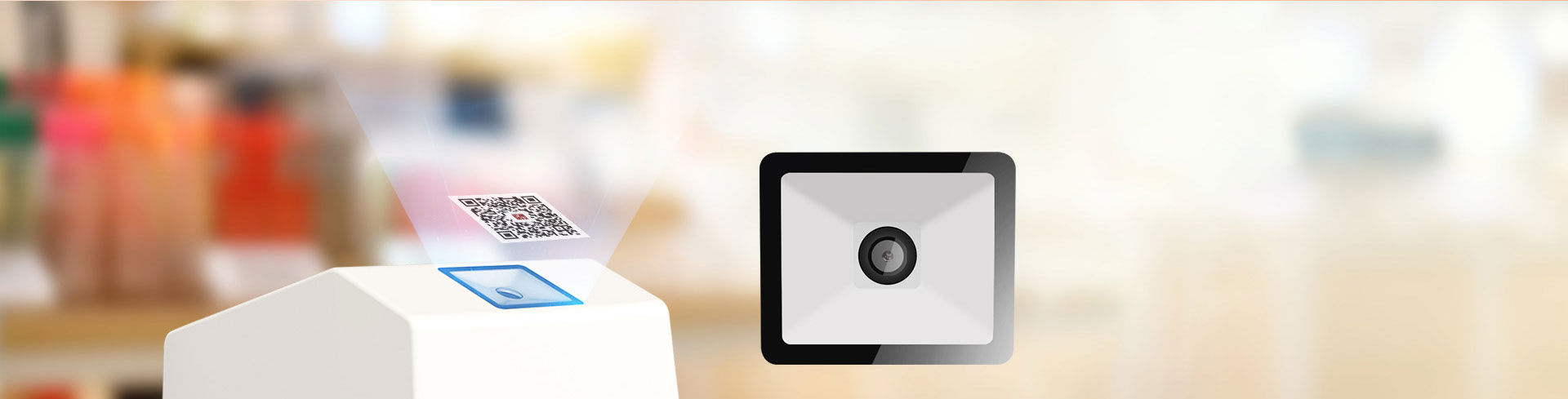

| Scanner | 2D Code Scanner | Supported bar code type is same as above | |
| Contact Code Depth of Field | 0-10cm | ||
| Scanning Speed | Scanning time≤0.5s | ||
| Scanning Method | Automatic induction scanning, support fill light, do not start scanning when there is no object near | ||
| Paper Roll Capacity | Roll width: 20 to 118 mm adjustable | ||
| Roll diameter: 120mm maximum | |||
| Paper Thickness | 50~160µm | ||
| Electronic Lock (Optional) | Optional installation, the system controls the electronic lock of the paper storage and the upper cover of the paper storage can be opened manually after unlocking | ||
| Sensor | Cover opening detection, out-of-paper detection, paper near end detection, black mark detection, TPH over temperature detection, gap detection | ||
| Supplies Support | Folded or continuous paper, die cut or continuous label paper | ||

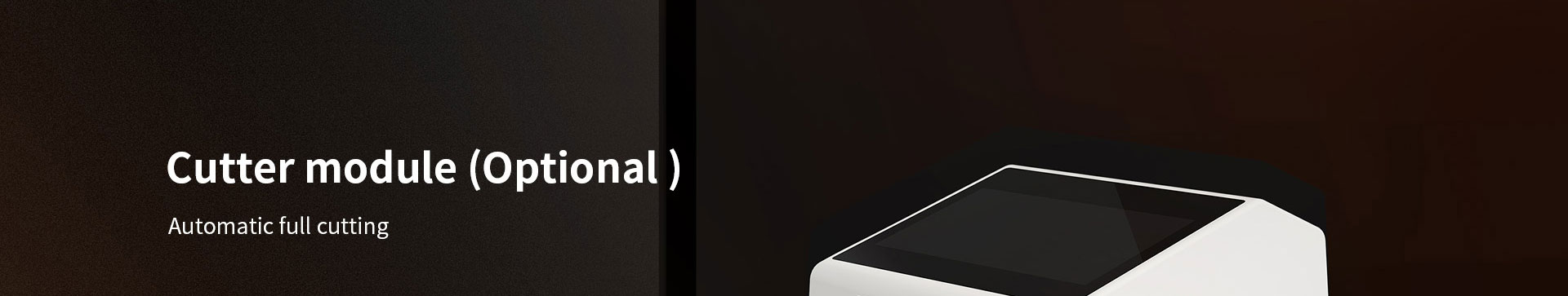

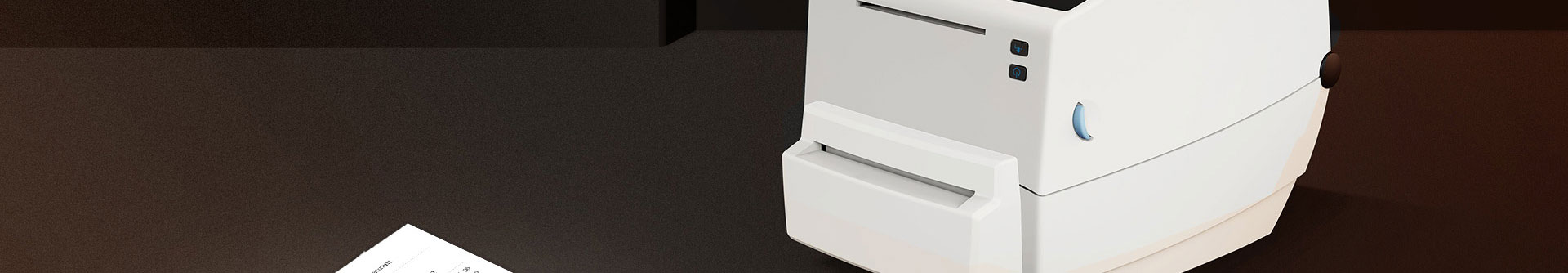

| Cutter Module(Optional) | Optional installation, automatic full cutting | ||
| Buzzer | Built-in buzzer | ||
| Update Mode | Provide OTA update software | ||

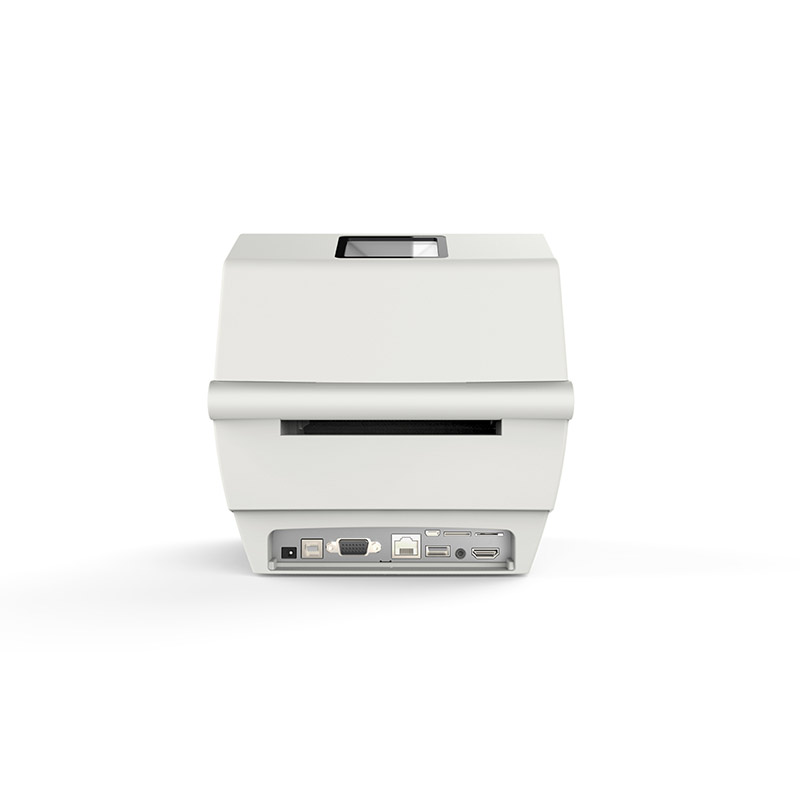

| I/O Port | USB port: 1 x typeA USB; 1 x MicroUSB; | ||
| 1x type B USB External TF card expansion: up to 64GB; | |||
| External audio interface: standard 3.5mm headphone output / microphone interface; | |||
| SIM slot: MicroSIM; | |||
| Main Control | CPU | Qualcomm snapdragon 210 (msm8909) Quad-core ARM cortex-a7, main frequency 1.1GHz | |
| RAM | 1GB | ||
| Flash | 8GB eMMC | ||
| Operation system | Android7.1 | ||
| Communication | Bluetooth 4.0 WiFi / 4G all Netcom | ||
| Color | White | ||

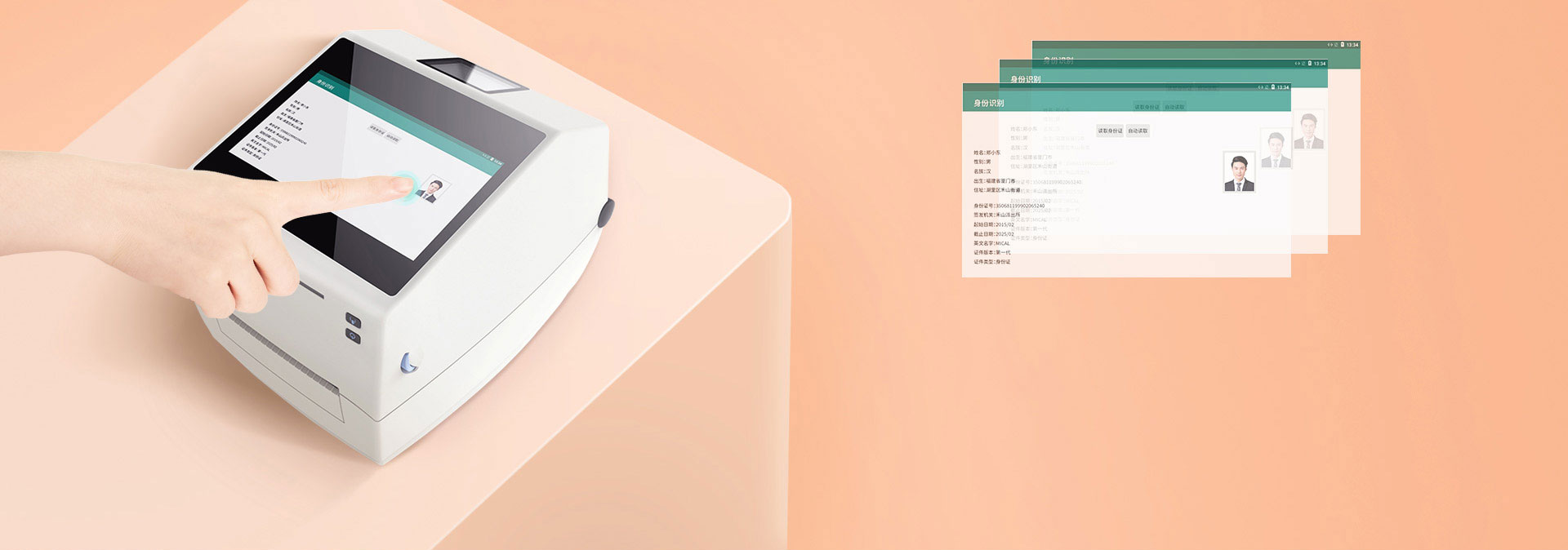

| Display | 7-inch TFT LCD, resolution 1024x600 capacitive touch screen, G+G | ||
| User Interface | Feed button/Power button LED indicator, error indicator, paper detection indicator | ||
| Power Adapter | Input: AC 110~240V, 50/60Hz | ||
| Output: DC 24V,2.5A | |||
| Battery Charging (Optional) | Optional built-in battery, 1900mAh lithium battery, standby for 8 hours, supporting 300 pieces of thermal paper printing | ||
| Environmental Requirements | Operation temperature: 0℃~45℃ | ||
| Operation humidity: 15% rh-85% RH | |||
| Storage temperature: - 40℃~+55℃ | |||
| Storage humidity: ≤ 93% RH (40℃) | |||
| Atmospheric pressure: 86kpa-106kpa | |||
| Electrostatic Requirements | Contact discharge requirement: meet ± 6kV Air discharge requirement: meet ± 10KV | ||
| Protection Class | IP42 | ||
| Dimension | 239mm*198mm*198mm | ||
| Certification | RoHS/CCC | ||
