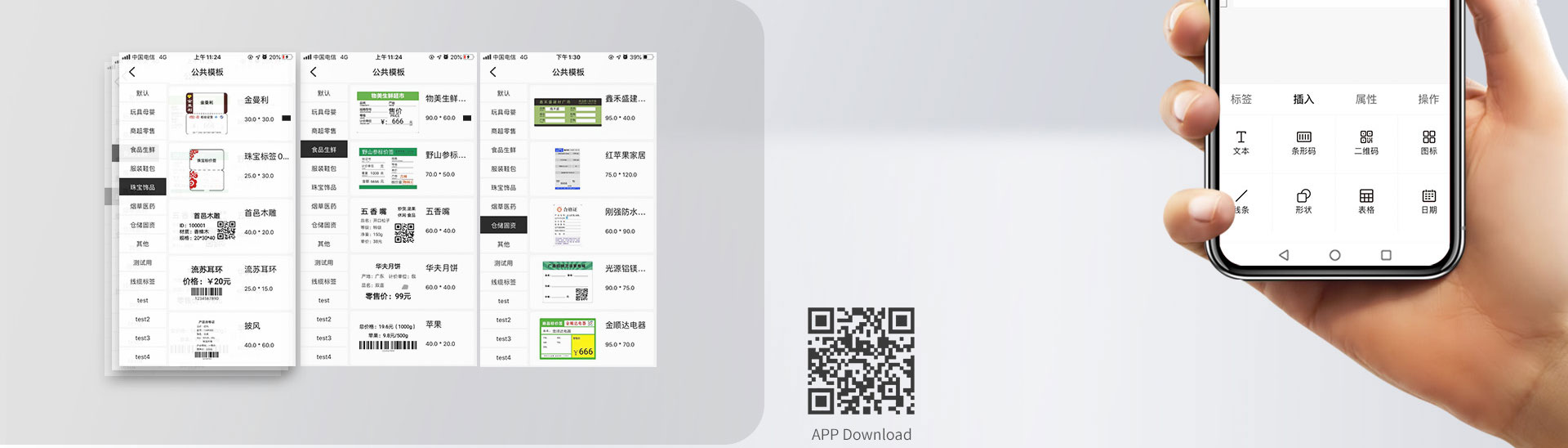

• Support Hanma Application.
• 5 rolls can be printed once fully charged (print rate 20%).

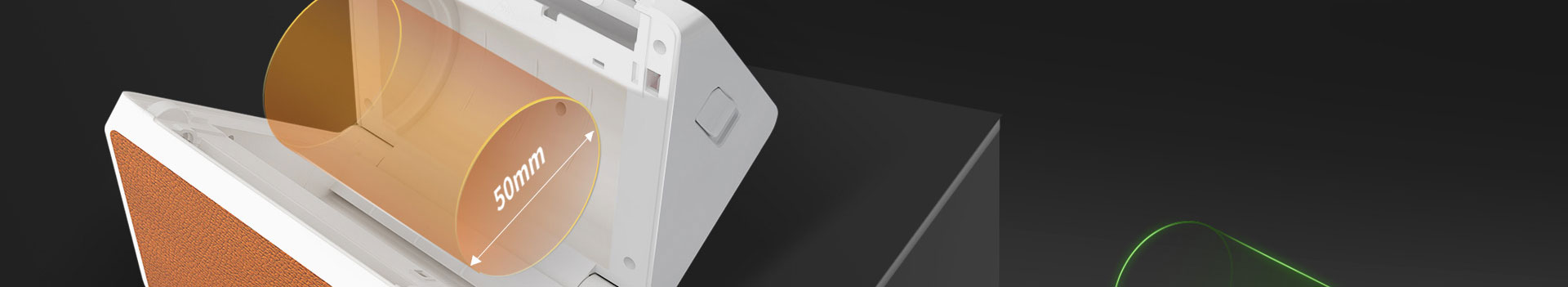

• Support rolls up to 50mm O.D.
• HM-T360 is applicable for the paper roll of 30 to 80mm.

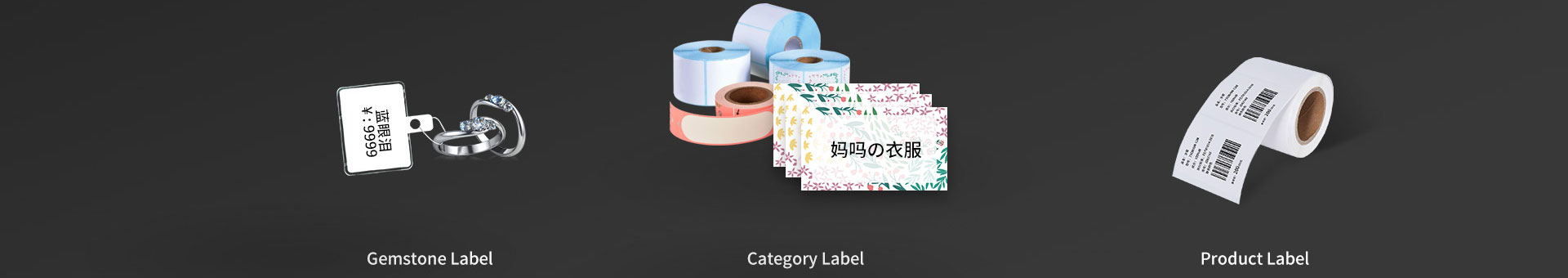

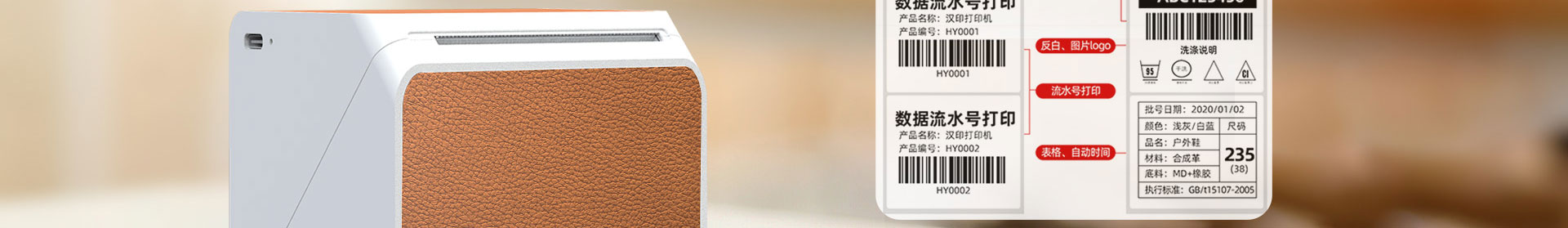

• Support black mark paper roll, jewelry label and shelf label.

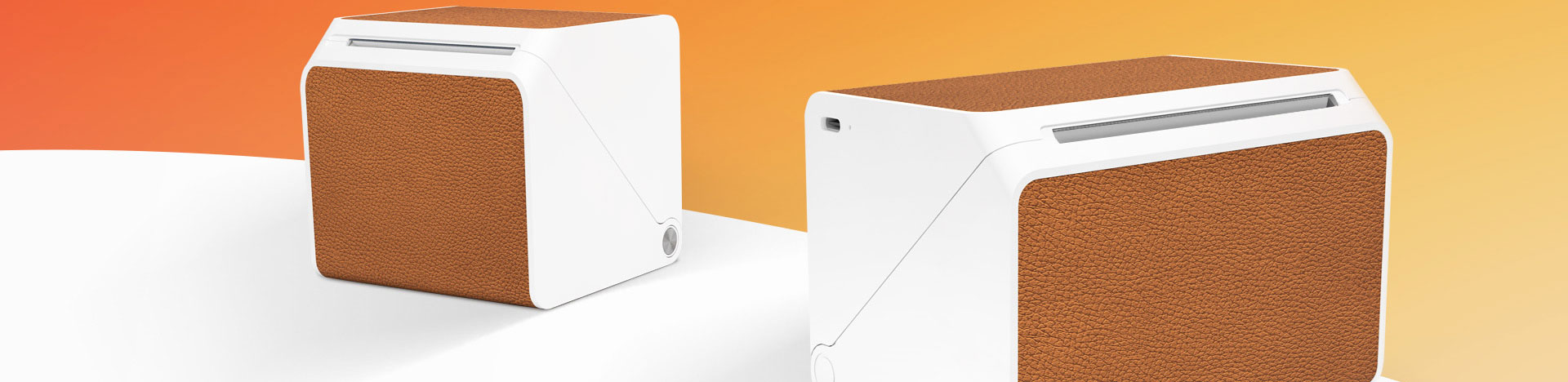

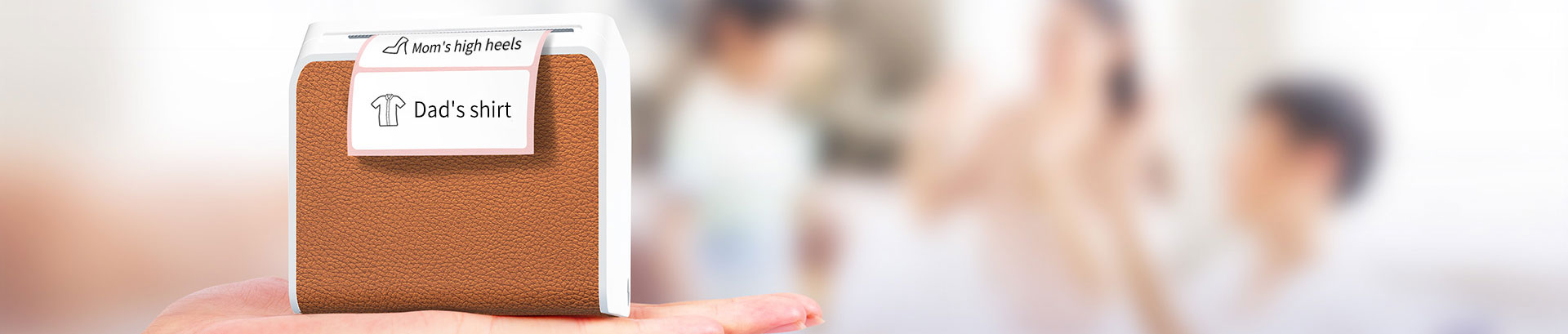

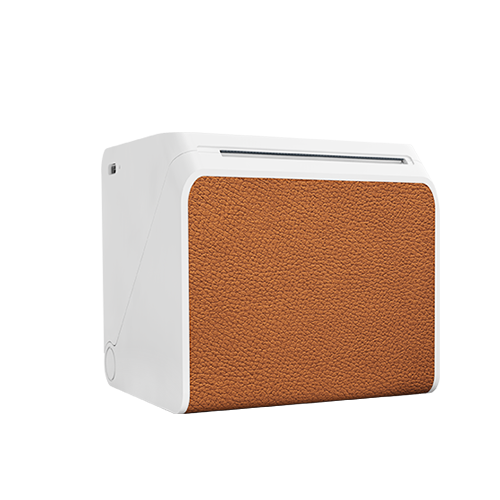

• Compact and light, printing labels anytime anywhere.
，
| Model | HM-T260 | HM-T360 | |
| Print Specifications | Print Method | Direct thermal | |
| Resolution | 300 dpi (12dots/mm) | ||
| Print Speed | 40mm/s | ||
| Print Width | 2’’(Max.54mm) | 3’’(Max.72mm) | |
| Emulation | Hanma print Protocol | ||
| Print Media | Media Type | Thermal label | |
| Jewelry label paper, Asset management label (Cable) | |||
| Linerless paper | |||
| Media Width | 20 to 58mm | 30 to 80mm | |
| Paper Container | Max. 50mm | ||
| Capacity | |||
| Paper Outlet Direction | Upward | ||
| Communication Interface | Standard | Bluetooth | Bluetooth,USB Type-C |
| Sensor | Dimensions | Black mark sensor, gap sensor, out-of-paper sensor, battery voltage sensor,cover open sensor, TPH over temperature sensor | |
| Optional | None | ||
| Hardware Configuration | CPU | ARM Cortex-M4 | |
| RAM | 2 MB | ||
| Flash | 768 KB | ||
| Battery | 3.7V/2600mAh Lion Battery | 7.4V/1000mAh Lion Battery | |
| Electrical Parameters | Input | AC100~240V, 50/60 Hz | |
| Output | 5N/1A | ||
| Software | Driver/Utility Tool | V/A | Windows 7/8/10 Windows Server 2008/2012/2016 |
| Reliability | TPH Life | 30km | |
| Drop Height | 1.5m | ||
| Environmental Parameters | Operation | 0~40℃, relative humidity 10~85%, non condensing | |
| Storage | -10~60℃, relative humidity 10~90%, non condensing | ||
| Physical Parameters | Dimension | 85×80×80mm | 112×84×78mm |
| Weight | 288.5g | 372.5g | |
| Certification | CCC, SRRC | ||
