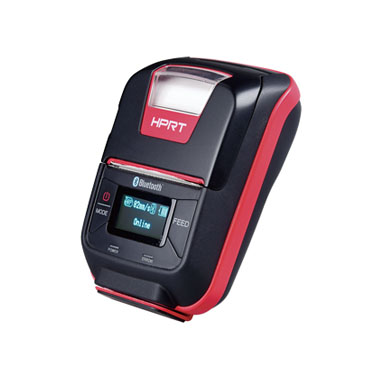

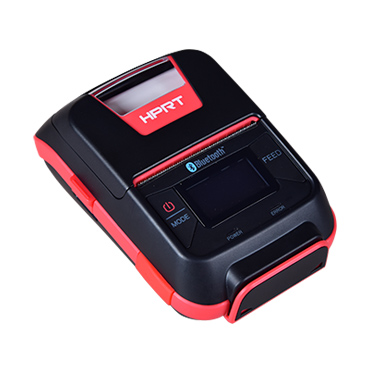

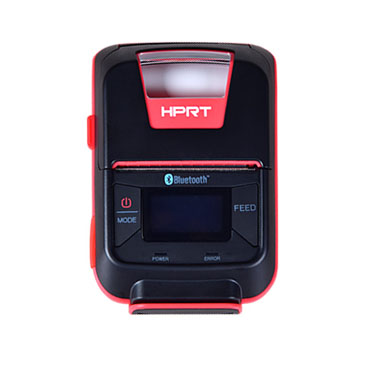

• Pocket size, Extremely light and mobile

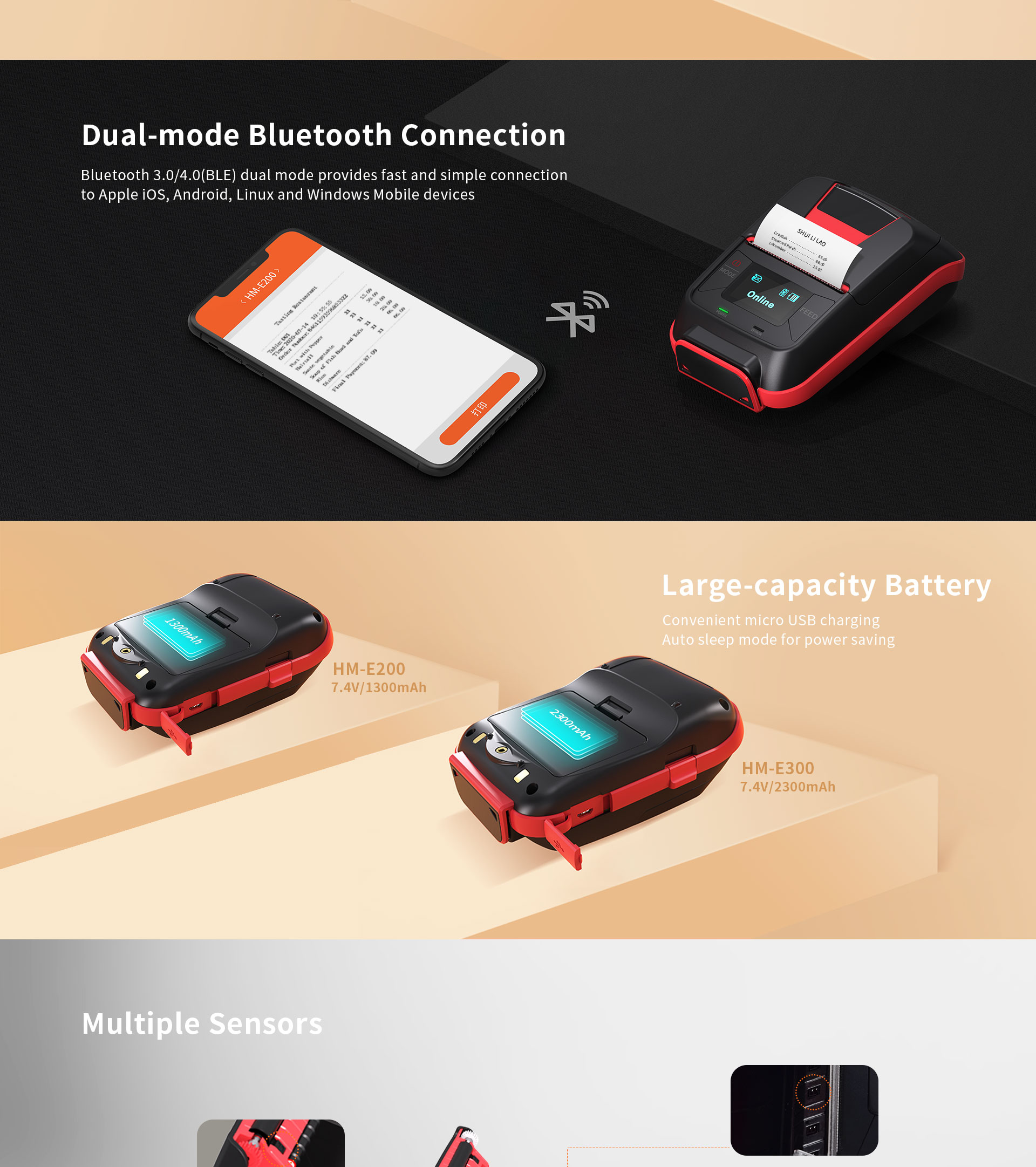

• Support Bluetooth Ver3.0/4.0[BLE] Dual Mode
• Support text and graphic printing

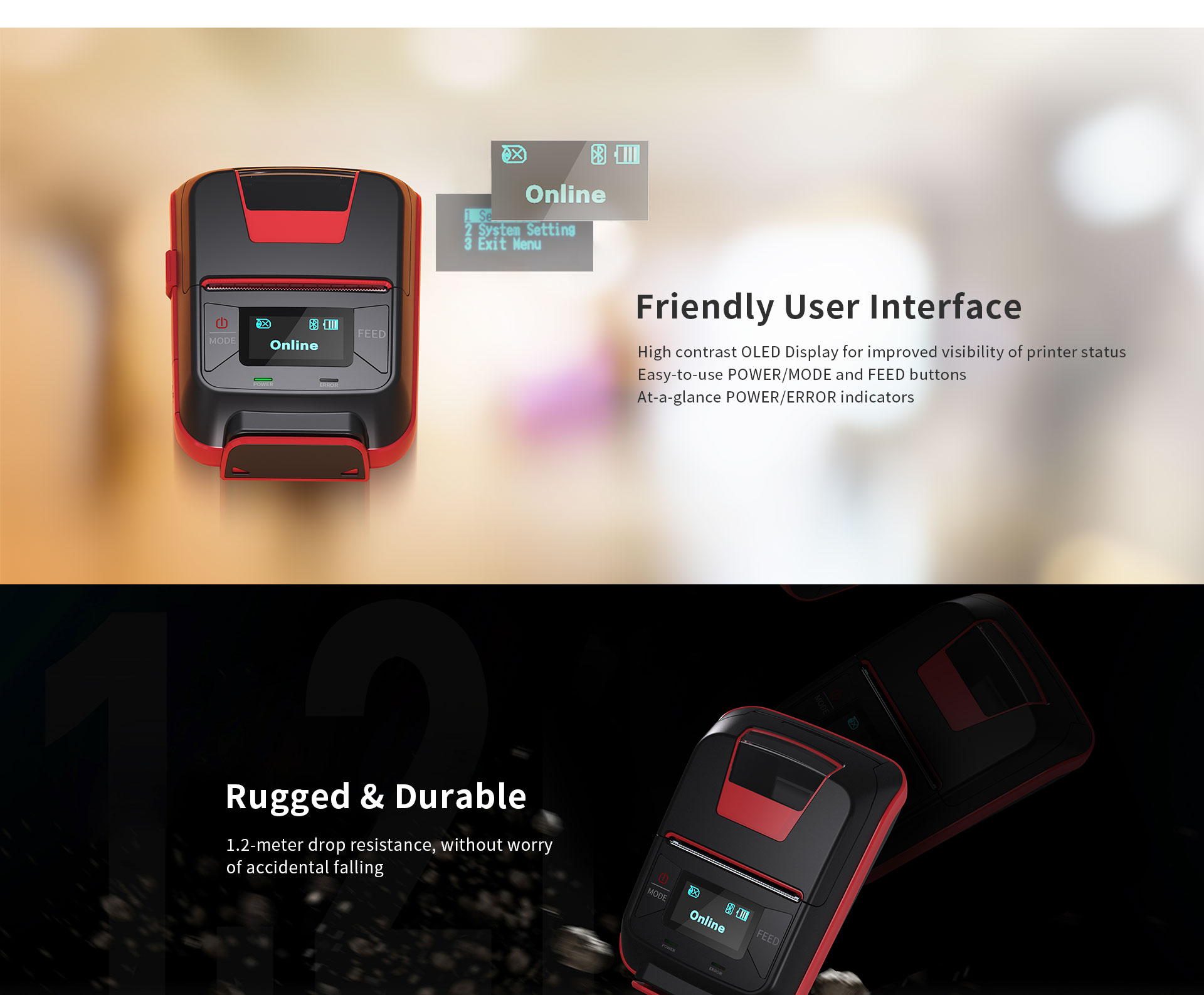

• Support Graphic LCD(128X64 dots) with Blue Backlight
• Very silent printing thru direct thermal printing method
• Support Secure Magnetic Stripe Reader <Model with Card Reader>
*AES or 3DES encryption
*DUKPT Key Management

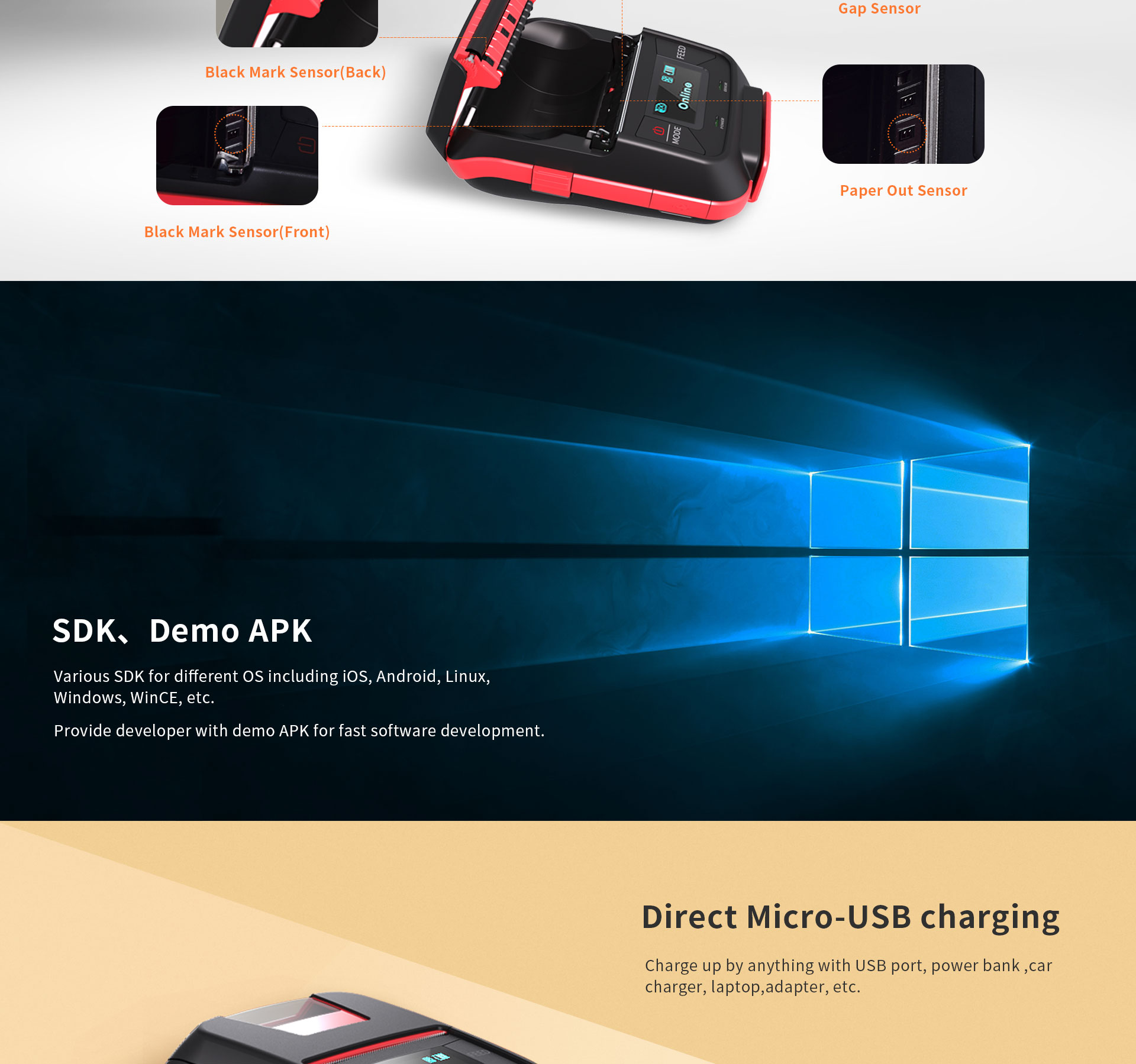

• Printer cover open sensor, Paper-out sensor, Black mark sensor, Label gap detection
，
| Printing | Printing Method | Direct Thermal |
| Resolution | 203 dpi (8 dots/mm) | |
| Printing Speed | Max.100mm/s | |
| Printing Width | 48 mm | |
| Interface | USB, Bluetooth 3.0/4.0 | |
| Power Saving | Sleep Mode | YES |
| Memory | RAM | 64 KB |
| Flash | 4 MB | |
| Programming Language | ESC/POS | |
| Fonts | Alphanumeric; Simplified Chinese, Traditional Chinese; 42 International Character Sets | |
| Barcode | 1D | UPC-A, UPC-E, EAN-8, EAN-13, CODE 39, ITF, CODEBAR, CODE 128, CODE 93 |
| 2D | QR Code, PDF417 | |
| Graphics | Support bitmap printing with different density and user defined bitmap printing | |
| Interface | Standard | MicroUSB, Bluetooth 3.0/4.0 |
| Option | N/A | |
| Sensors | Standard | Paper out Detector, Cover open Detector, Black mark Detector, Gap Detector |
| Option | N/A | |
| LED indicator | Power | Green |
| Error | Red | |
| Power | Input | AC 100 ~ 240V, 50/60Hz |
| Output | DC 5V, 1A | |
| Battery | 7.4V rechargeable Li-polymer battery, 1300mAh | |
| Paper | Type | Continuous paper with or with black mark, Linerless label, Roll-fed Label |
| Width | 58 mm | |
| Thickness | 0.053 ~ 0.13 mm | |
Diameter of Paper Roll | Max. Ф40 mm (O.D) | |
| Paper Loading | Easy loading mechanism | |
| Environment | Operating | -5°C ~ 50°C, 25% ~ 85% R.H, no-condensing |
| Storage | -30°C ~ 60°C, 5%～95% R.H, no-condensing | |

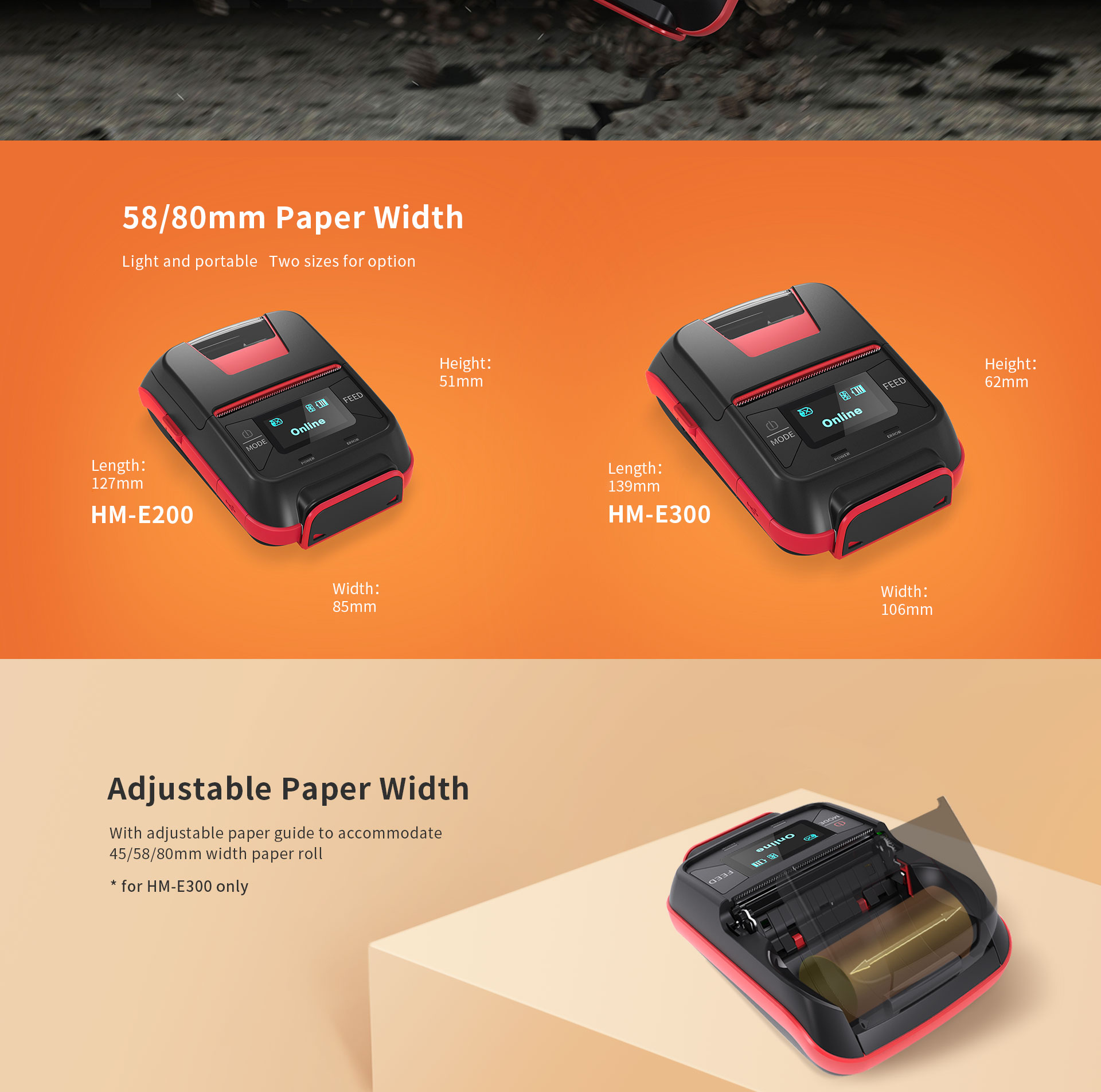

| Physical Characteristics | Dimension | 126.9(L)×84.4(W)×50.6(H) mm |
| Weight | 0.234 kg | |

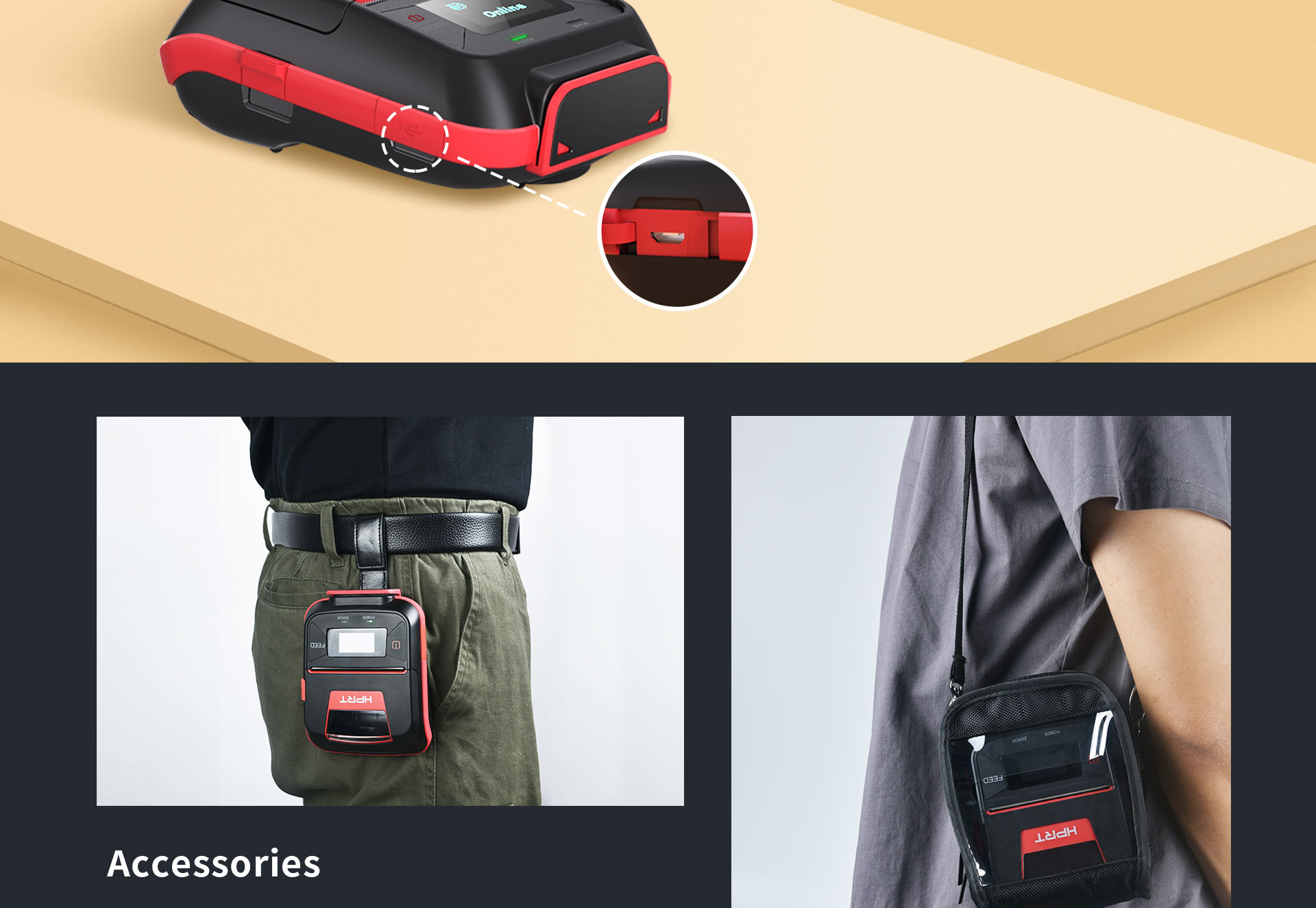

| Options and Accessories | USB Cable, Belt Clip, Docking Cradle, Paper Roll, Quick Start Guide, CD | |
| Software | Driver | HPRT Driver：Windows XP，Vista,7，8，10.Linux,Mac |
| SDK | WinCE, Win Mobile, Android, iOS | |
