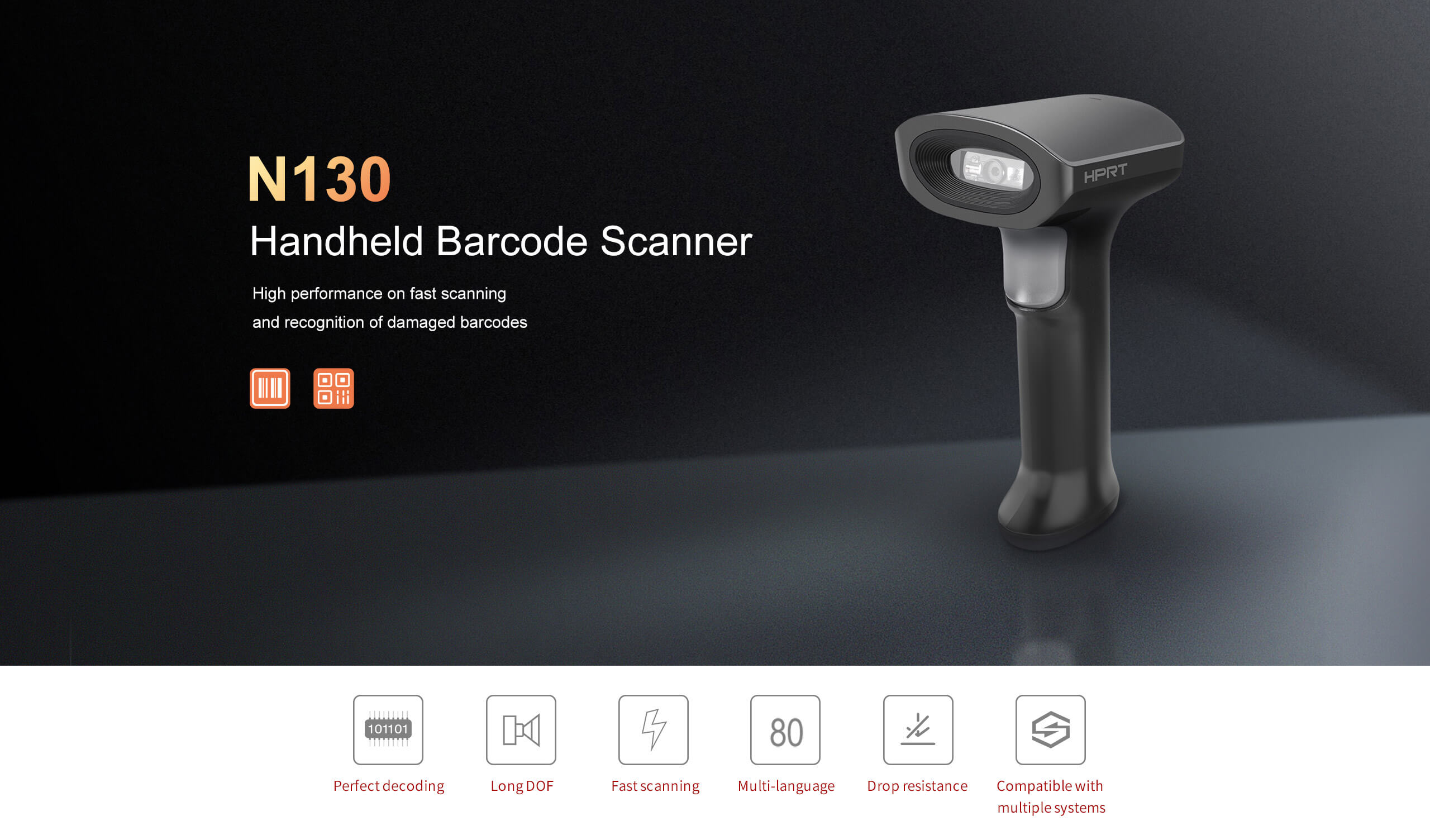

• High performance with hardware independent decoding .
• An extended DOF, apply to different reading distances.
• Highly accurate, fast reading on barcodes, even on damaged and poor contrast barcodes.
• Support kinds of keyboard languages.

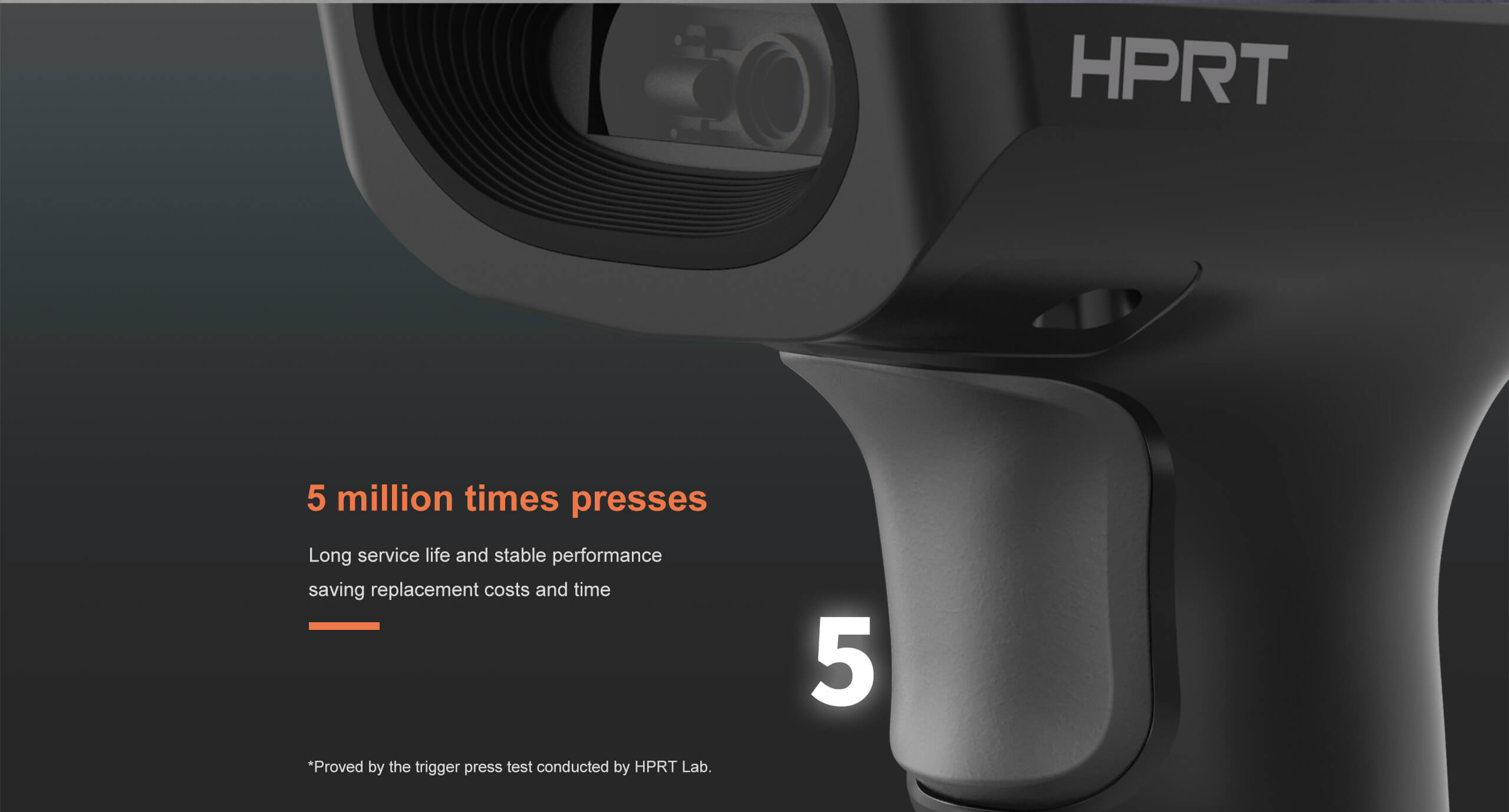

• Highly integrated structure, best-in-class durability.
• Fully compatible with multiple systems.

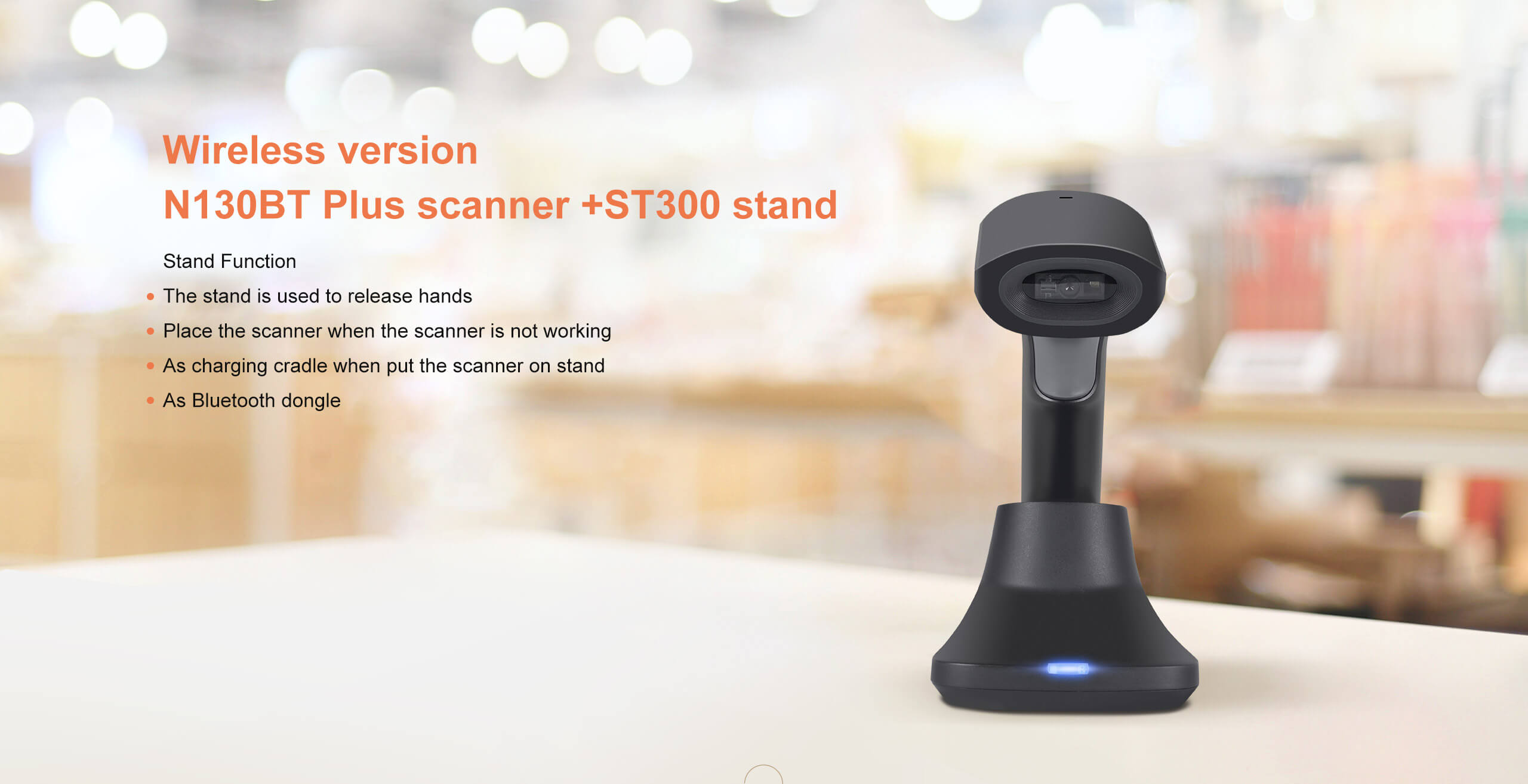

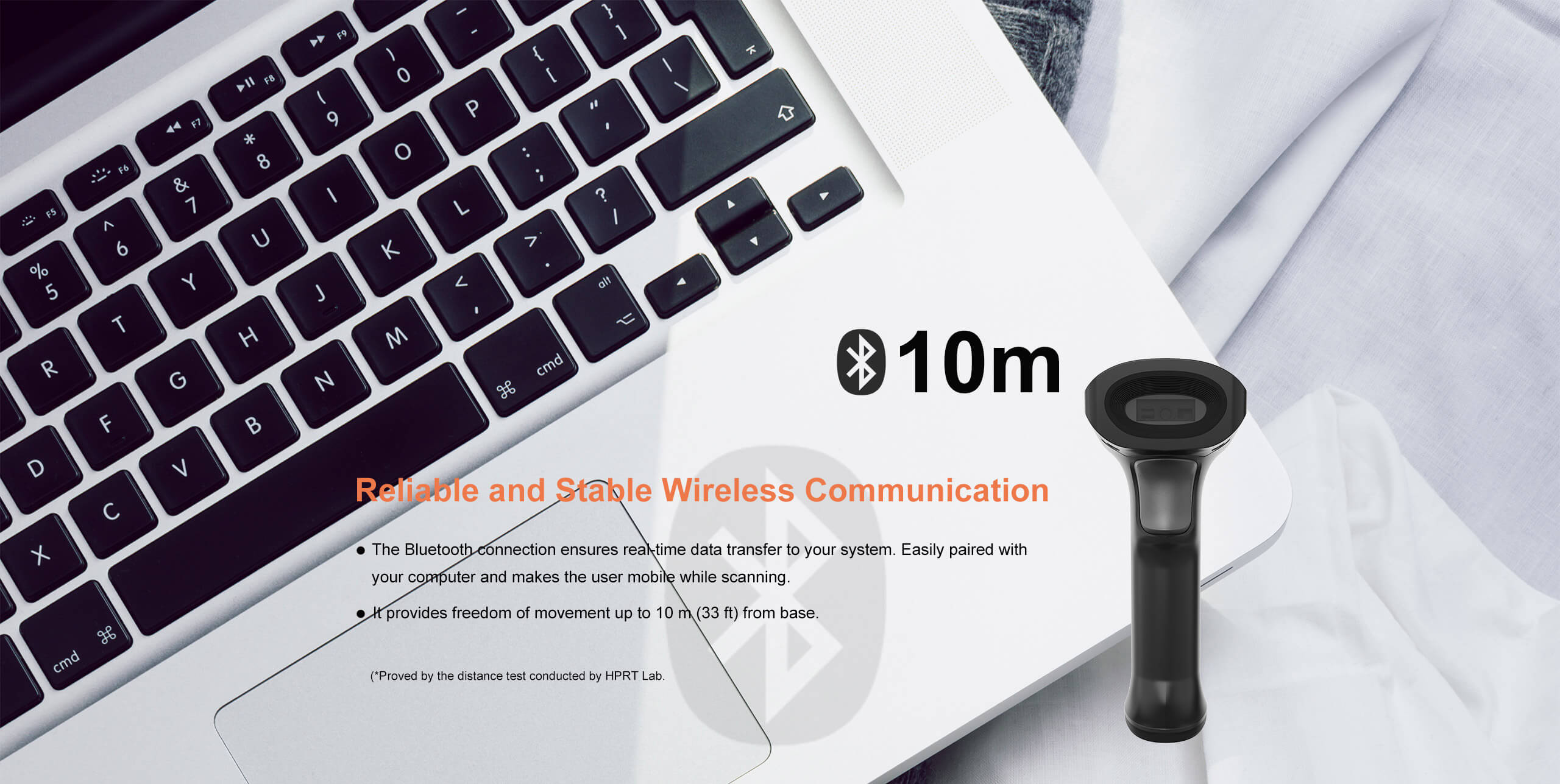

• Bluetooth option--N130BT.
，
.jpg)
.jpg)
.jpg)
.jpg)
| Model | N130 | N130BT |
| Sensor | CMOS | |
| Pixels | 640*480（GS） | |
| Illumination | White light | |
| Aiming | Red light | |
| Symbologies | 2D: PDF417, QR Code, Data Matrix, HanXin, Maxicode ,Postal Codes etc 1 D: Code128, UCC/EAN-1 28, AlM128, EAN-8, EAN-1 3, ISBN/ISSN, UPC-E,UPCA, Interleaved 2 of 5, ITF-6, ITF-4, Matrix 2 of5,lndustriaI 25, Standard 25, Code39, Codabar, Code 93, Code11, Plessey, MSI-Plessey, RSS-14. RSS-Limited. RSS-Expand etc. | |
| Recognizing Precision | ≥3mil | |
| Depth of Field | EAN-13：30-300mm QR（20mil）：20-200mm | |
| Field of view | Horizontal: 40°, vertical: 30° | |
| Dimension(mm) | 93*63*166 | |
| Notification | Buzzer,LED light | |
| Weight | 138g | 171g |
| Interface | RJ-45 interface | Type-C interface |
| System Interfaces | RS-232 serial interface USB keyboard USB virtual serial interface" | USB keyboard USB virtual serial interface Bluetooth interface |
| Operating Current | Standby: 50mA Working: 300mA | |
| Operating Voltage | 5VDC±10% | |
| Drop | 1.5m | |
| Environmental Sealing | IP42 | |
| Certifications | CE FCC | |
| Radio Technology | Bluetooth 5.0 | |
| Operating Voltage | 5VDC±10% | 3.7VDC±10% |
| Operating Current | Standby: 50mA; Working: 230mA | Standby: 40mA; Working: 230mA |
