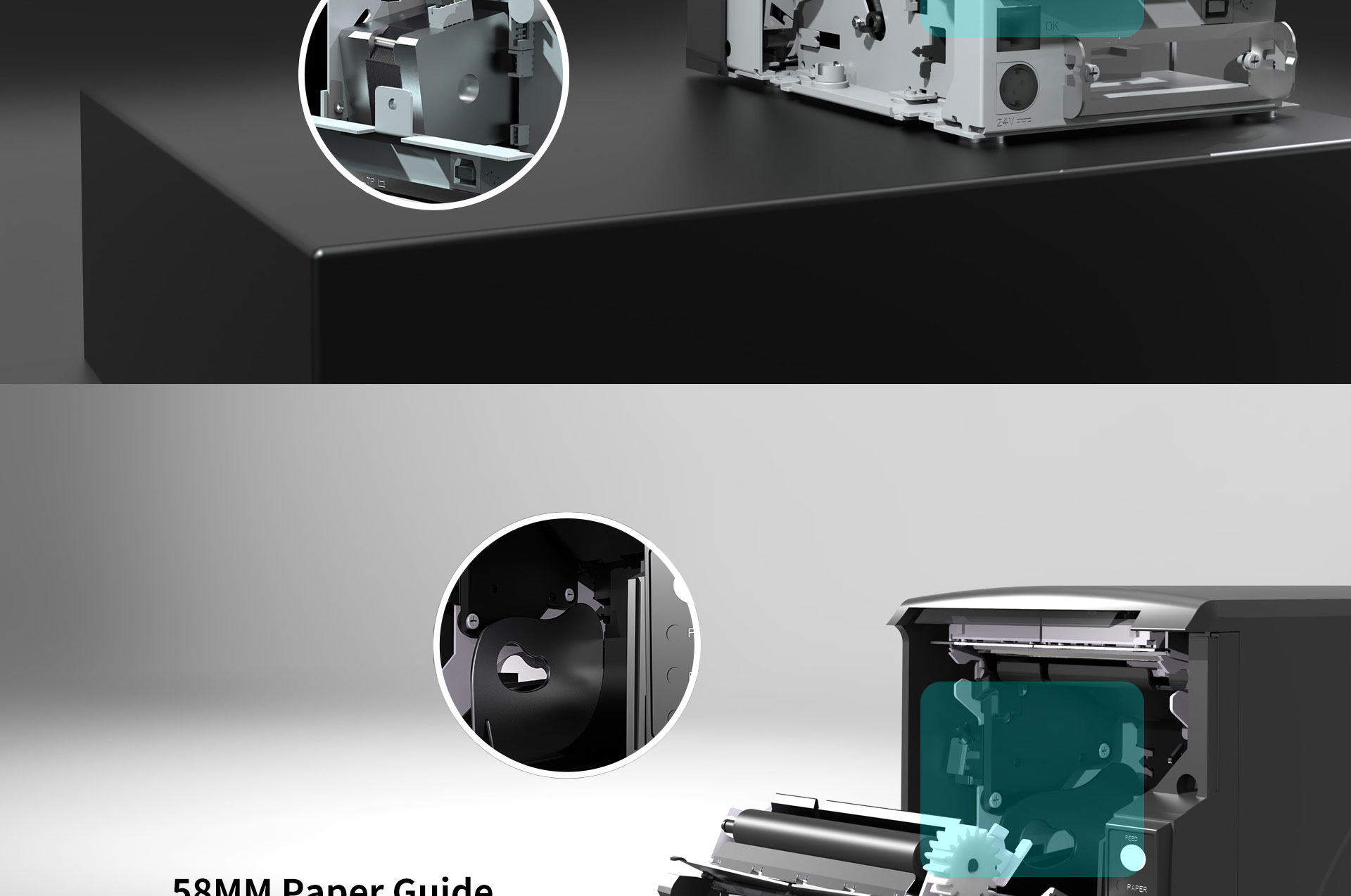

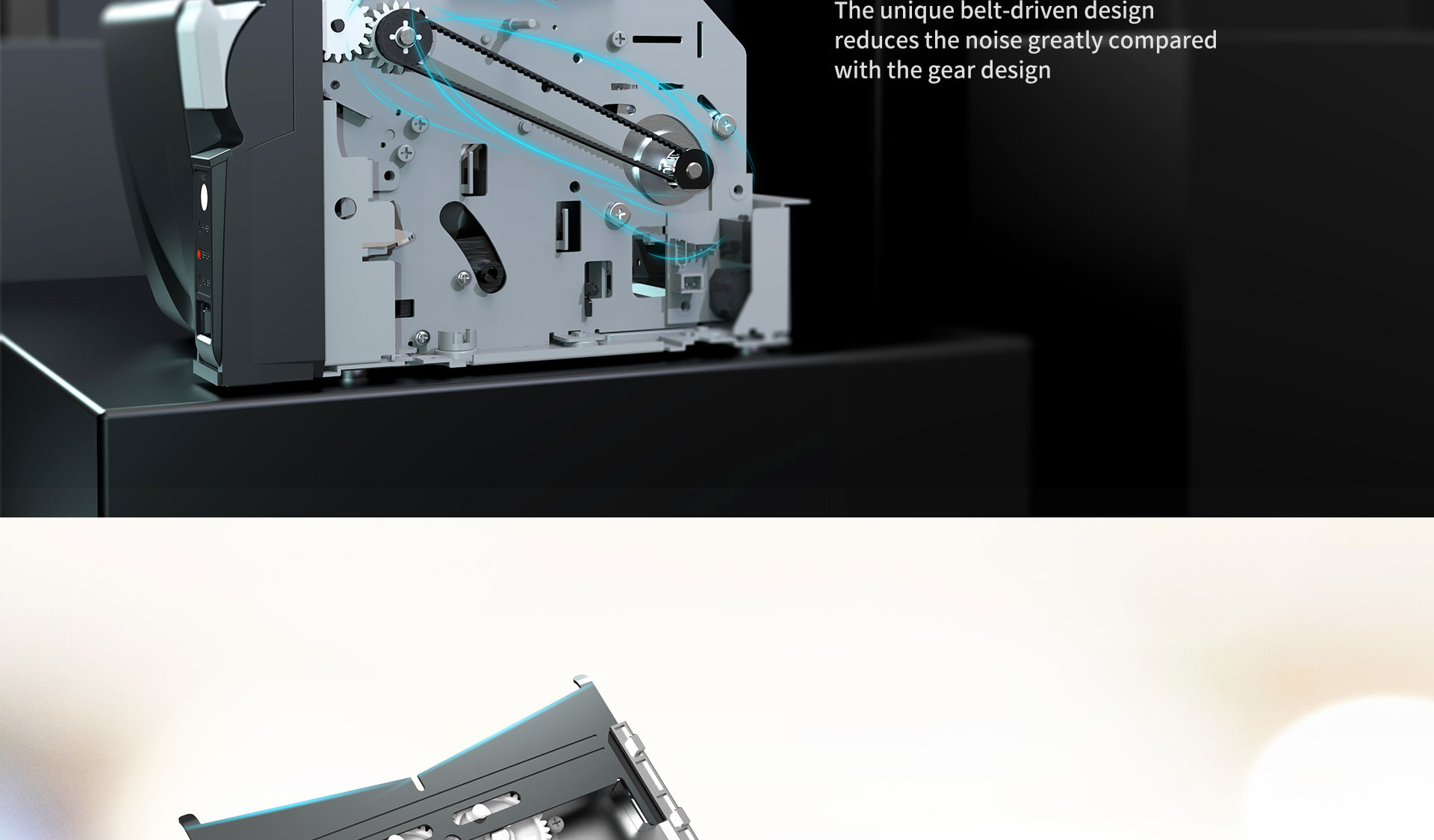

• Industry leading belt-driven design, greatly reduce the printing noise
• High printing speed up to 300mm/s
• Default USB port, with optional RS232, Parallel, Ethernet, BT or Wi-Fi interfaces

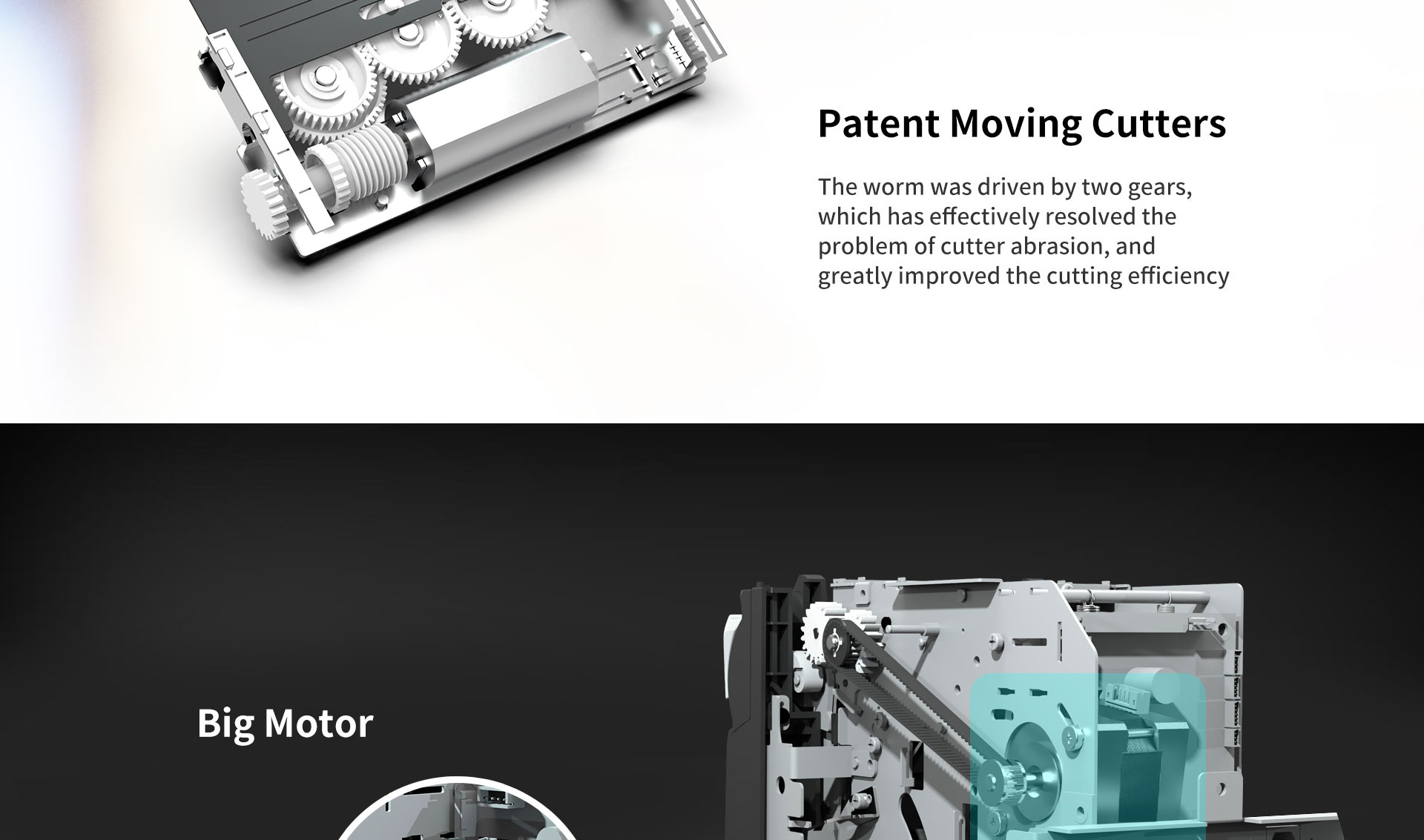

• Cutter jam auto-eliminating design
• Provide Windows, Linux, OPOS driver
• Support page mode printing
• With paper jam detection and paper near end detection

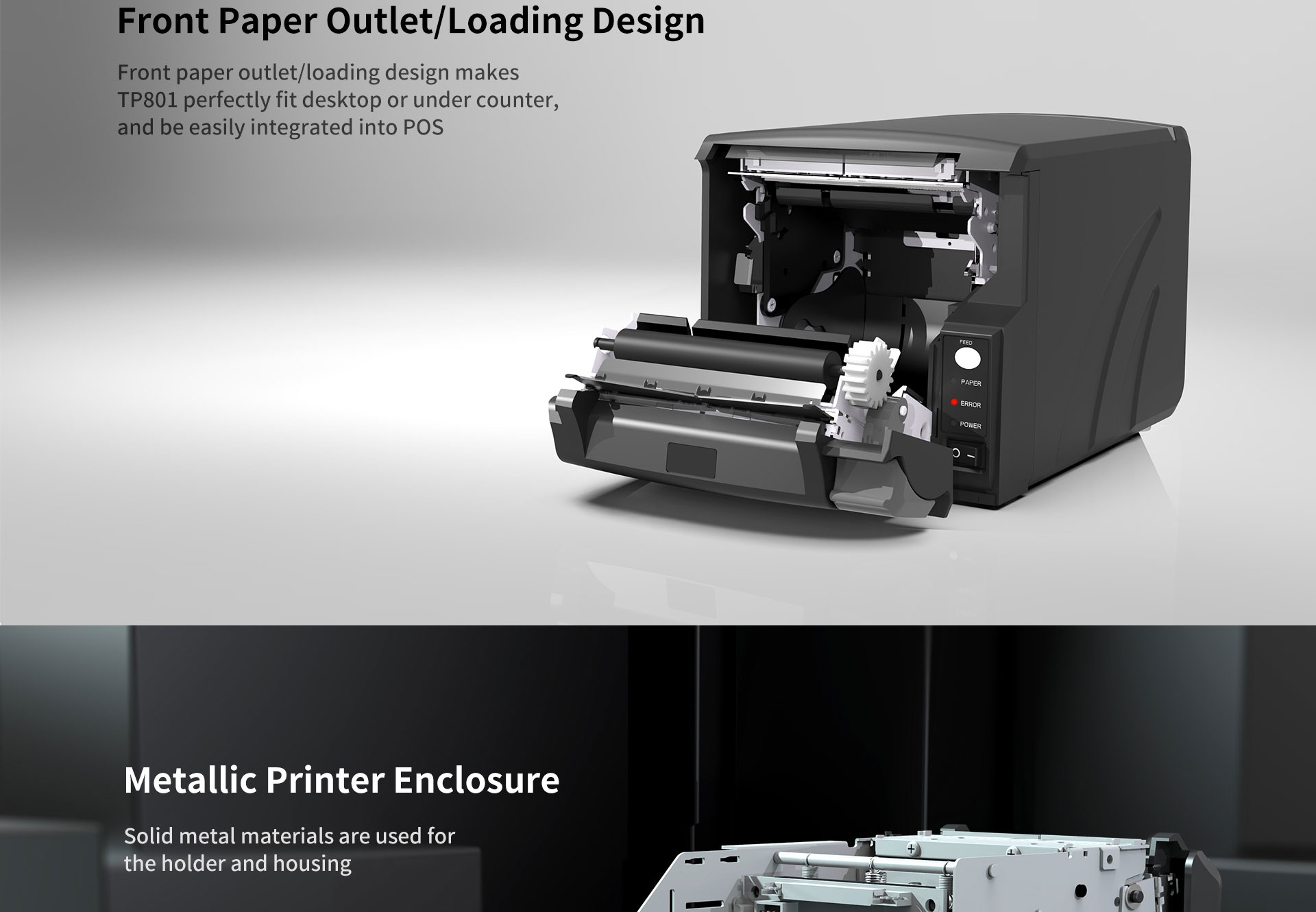

• Space-saving frontal operation design, fit on your cashier desk or under your counter

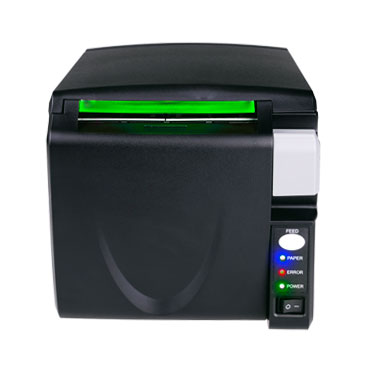

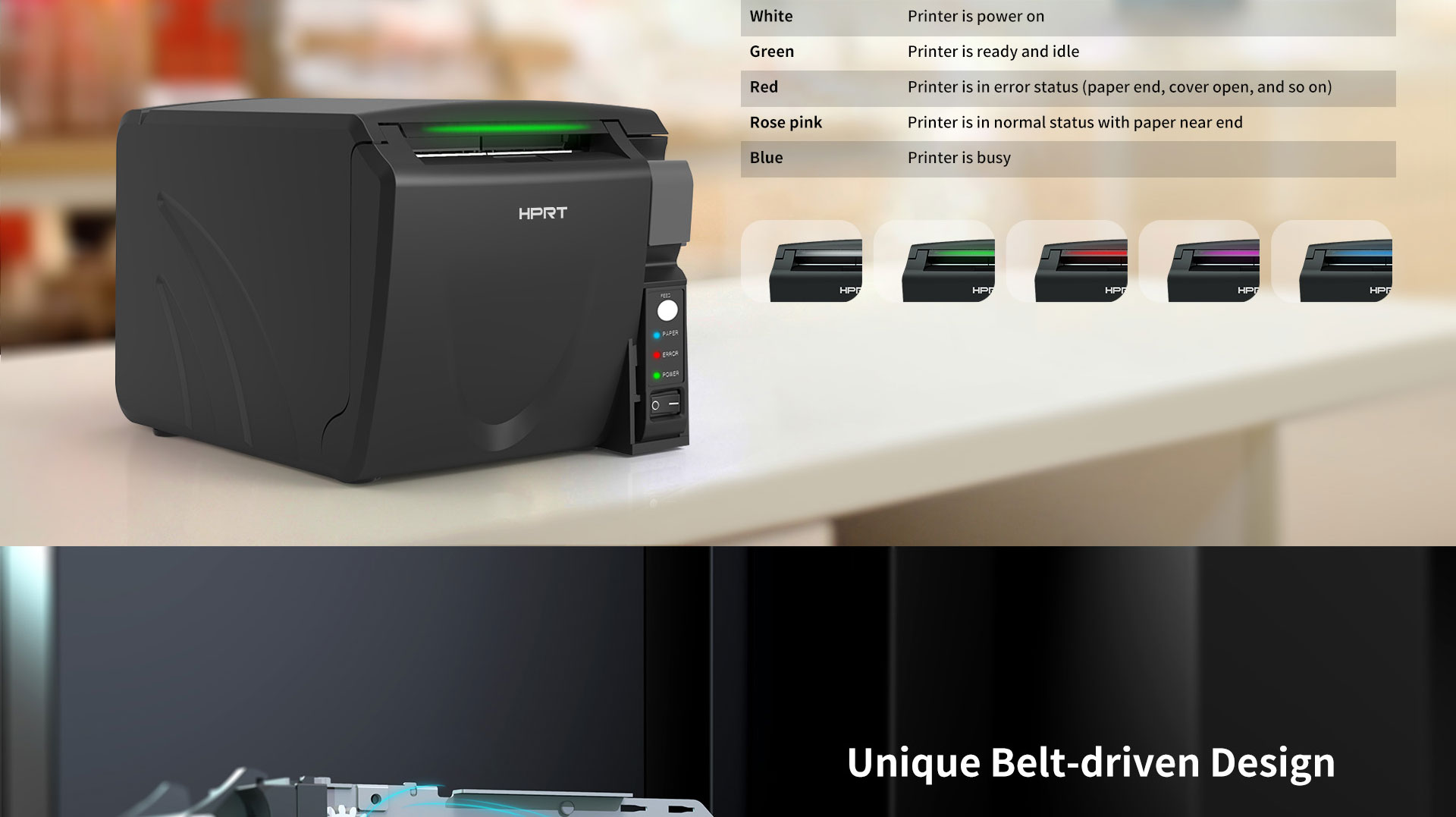

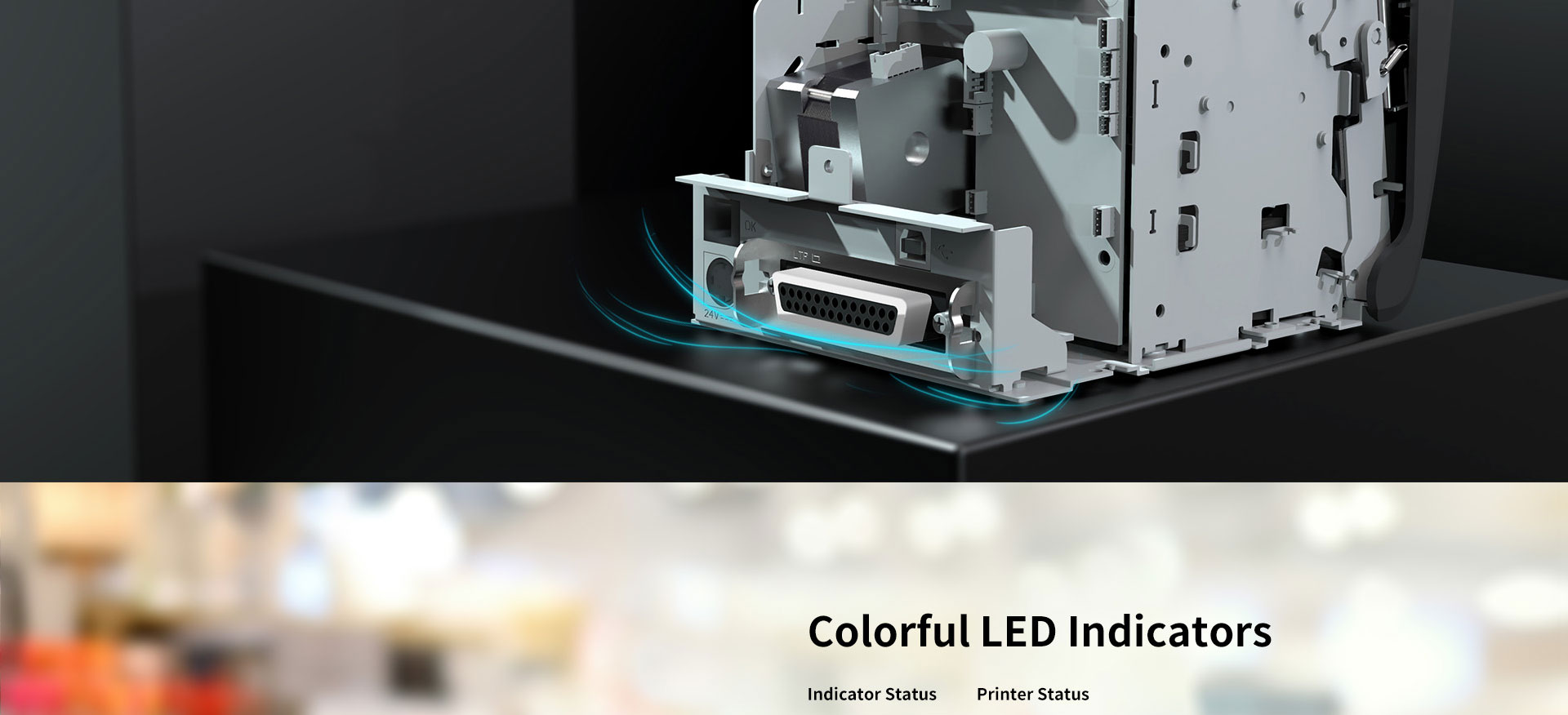

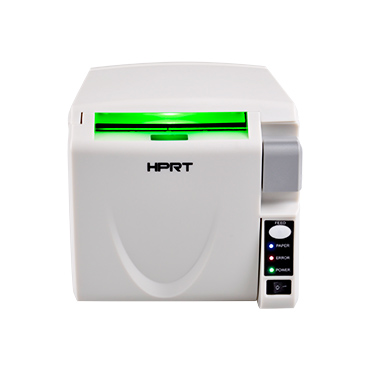

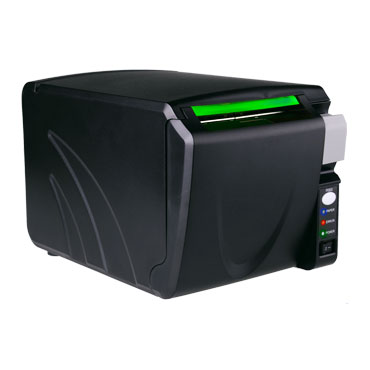

• 5 color LED light tube indicator
，
| Printing | Print Method | Direct Thermal | |
| Resolution | 203 dpi (8 dots/mm) | ||
| Print Speed | Max. 300 mm/s | ||
| Printing Width | Max. 72 mm | ||

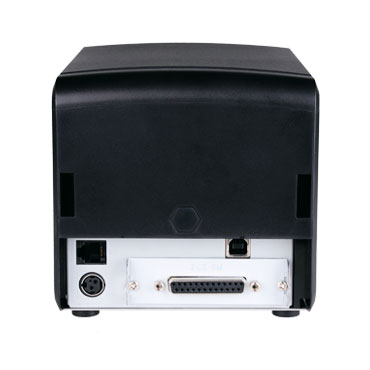

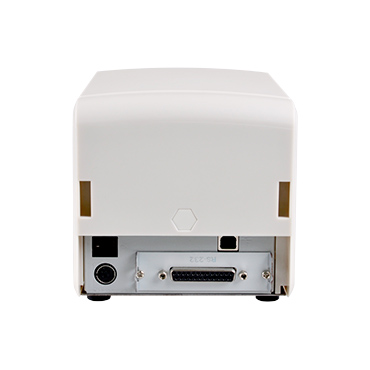

| Interface | Standard | USB Type B, Cashbox | |

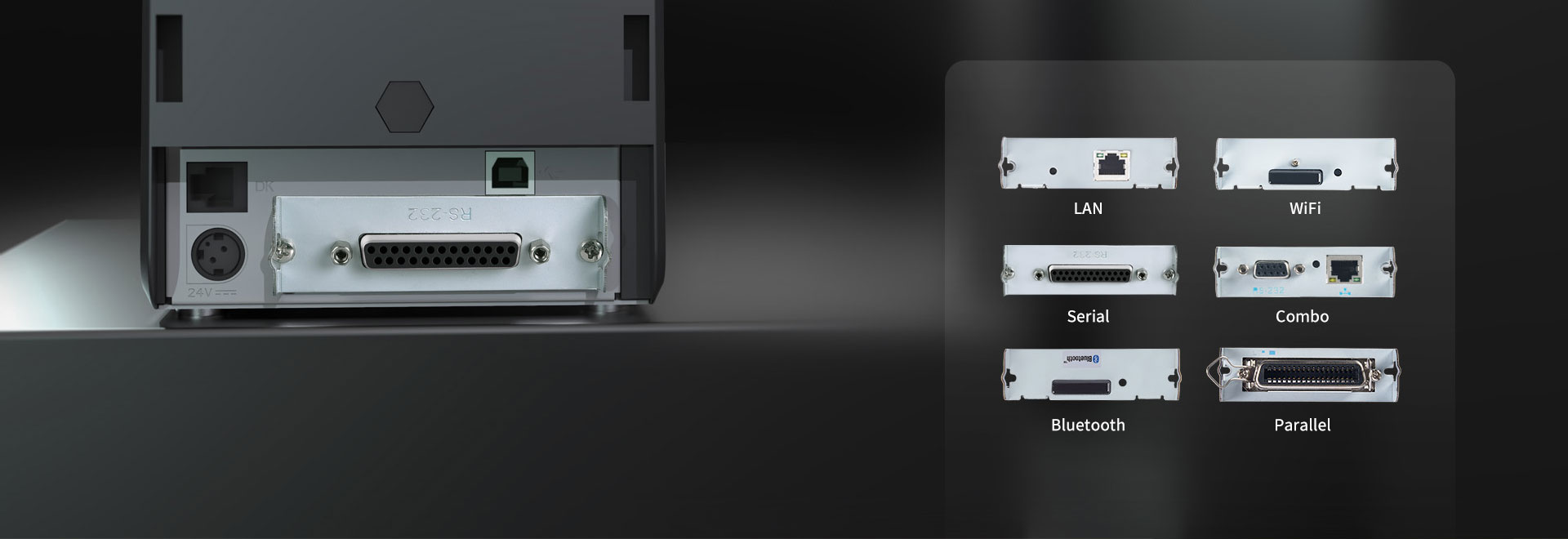

| Option | Serial Port, Ethernet, Parallel, Serial Port and Ethernet (2 in 1), Bluetooth, Wi-Fi | ||
| Page Mode | Support | ||
| Programming Language | ESC/POS | ||
| Memory | RAM | 2 MB | |
| Flash | 4 MB | ||
| Fonts | Alphanumeric; Simplified Chinese, Traditional Chinese; 47 codepages | ||
| Barcode | Linear Barcodes | UPC-A, UPC-E, EAN-8, EAN-13, CODE 39, ITF, CODEBAR, CODE 128, CODE 93 | |
| 2D Barcodes | PDF417, QR Code | ||
| Graphics | Support bitmap printing with different density and user defined bitmap printing. (Max size of each bitmap is 40 KB, the total size of bitmap is 256 KB) | ||
| Sensors | Standard | Paper out Detector, Paper near end Detector, Cutter jam Detector, Head up Sensor | |

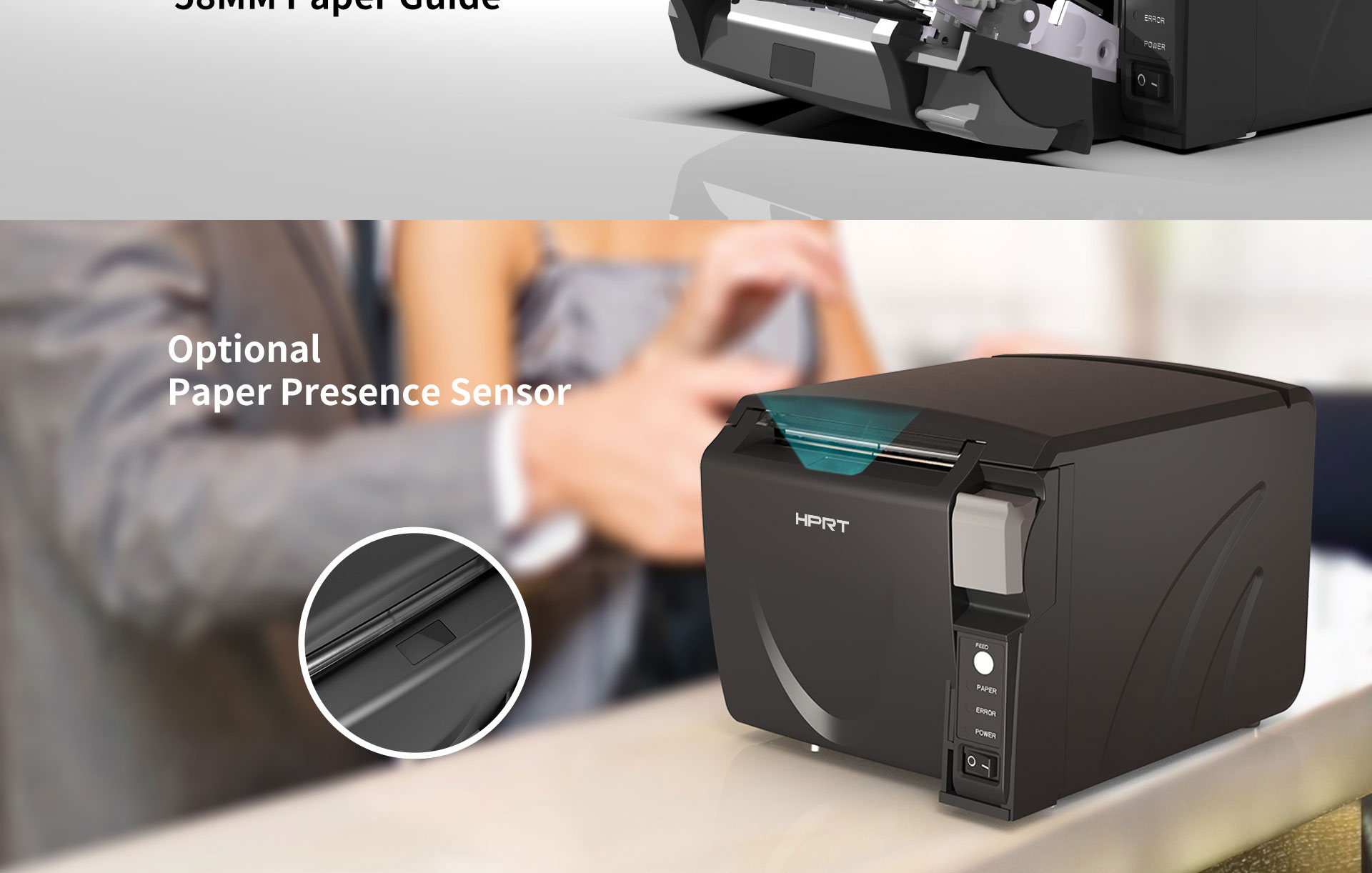

| Option | Paper taken Detector | ||
| LED Indicator | 6 Colours | ||
| Power Supply | Input | AC 100V~240V, 50/60Hz | |
| Output | DC 24V/2A | ||
| Paper | Paper Type | Thermal Receipt Paper | |
| Paper Width | Max. 80mm | ||
| Paper Thickness | 0.056 ~ 0.13 mm | ||
| Roll Paper Diameter | Max. Φ83 mm (O.D.) | ||
| Paper Load | Front paper loading | ||
| paper cut | Partial cut | ||
| Environment | Operating | 0 °C ~ 40 °C, 20% ~ 85% R.H | |
| Storage | -20 °C ~ 70 °C, 5% ~ 95% R.H | ||
| Physical Characteristics | Dimensions | 190(L)×127(W)×126(H)mm | |
| Weight | 1.58 kg | ||
| Options and Accessories | USB Cable, Serial Cable, Parallel Cable | ||
| Reliability | TPH | 150 km | |
| Cutter | 2 million cuts | ||
| Software | Driver | HPRT Driver：Windows XP，Vista,7，8，10.Linux,Mac | |
| SDK | WinCE, Windows Mobile, Android, iOS | ||
