• Waterproof and Dustproof structures

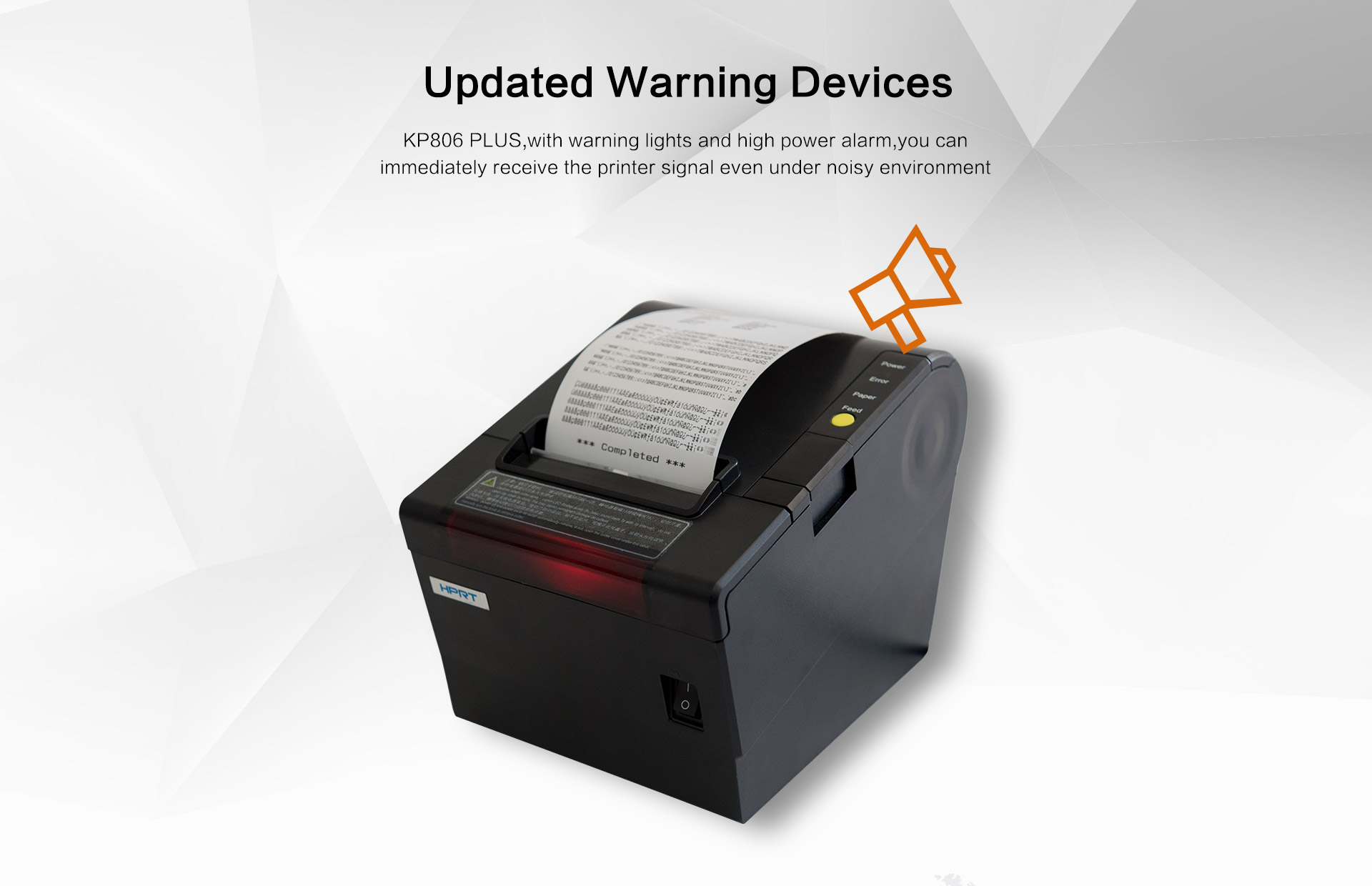

• Built-in High Volume Kitchen Alarm

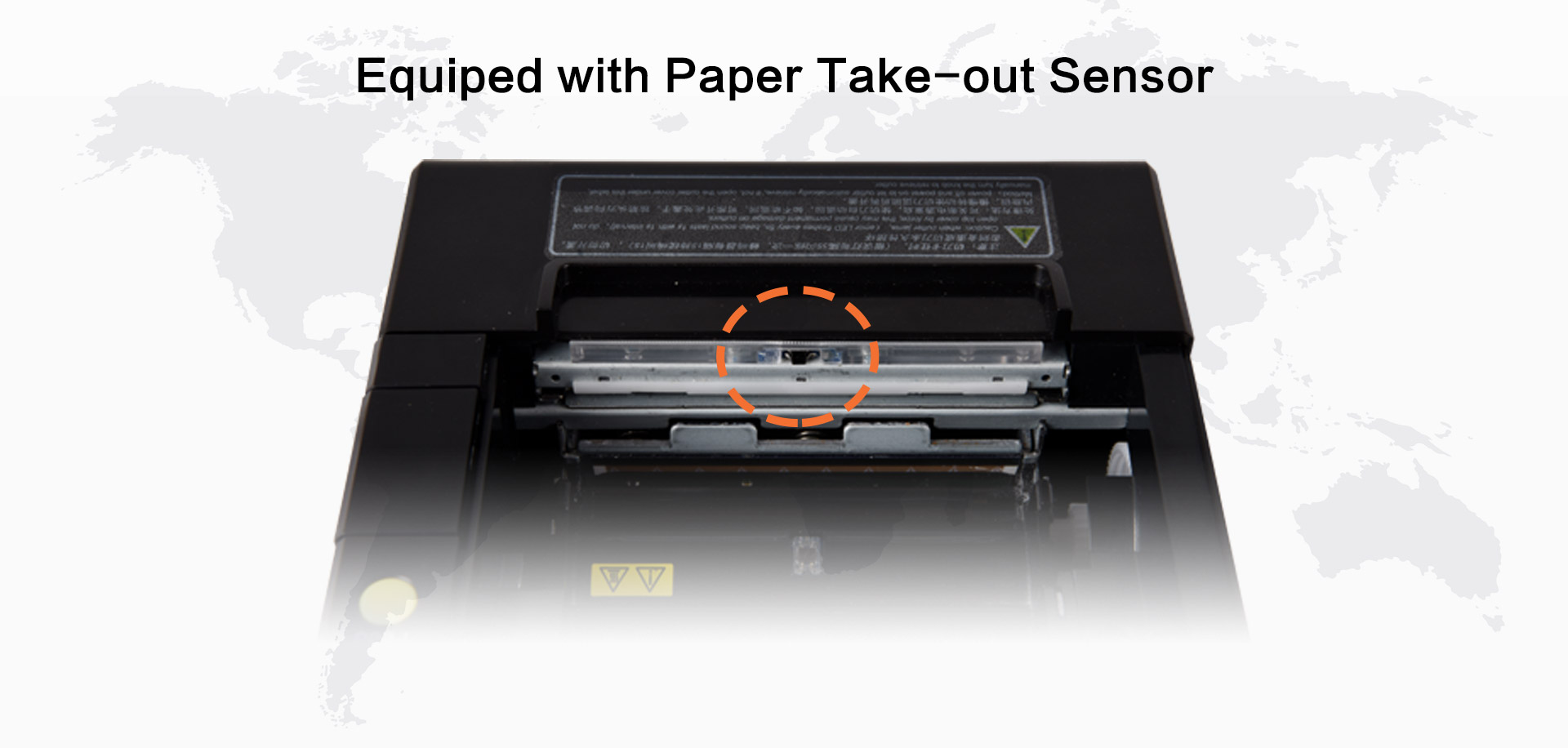

• Paper Take-out Sensors
• Patent Cutter Technology
• Error Reprinting Function
• 250mm/s High Printing Speed
• Waterproof Printer Cover
，
| Printing | Print Method | Direct Thermal | |
| Resolution | 203 dpi (8 dots/mm) | ||
| Print Speed | Max. 250 mm/s | ||
| Print Width | Max. 72 mm | ||
| Page Mode | Support | ||
| Memory | RAM | 2 MB | |
| Flash | 4 MB | ||
| Fonts | Alphanumeric; Simplified Chinese, Traditional Chinese; 45 codepages | ||
| Barcode | Linear Barcodes | UPC-A, UPC-E, EAN-8, EAN-13, CODE39, ITF, CODEBAR, CODE128, CODE93 | |
| 2D Barcodes | PDF417, QR Code | ||
| Graphics | Support bitmap printing with different density and user defined bitmap printing. (Max size of each bitmap is 40KB, the total size of bitmap is 256KB) | ||
| Interface | Standard | USB Type B, Ethernet | |
| Sensors | Standard | Paper out Detector, Head up Detector | |
| Option | Paper Take-out Sensors | ||
| LED Indicator | Power | Green | |
| Paper | Red | ||
| Error | Red | ||
| Power Supply | Input | AC 100V ~ 240V, 50/60Hz | |
| Output | DC 24V, 2.5A | ||
| Paper | Paper Type | Thermal Receipt Paper | |
| Paper Width | 58mm/ 80 mm/ 82.5 mm | ||
| Paper Thickness | 0.056 ~ 0.13 mm | ||
| Roll Paper Diameter | Max. Φ83mm (O.D.) | ||
| Paper Load | Easy Paper Loading | ||
| Paper cut | Partial cut | ||
| Environment | Operating | 0°C ~ 45°C, 20% ~ 85% R.H | |
| Storage | -40°C ~ 60°C, 5% ~ 95% R.H | ||

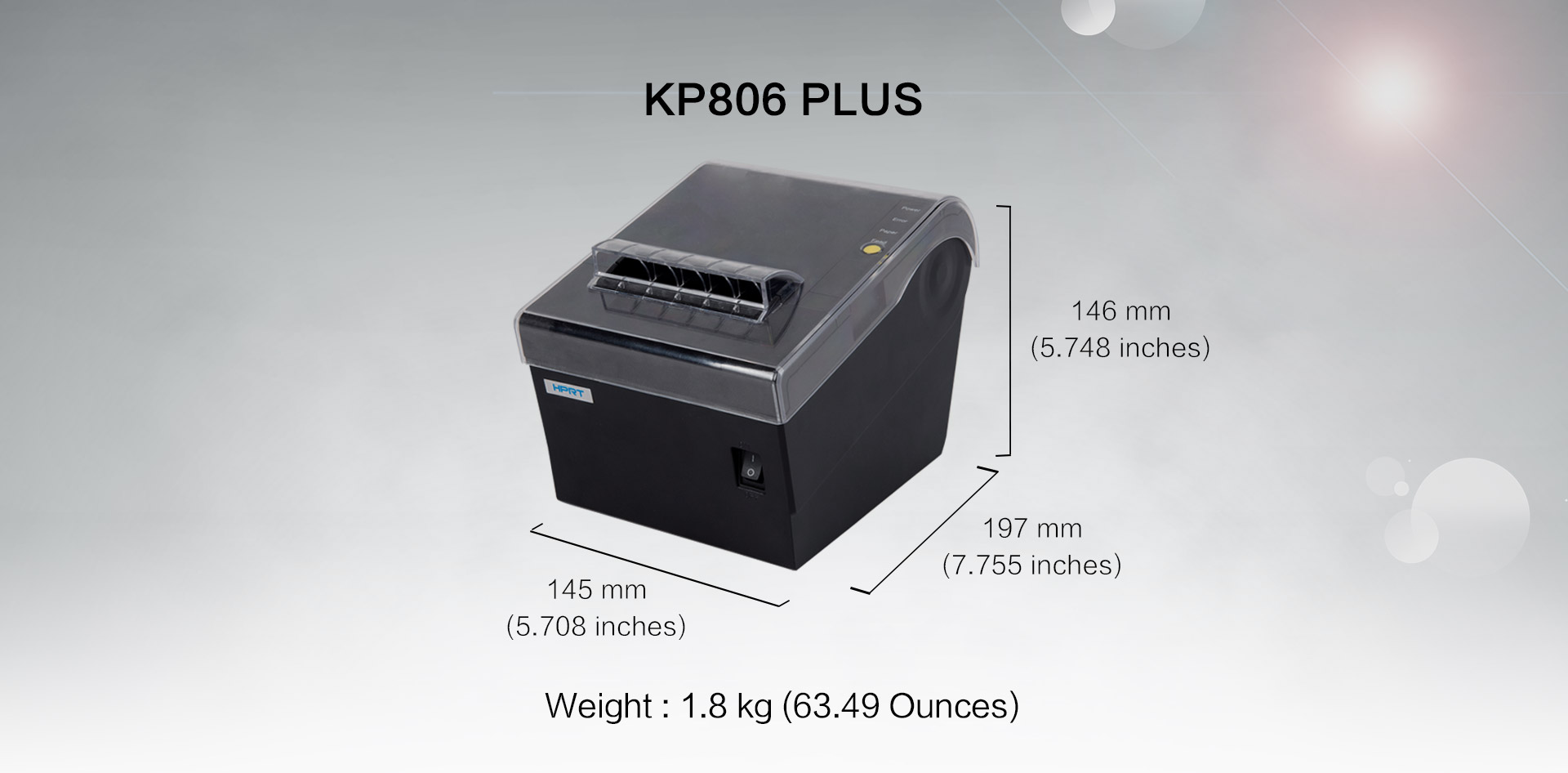

| Physical Characteristics | Dimensions | 201.4(L)×152.2(W)×147.7(H) mm | |
| Weight | 1.8 kg | ||
| Reliability | TPH life | 150 km | |
| Cutter | 2 million cuts | ||
| Motor life | 360,000 hrs | ||
| Software | Driver | HPRT Driver：Windows XP，Vista,7，8，10.Linux,Mac | |
| SDK | Win CE, Windows Mobile, Android, iOS | ||
