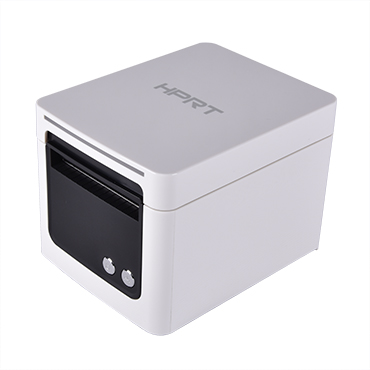

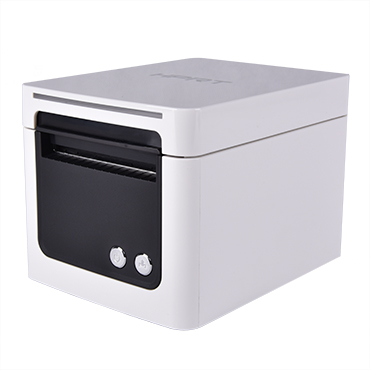

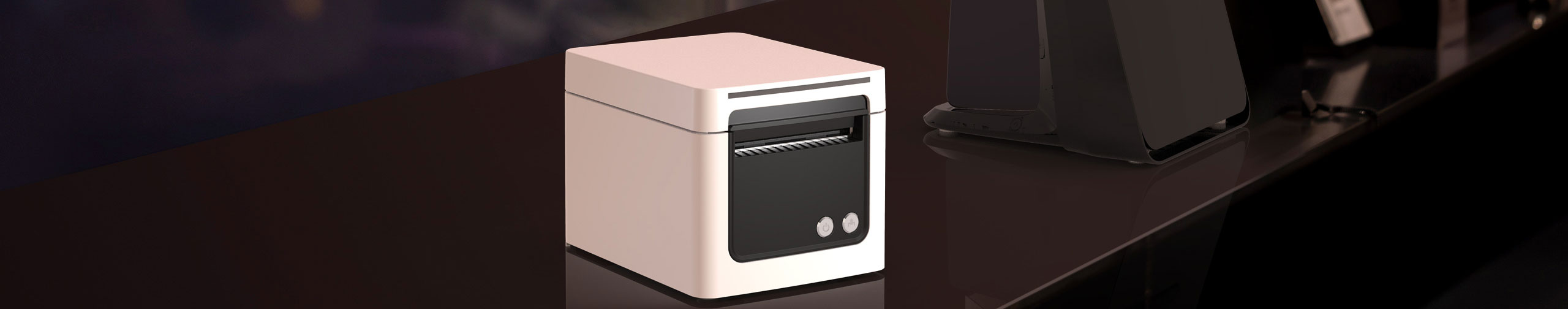

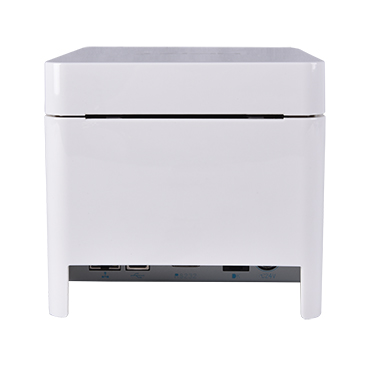

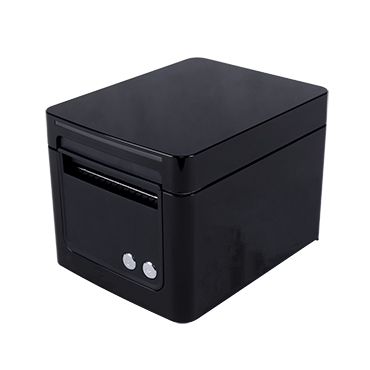

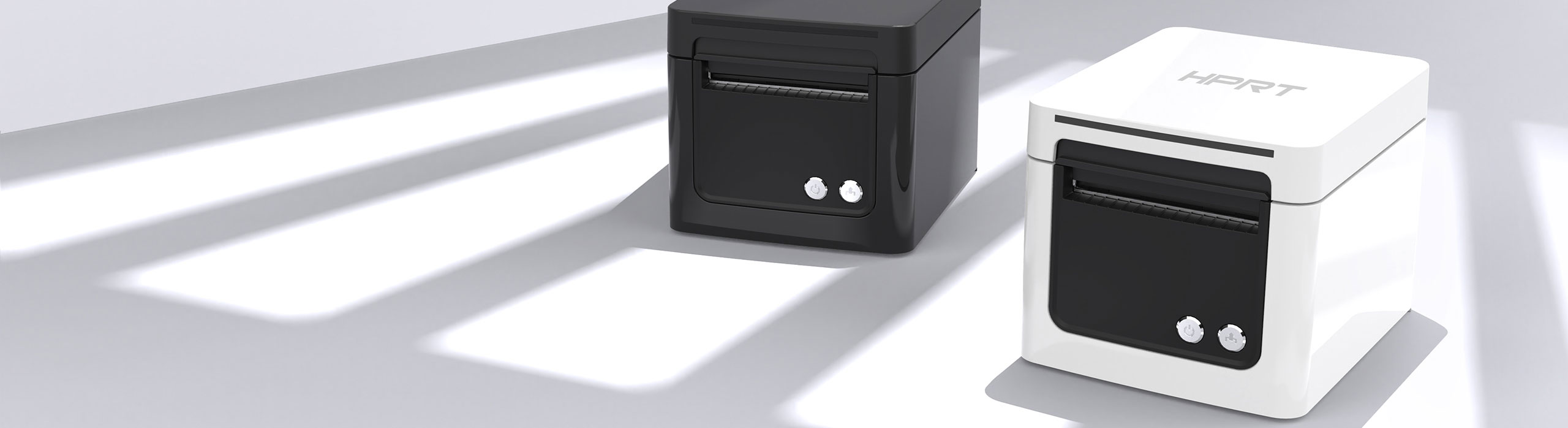

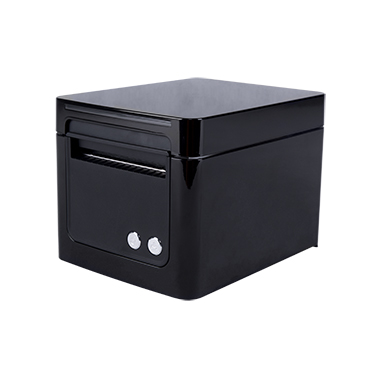

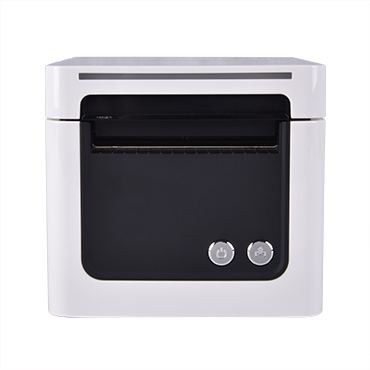

• Fashionable Design
• Top paper loading

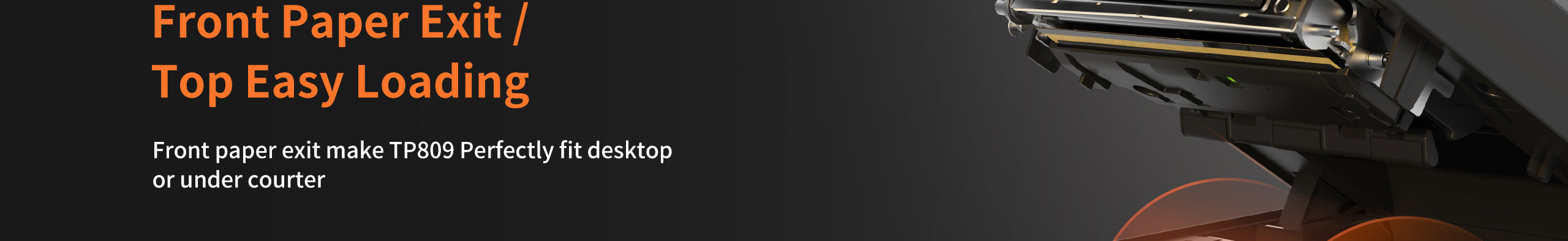

• Front exit

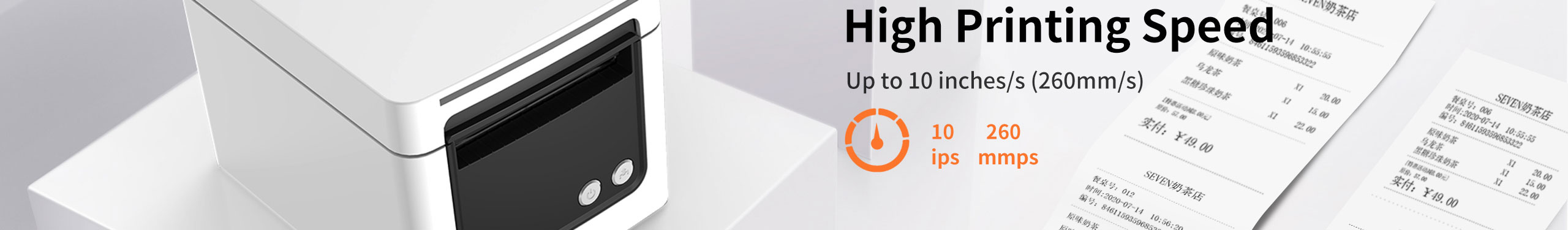

• High printing speed up to 260mm/s

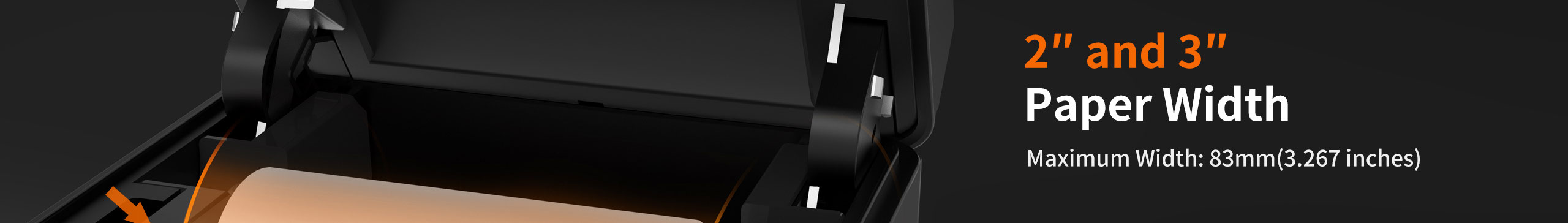

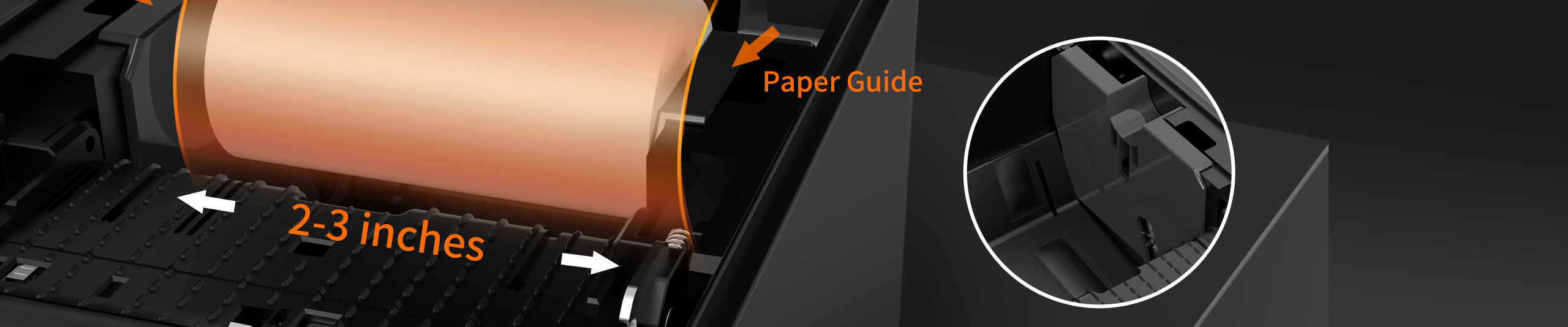

• 2"&3" printing paper widths available

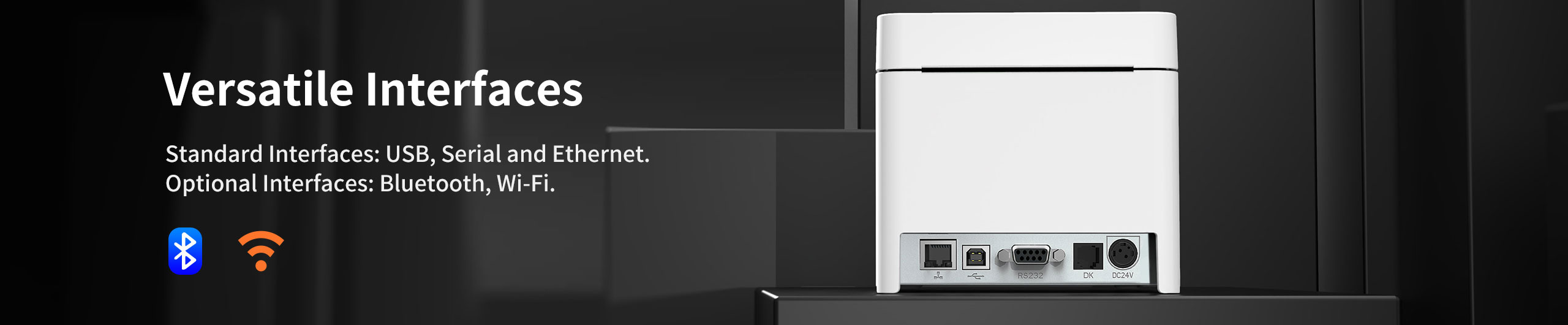

• Versatile interfaces: USB, Serial, Ethernet, Bluetooth, Wi-Fi, Cashdrawer
• Provide Windows, Linux, POSReady, OPOS driver
• SDK for iOS, Android & Windows
，
| Printing | Print Method | Direct Thermal | |
| Resolution | 203 dpi (8 dots/mm) | ||
| Print Speed | Max. 260 mm/s | ||

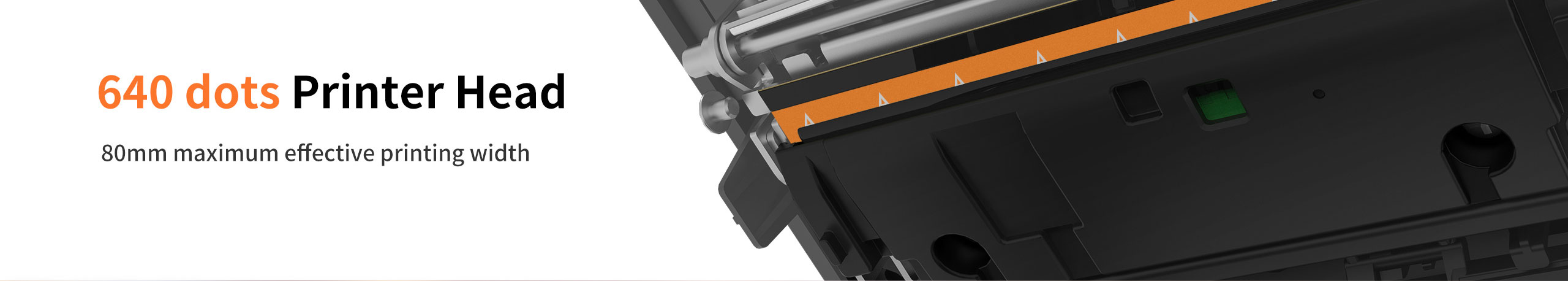

| Printing Width | Max. 80 mm | ||
| Interface | Standard | USB Type B, Serial Port, Ethernet | |
| Optional | Bluetooth, Wi-Fi | ||
| Page Mode | Support | ||
| Memory | RAM | 16 MB | |
| Flash | 16 MB | ||
| Programming Language | ESC/POS | ||
| Fonts | Alphanumeric; Simplified Chinese, Traditional Chinese; 46 International Character Sets | ||
| Barcode | Linear Barcodes | UPC-A, UPC-E, EAN-8, EAN-13, CODE 39, ITF, CODEBAR, CODE 128, CODE 93 | |
| 2D Barcodes | PDF417, QR code | ||
| Graphics | Support bitmap printing with different density and user defined bitmap printing. (Max size of each bitmap is 64 KB, the total size of bitmap is 256 KB) | ||

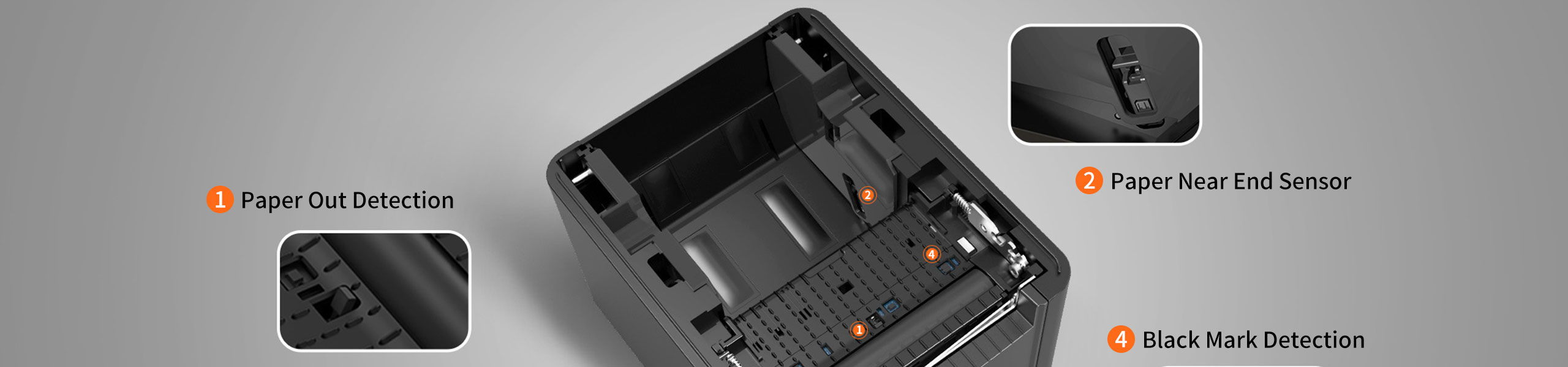

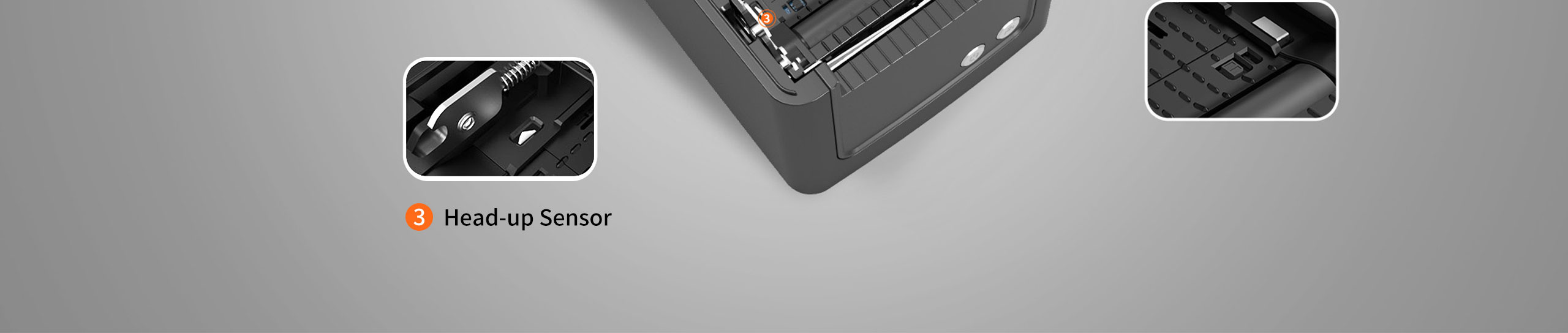

| Sensors | Standard | Paper out Detector, Head up Detector | |
| Option | Paper near end sensors, Black mark Detector | ||

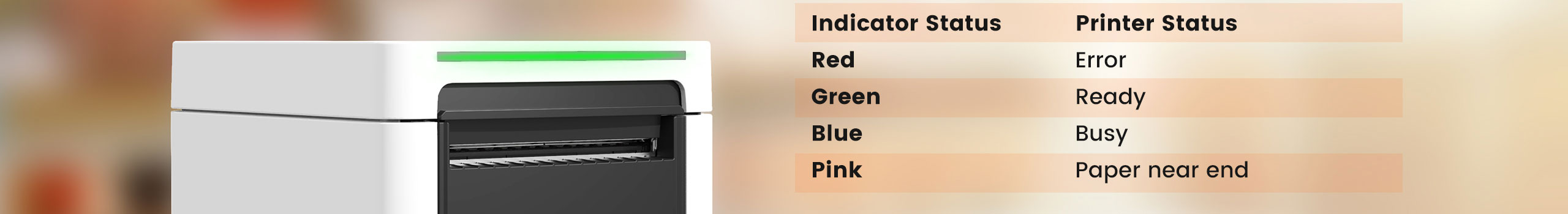

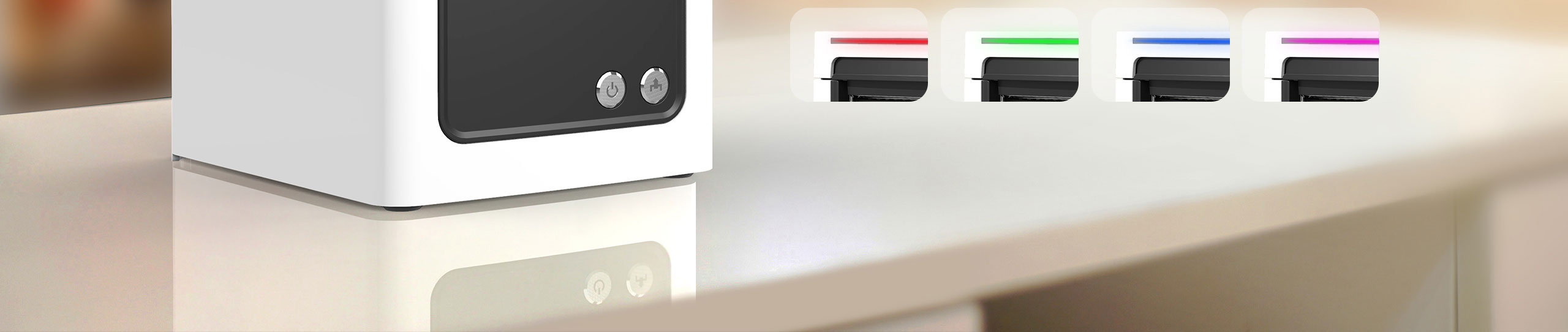

| LED Indicator | Power | Green | |
| Busy | Blue | ||
| Paper Near End | Pink | ||
| Error | Red | ||
| Power Supply | Input | AC 100V ~ 240V, 50/60Hz | |
| Output | DC 24V, 2.5A | ||
| Paper | Paper Type | Thermal Receipt Paper | |
| Paper Width | Max. 80mm | ||
| Paper Thickness | 0.056 ~ 0.13mm | ||
Roll Paper Diameter | Max. Φ83 mm (O.D) | ||
| Paper Load | Top paper loading | ||

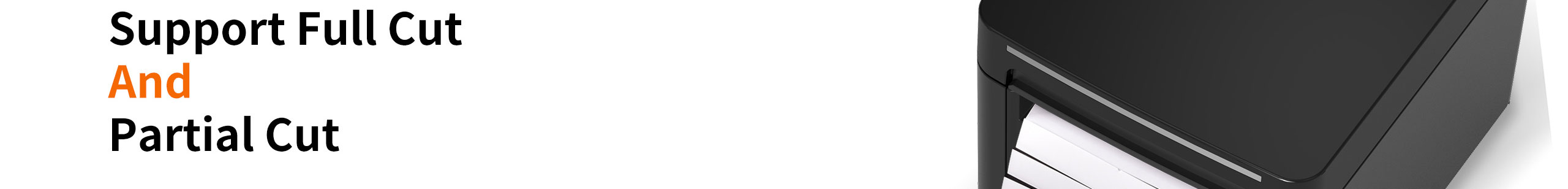

| Paper Cut | Partial cut or Full cut | ||
| Environment | Operating | 0°C ~ 45°C, 20% ~ 85% R.H, no-condensation | |
| Storage | -20°C ~ 70°C, 5% ~ 95% R.H, no-condensation | ||

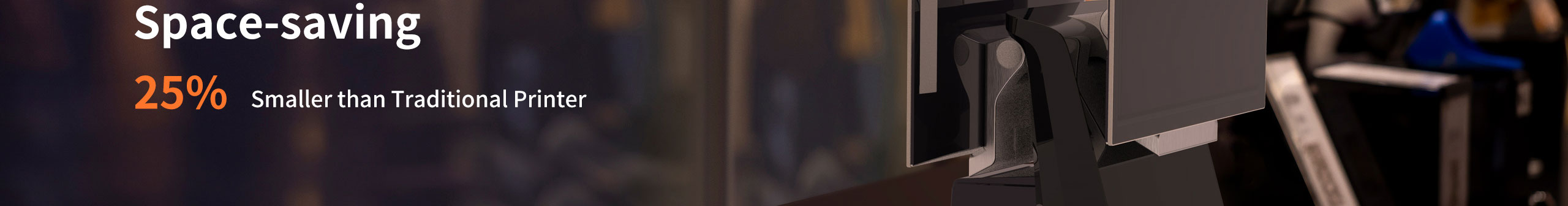

| Physical Characteristics | Dimensions | 165(L)×130(W)×119(H) mm | |
| Weight | 1.35 kg | ||
| Options and Accessories | USB/Serial Cable, Paper roll, Power Adapter, Power Cord, CD, Quick Start Guide | ||
| Reliability | TPH life | 150 km | |

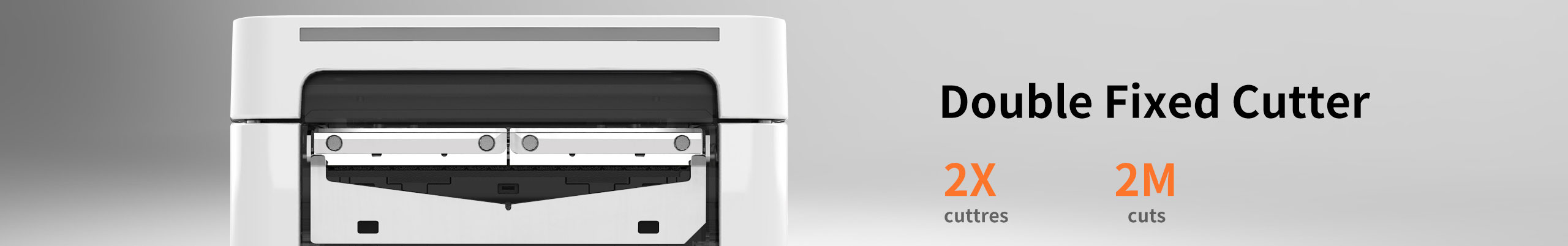

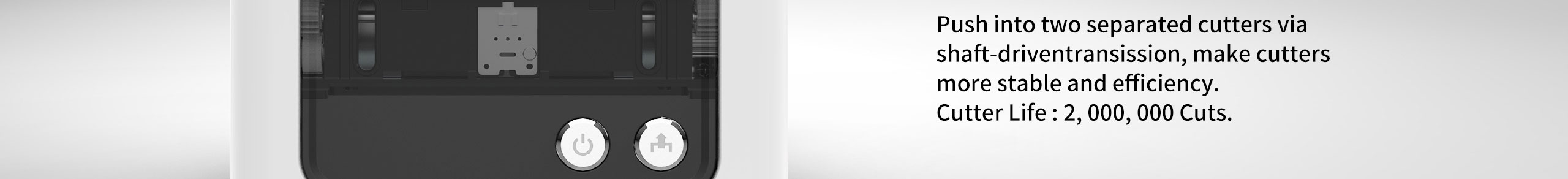

| Cutter | 2 million cuts | ||
| Software | Driver | HPRT Driver：Windows XP，Vista,7，8，10.Linux,Mac | |
| SDK | WinCE, Windows Mobile, Android, iOS | ||
