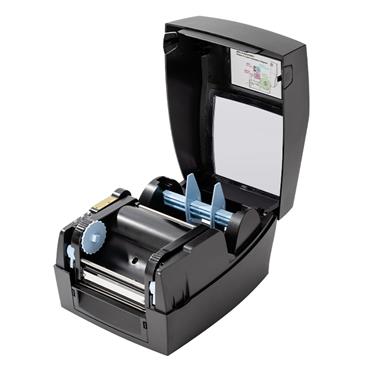

4-inch Thermal Transfer Label Printer

• Direct thermal or thermal transfer models, up to 300m ribbon

• XT300: Max. 108 mm print width, 203 dpi（8 dots/mm）

• XT330: Max. 106 mm print width, 300 dpi（12 dots/mm）

• Standard: USB 2.0, Serial, Ethernet

• Optional: Bluetooth 4.0, WIFI, IEEE802.11b/g/h

• Free label design software

• Perfect for product labeling, price labeling, asset labels, shelf labeling, shipping labels, Lab and specimen labels.

Send Inquiry

，

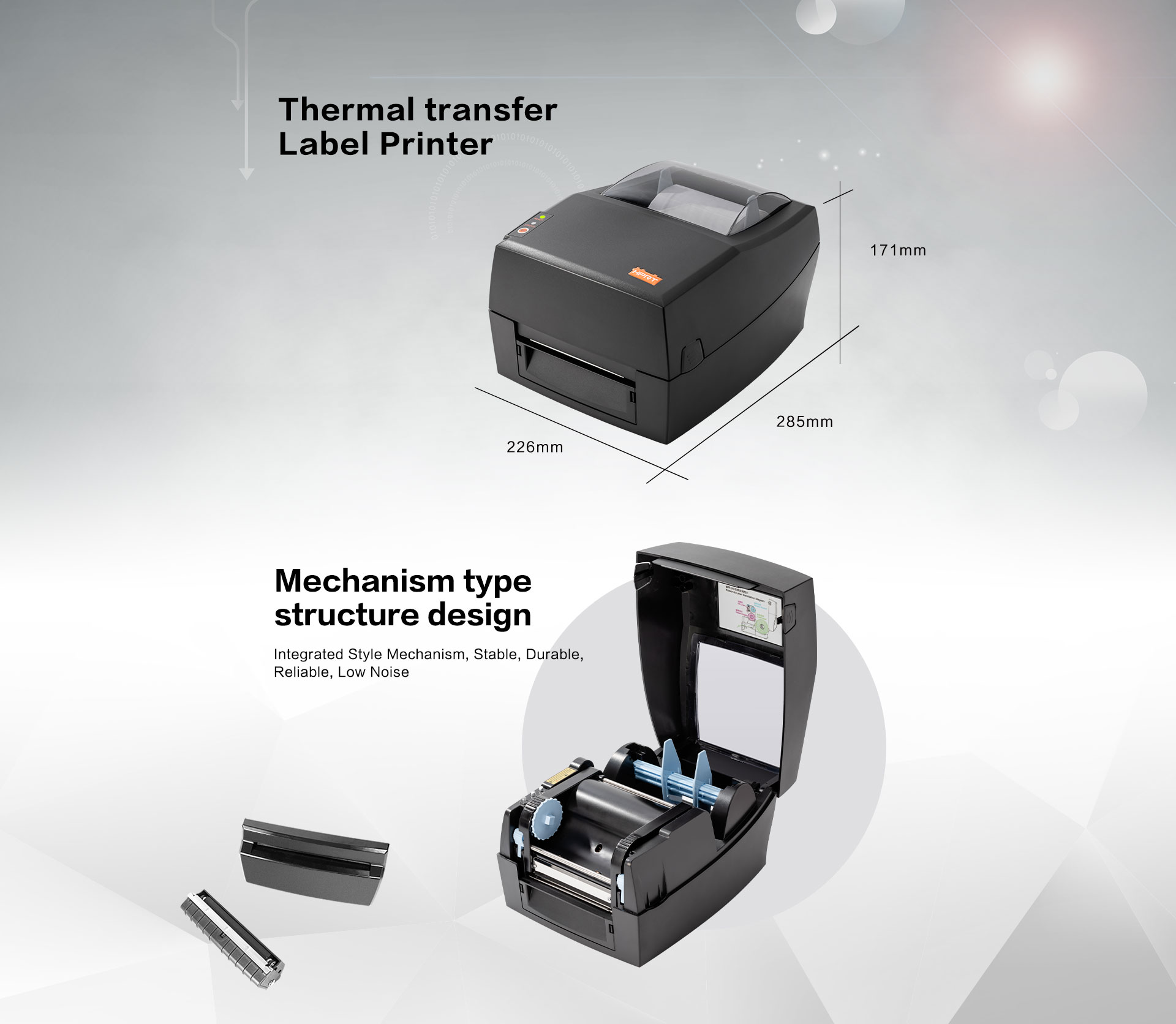

HPRT durable label printer XT300

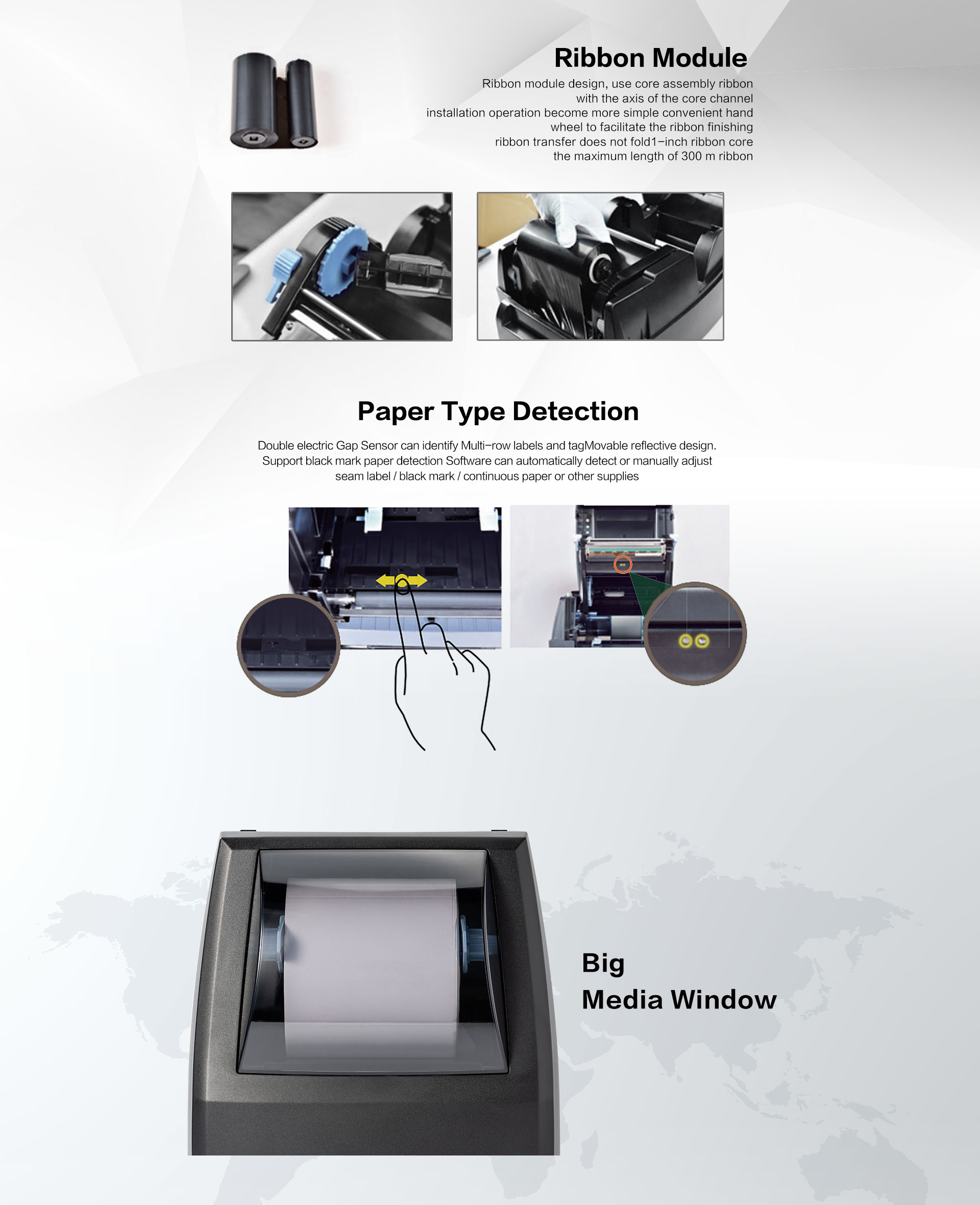

label printer roll module design

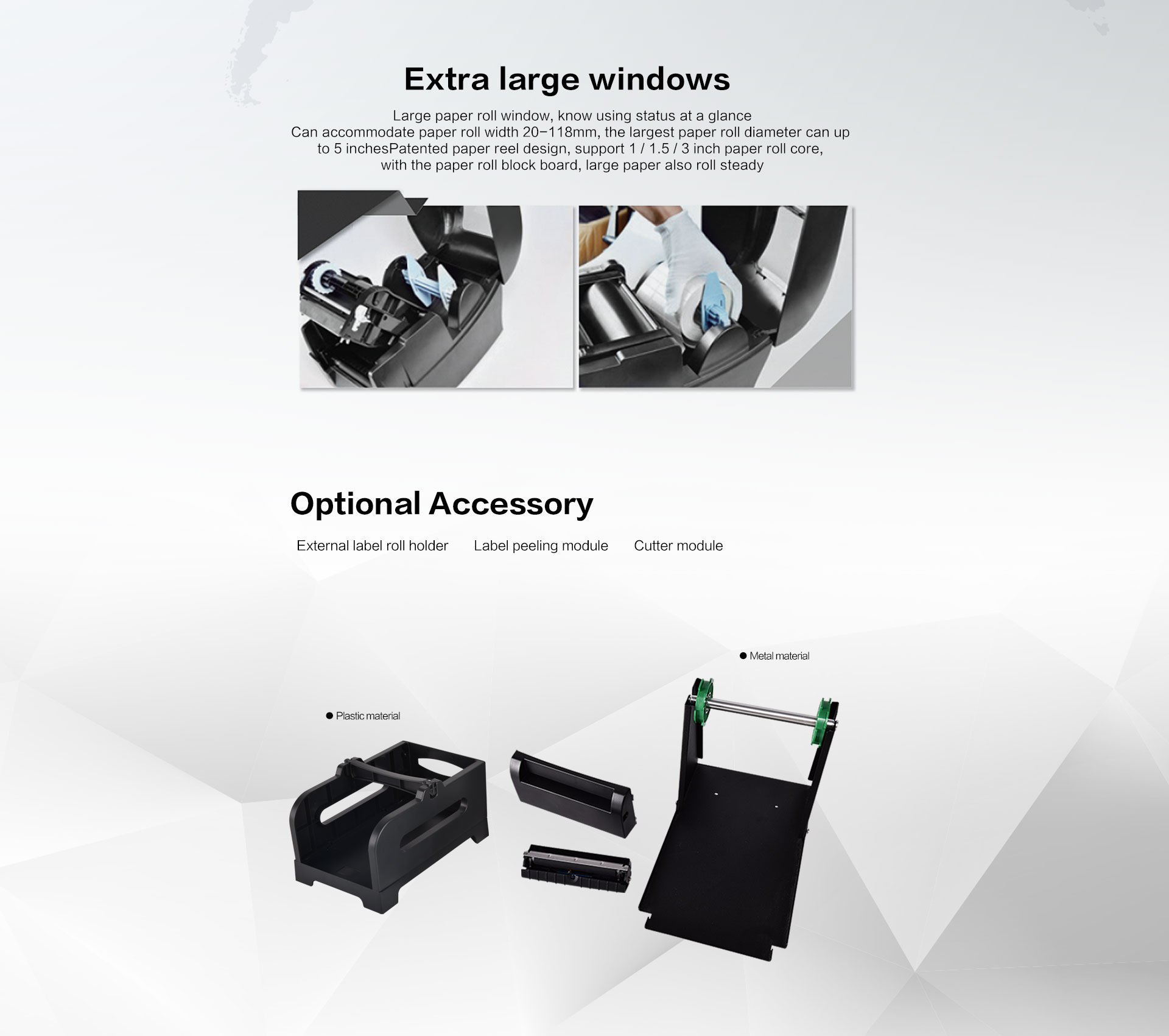

HPRT label printer XT300 with large paper roll

multiple interfaces label printer

Model		XT300	XT330
Printing Method		Direct Thermal / Thermal Transfer
Resolution		203 dpi（8 dots/mm）	300 dpi（12 dots/mm）
Printing Speed		2 ips ~ 5 ips	2 ips ~ 4 ips
Printing Width		25.4 mm ~ 108 mm	25.4mm ~ 106mm
Programming Language		TSPL, ZPL, EPL
Barcode	Barcode	Code 39, Code 93, Code 128UCC, Code 128, Codabar, Interleave 2 of 5, EAN8, EAN13, UCC/EAN128, UPC-A, UPC-E, MSI, PLESSEY, POSTNET,RSS-Stacked, GS1 DataBar, Code 11
	2D Code	QR Code, PDF417, DataMatrix, Aztec
Printing Length		15 mm ~ 1200 mm
Media	Type	Roll-fed, Fan-fed, Die-cut, Continuous Label, Tag stock
	Diameter(Media Roll)	127 mm
	Thickness	80 μm ~ 180 μm
	Diameter(Core)	0.5"(12.7 mm), 1"(25.4 mm), 1.5"(38.1 mm)
Ribbon	Type	Wax, Resin/Wax, Resin
	Length	300 m
Sensors	Gap Sensor	Transmissive (Fixed)
	Black Mark Sensor	Reflective (Adjustable, Half-Range)
	Other	Head-Up Sensor, Ribbon End Sensor, Paper Out Sensor
Interface	Standard	USB Type-B, Serial Port, Ethernet
	Optional	Bluetooth
HIC	Button	Feed
	Indicator Light	Ready Sig.(Green), Status Sig.(Red)
Power Adapter	Input	AC 100 ~ 240V, 50/60 Hz
	Output	DC 24V, 2.5A
	Input Voltage	AC 100V ~ 240V, 50/60Hz
Reliability	TPH	50 km
Memory	RAM	32 MB
	ROM	16 MB
Softwares	Driver	HPRT Driver：Windows XP，Vista,7，8，10.Linux,Mac
	SDK	Windows, MacOS, Android, iOS
Options and Accessories		External 8-inch Label Roll Holder
		Cutter Module (H4GC, Black)
		Peeler Module (H4P, Black)
Physical Characteristics		285(L)×226(W)×171(H) mm
Empty Weight		2.26 kg
Agency Approvals		CCC, FCC, CE
