• Direct thermal printing
• Up to 6 ips high speed printing with low noise

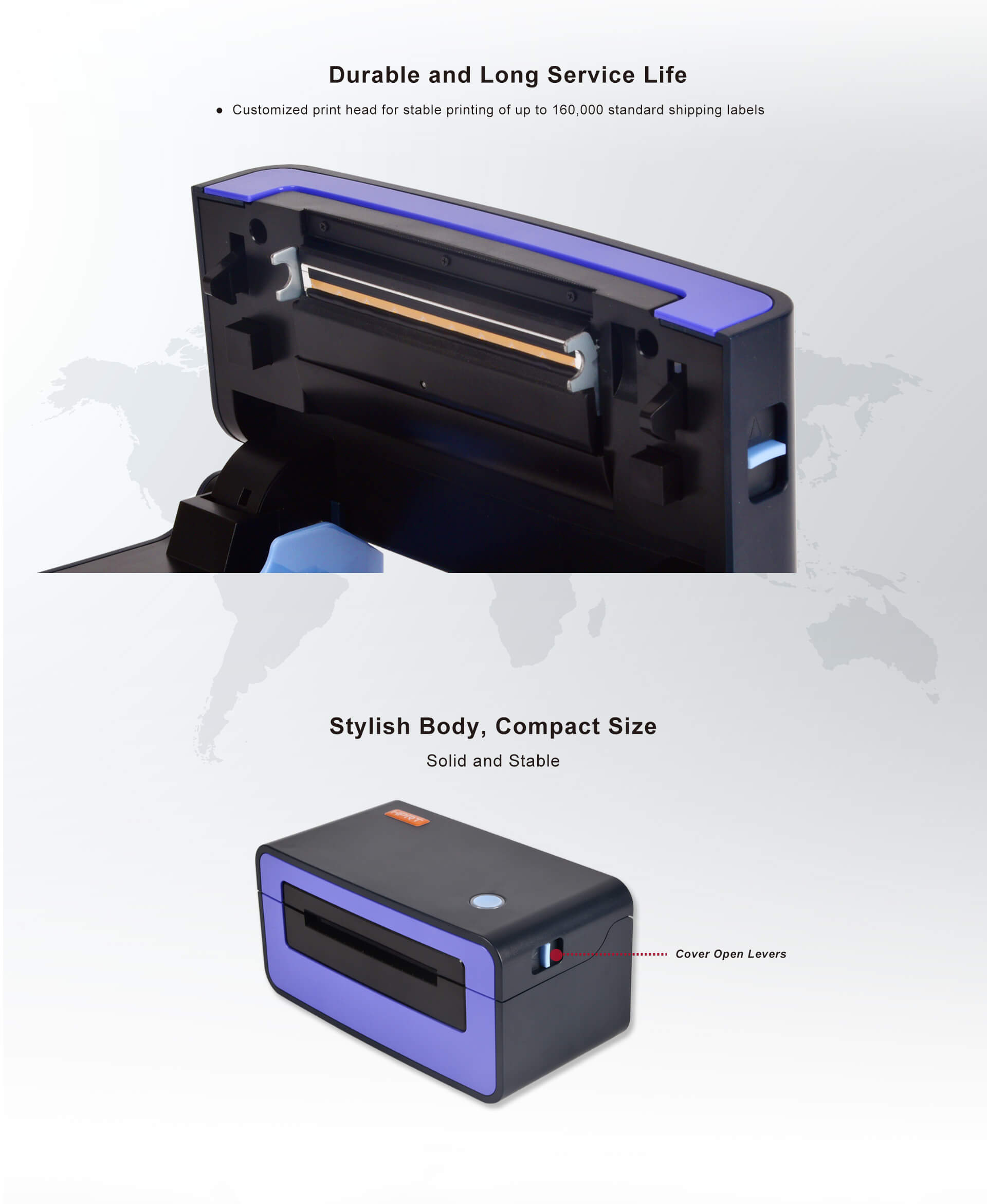

• Compact design, built-in adapter, save more space
• Printer head intensified coating and more durable

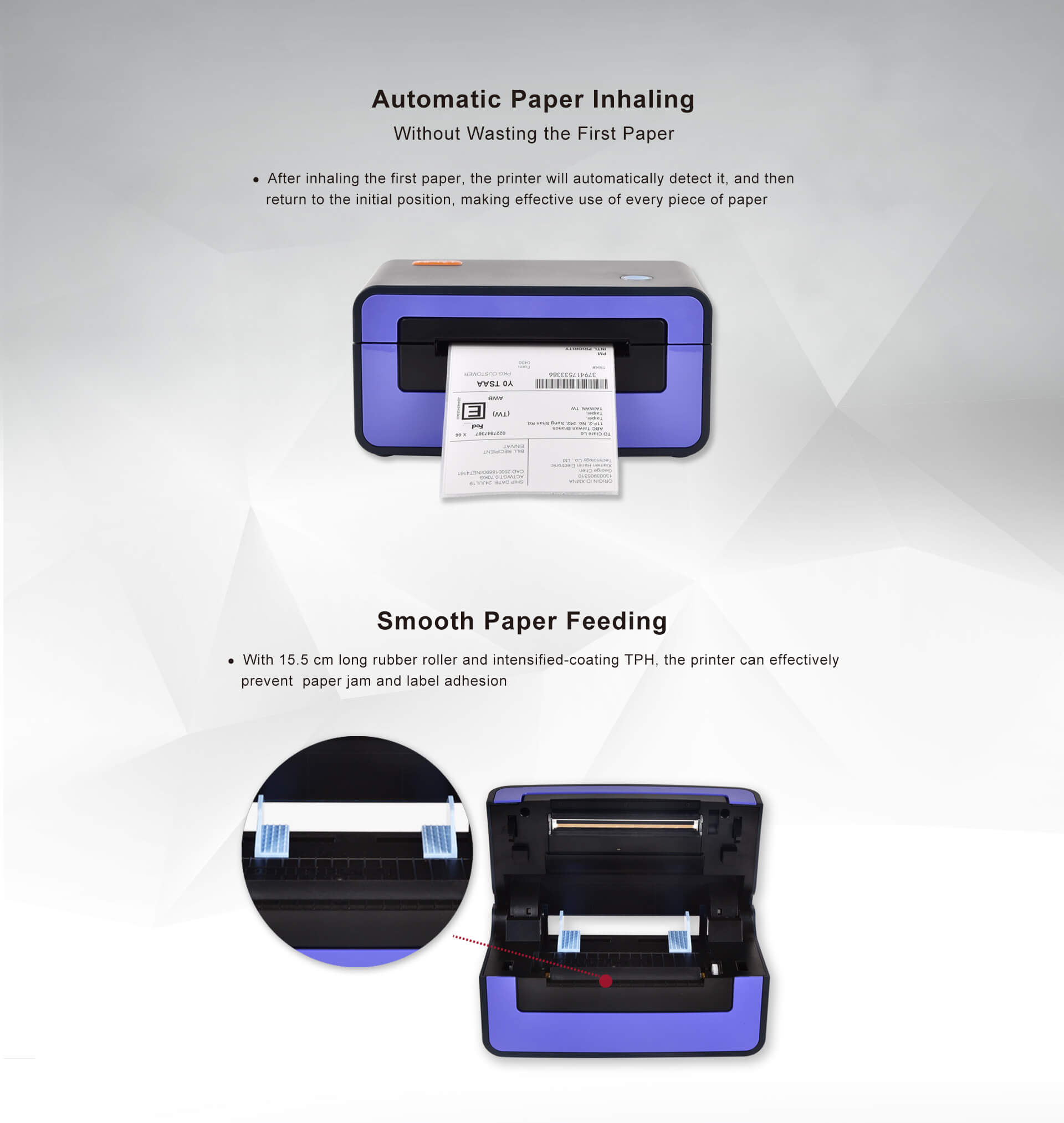

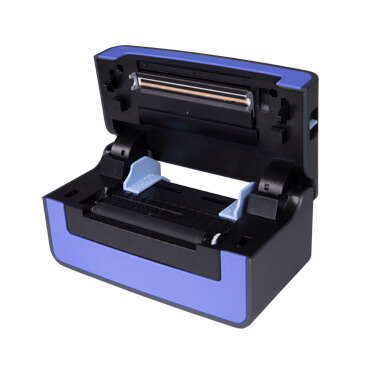

• Larger size rubber roller to prevent label sticking
• Auto label detection
• Error Reprint Technology
，
| Printing | Method | Direct Thermal | |
| Resolution | 203 dpi (8 dots/mm) | ||
| Speed Maximum | 150 mm/s | ||
| Width Maximum | 108 mm | ||
| Length Maximum | 300 mm | ||

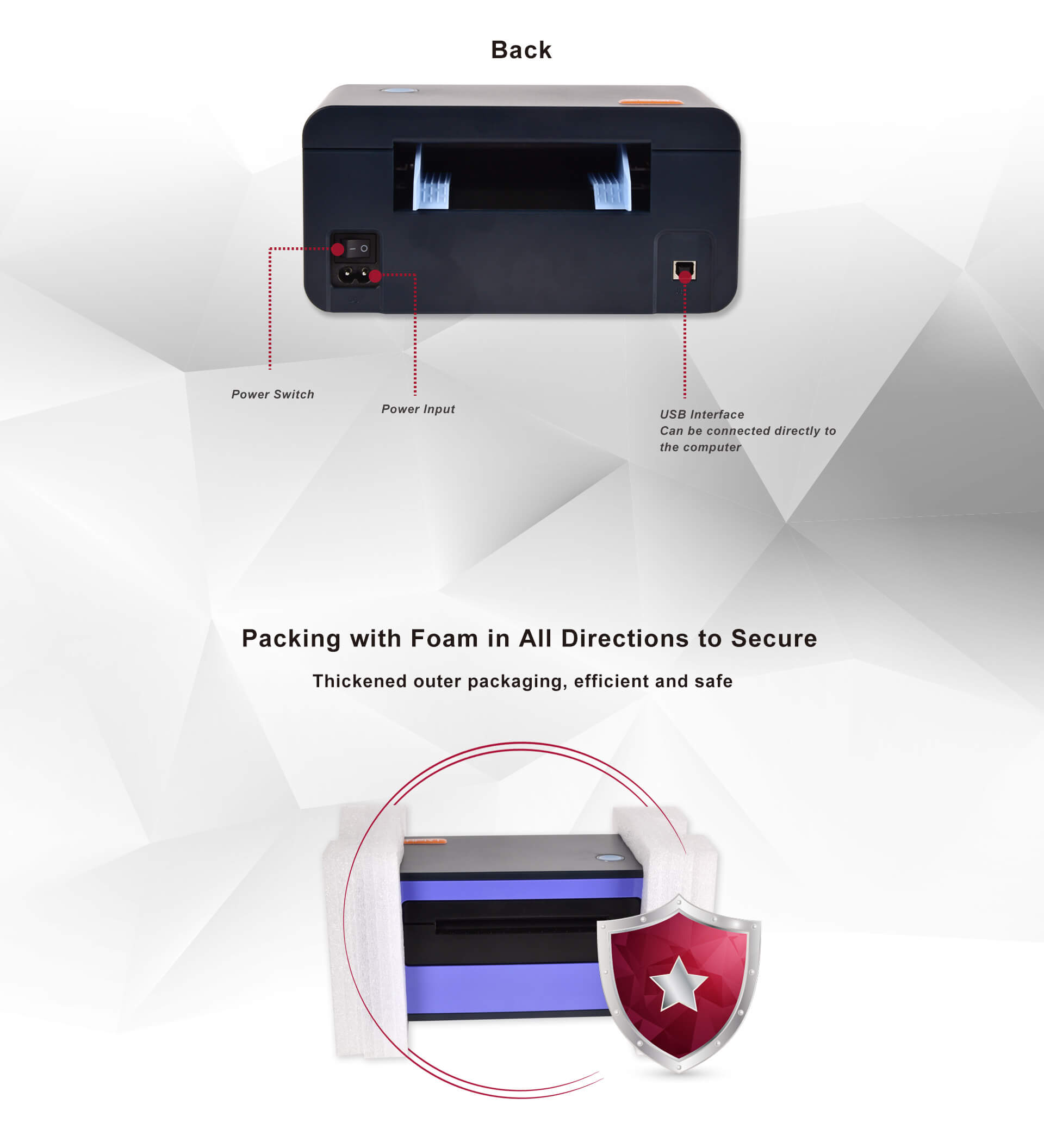

| Interfaces | Standard | USB | |
| Processor | 32 bit RISC CPU | ||
| Memory | RAM | 2 MB | |
| Flash | 2 MB | ||
| Programming Language | TSPL | ||
| Detection | Sensors | Label edge detection, Out of paper detection, Gap detection, Cover open detection, Black mark detection | |
| Barcode | 1D | Code 39, Code 93, Code 128UCC, Code128 subset A, B, C | |
| 2D | QR Code | ||
| Media | Type | Folded paper or roll paper, die-cut label, black mark paper | |
| Width | 2"(50mm)-4.65"(118mm) | ||
| Thickness | 0.003"(60μm）-0.0087"（220μm） | ||
| External paper roll | Max OD 5"(127mm) | ||
| External folding paper | W:100mmx L:100mm-300mm | ||
| Power Adapter | Input | AC 100V ~ 240V, 1.5A, 50/60Hz | |
| Resident Fonts | Full ASCll 8x16, 12x24 bitmap fonts, up to 10 times enlarge, 4 directional rotation | ||
| Code Pages | DOS437, 720, 737, 755, 775, 850, 852, 855, 856, 857, 858, 860, 862, 863, 864, 865, 866, Windows 1250, 1251, 1252, 1253, 1254, 1255, 1256, 1257, 1258 ISO8859-1，-2， -3， -4， -5， -6， -7， -8，-9，-15 | ||

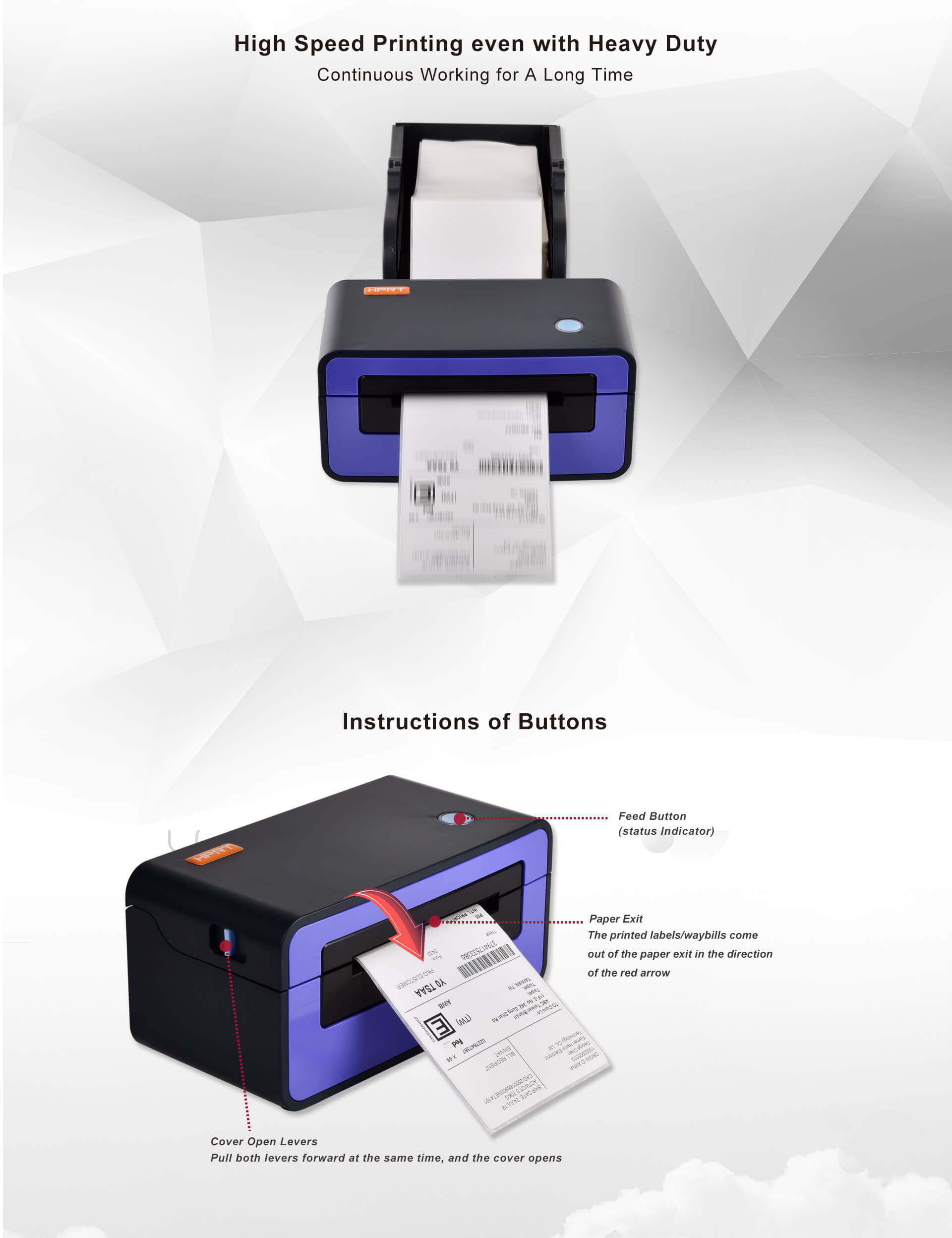

| Control Panel | One Feed button(three colors for different three states), Tear paper from above Coordinated type of paper guidding roller Automatic paper suction from back and then positioning | ||
| Environment | Output | DC 24V, 2A | |
| Operating | 41 F(5℃)-104 F(40℃), 30%-85%RH | ||
| Storage | ‘-4 F(-20℃)-122 F(50℃), 10%-90%RH | ||
| Physical Characteristics | Dimension | 220(L)×120(W)×108(T) mm | |
| Weight | 1.5 kg | ||
| Options and Accessories | Ecternal 5"roll stand or folding paper box | ||
| Software | Label Dsigen | Customer can download third-party editing software for label design | |
| Driver | HPRT Driver：Windows XP，Vista,7，8，10.Linux,Mac | ||
| Agency Approvals | CCC, FCC, CE | ||
