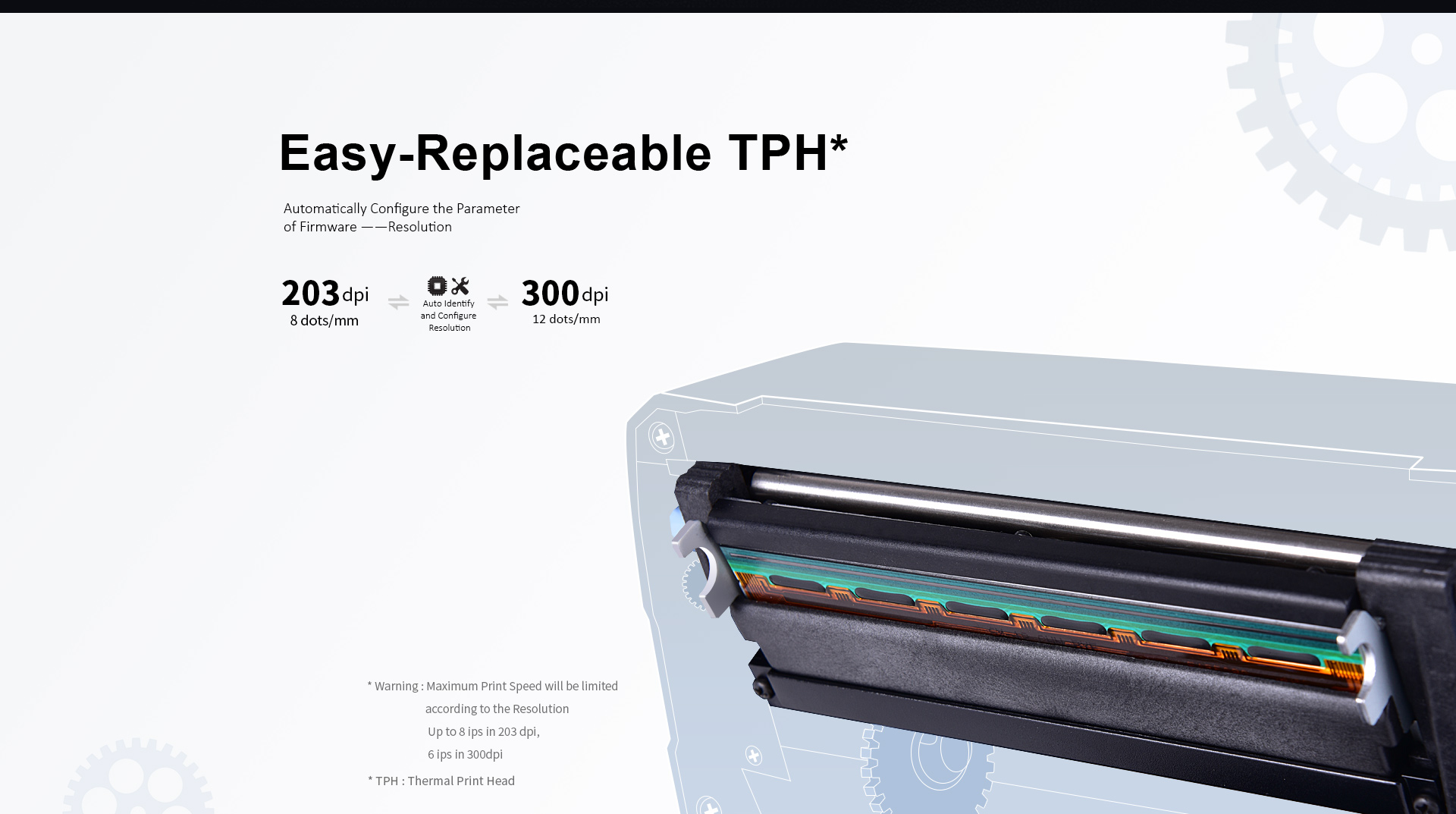

• The modular design of print head makes the disassembly and assembly easy.
• With the function to automatically identify the printer head with 203 dpi and 300 dpi and automatically configure the printer without PC settings.
• With super large storage, DDR2 RAM 128 MB, Flash 256 MB.
• With free label editing software Bartender to mark the label editing convenient and easy.
• With various media to meet the demand of wide area.
• Cool black housing with clamshell structure, with external paper roll holder optional supported.
，
| Printing | Printing Method | Thermal transfer | |
| Resolution | 203 dpi / 300 dpi | ||
Max.Printing Speed | 8 ips (203dpi) / 6 ips (300dpi) | ||
Max.Printing Width | 108 mm(203dpi) / 106 mm(300dpi) | ||
Max.Pringting Length | 2,286 mm(203dpi) / 1,524 mm(300dpi) | ||
| Protocol | Compatible ZPL-II, EPL2, DPL | ||

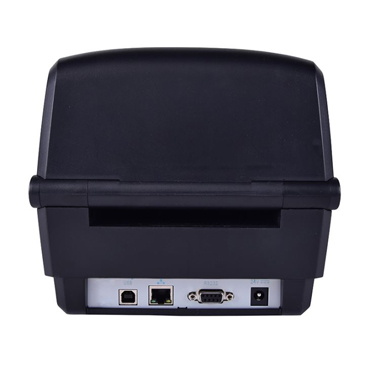

| Interfaces | Standard | USB Type B, Serial, Ethernet | |
| Optional | Bluetooth, Wi-Fi | ||
| Memory | RAM | 128 MB | |
| Flash | 256 MB | ||
| Media | Width | 25.4mm~118 mm | |
| Thickness | 60μm~250μm | ||
Roll(OD., Max) | 127 mm | ||
| Ribbon | Type | Wax,Wax/Resin,Resin | |
| Width | 30 mm~110 mm | ||
| Max.Length | 100 m | ||
| Inradium | 25.4 mm | ||
| Font | Resident Fonts | Alphanumeric, Simplified Chinese, Traditional Chinese, 29 International Character Sets | |
| Download Fonts | Support | ||
| Software | Label Design Software | Bartender 2016 Ultralite | |
| Driver | HPRT Driver：Windows XP，Vista,7，8，10.Linux,Mac | ||
| Barcodes | Linear | UPC-A,UPC-E,EAN 128,Codabar,Code 128Code 39, Code 93, EAN-8,EAN-13,UCC/EAN-128, Post NET, ITF 14, HIBC, MSI, Plessey, Telepen, FIM, GS1 DataBar, German Post Code, Planet 11 & 13, Japanese Postnet, Interleaved 2 of 5, Standard 2 of 5, Industrial 2 of 5, Logmars, Code 11 | |
| 2D | Code 49, Cadablock, PDF417, Data matrix code, Maxi Code, QR code, Micro PDF471, Aztec | ||
| Sensor | Gap Sensor | Transmissive (Fixed, Dual) | |
| Black mark Sensor | Reflective (Adjustable, Full-Range) | ||
| Other | Paper out detect, Ribbon out detect, Print head left detect, print head temperature detect | ||
| Electrical | Input | AC 100~240V, 50/60 Hz | |
| Output | DC 24V, 2A | ||
| Environmental | Operation | 5 to 50℃@ humidity 25% to 85% non-condensing | |
| Storage | -40 to 60℃@ humidity 10% to 90% non-condensing | ||

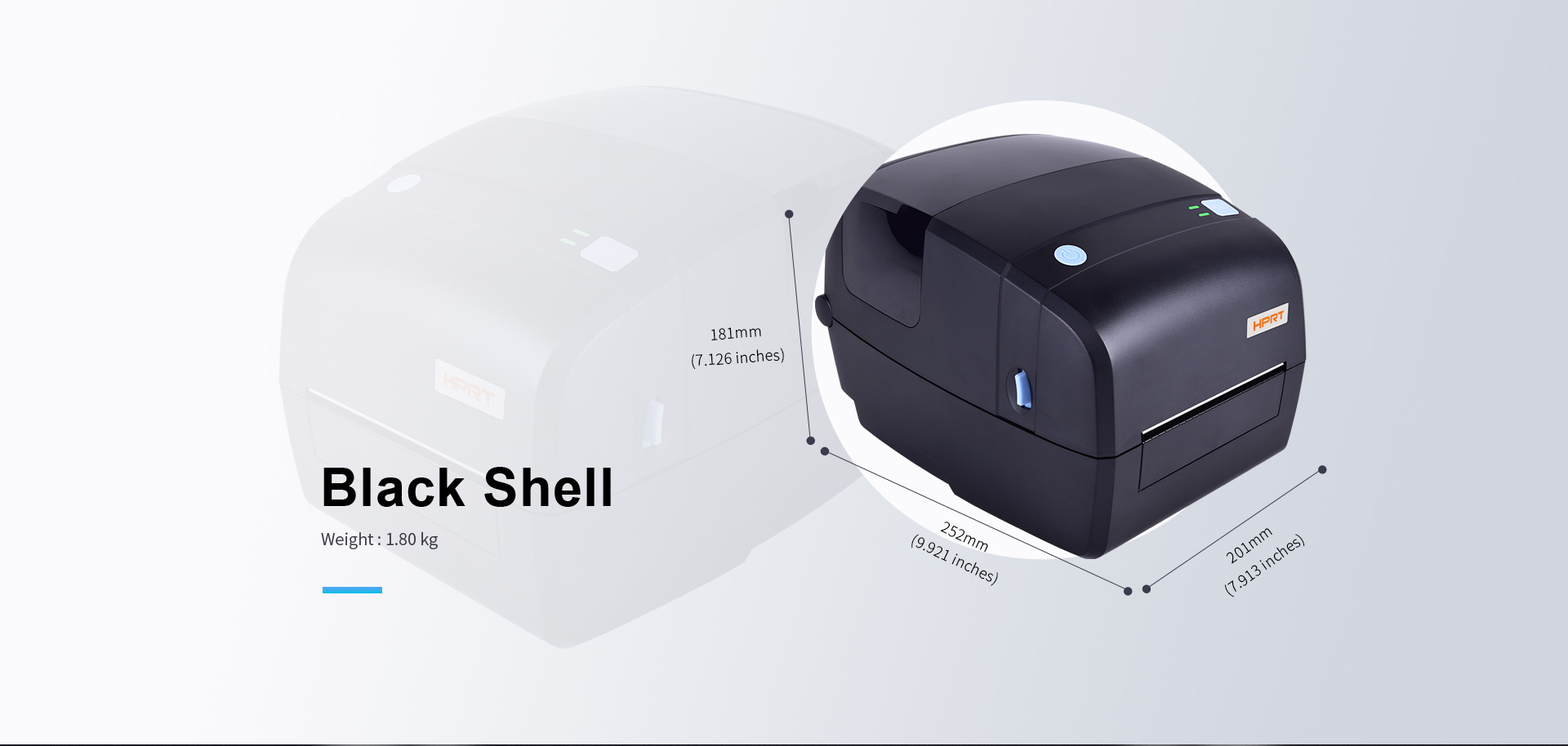

| Physical Characteristic | Dimension (L×H×W) | 252×201×181 mm | |
| Weight | 1.95 kg | ||
| Options & Accessory | Black E4P External label Peeler Module, Black E4GC External Cutter Module, External Label Roll Holder | ||
| Agency Approval | CE EMC(EN 55022 Class B), FCC EMC(Class A), CCC, RoHS | ||
