• 300-meter ribbon capacity
• Dual-wall frame, robust and sturdy structure

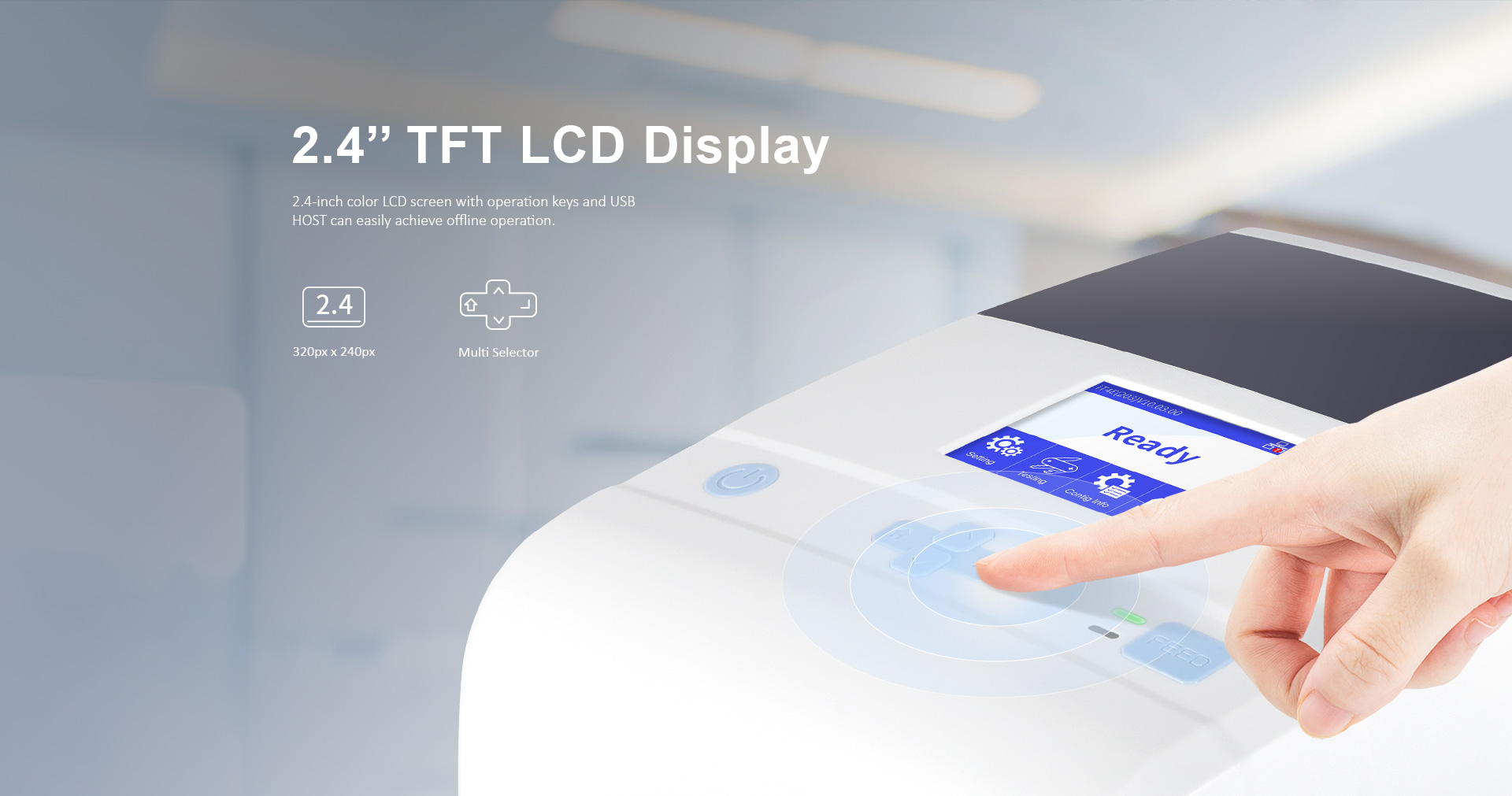

• 2.4” colour LCD screen with operation keys, configuring printer without PC

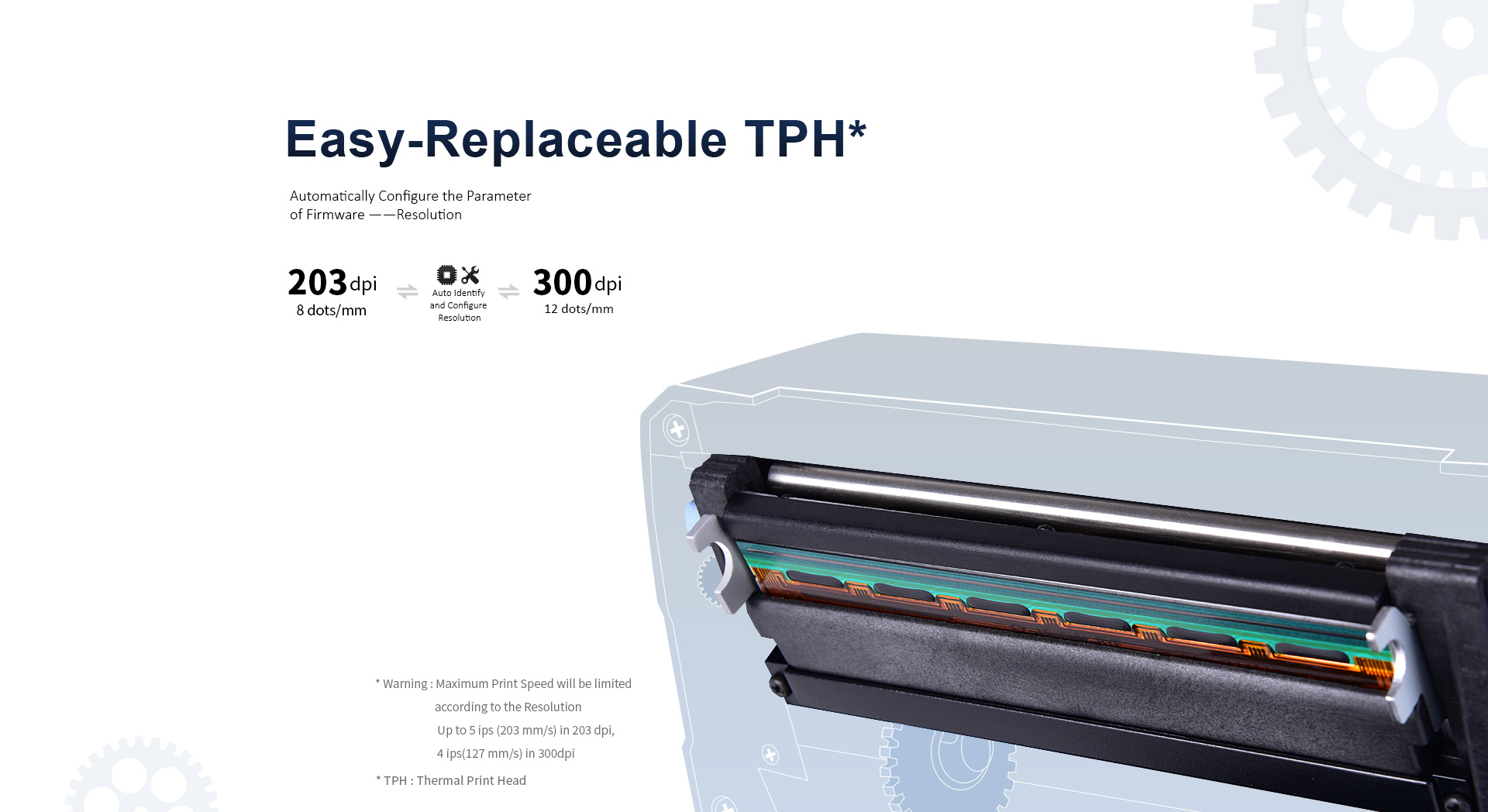

• Available in 203dpi and 300dpi resolution, firmware automatically detects TPH resolution and switches accordingly
• Two pairs of transmissive sensors to support different type media
• USB HOST interface for stand-alone applications
• Compatible with ZPL-II, EPL2 and DPL protocols
• Bundled with Bartender labeling software and Seagull Windows driver
，
| Printing | Printing Method | Thermal transfer/Direct thermal | |
| Resolution | 203 dpi (8 dots/mm) | ||
Max.Printing Speed | 5 ips (203dpi) | ||
| 4 ips (300dpi) | |||
Max.Printing Width | 108 mm(203dpi),106 mm(300dpi) | ||
Max.Pringting Length | 2,286 mm(203dpi),1,524 mm(300dpi) | ||

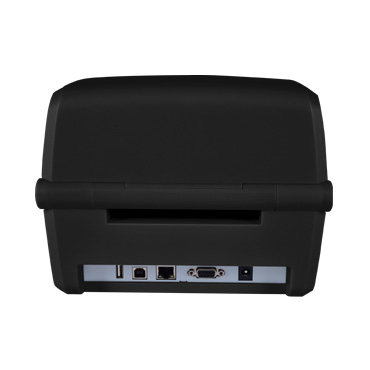

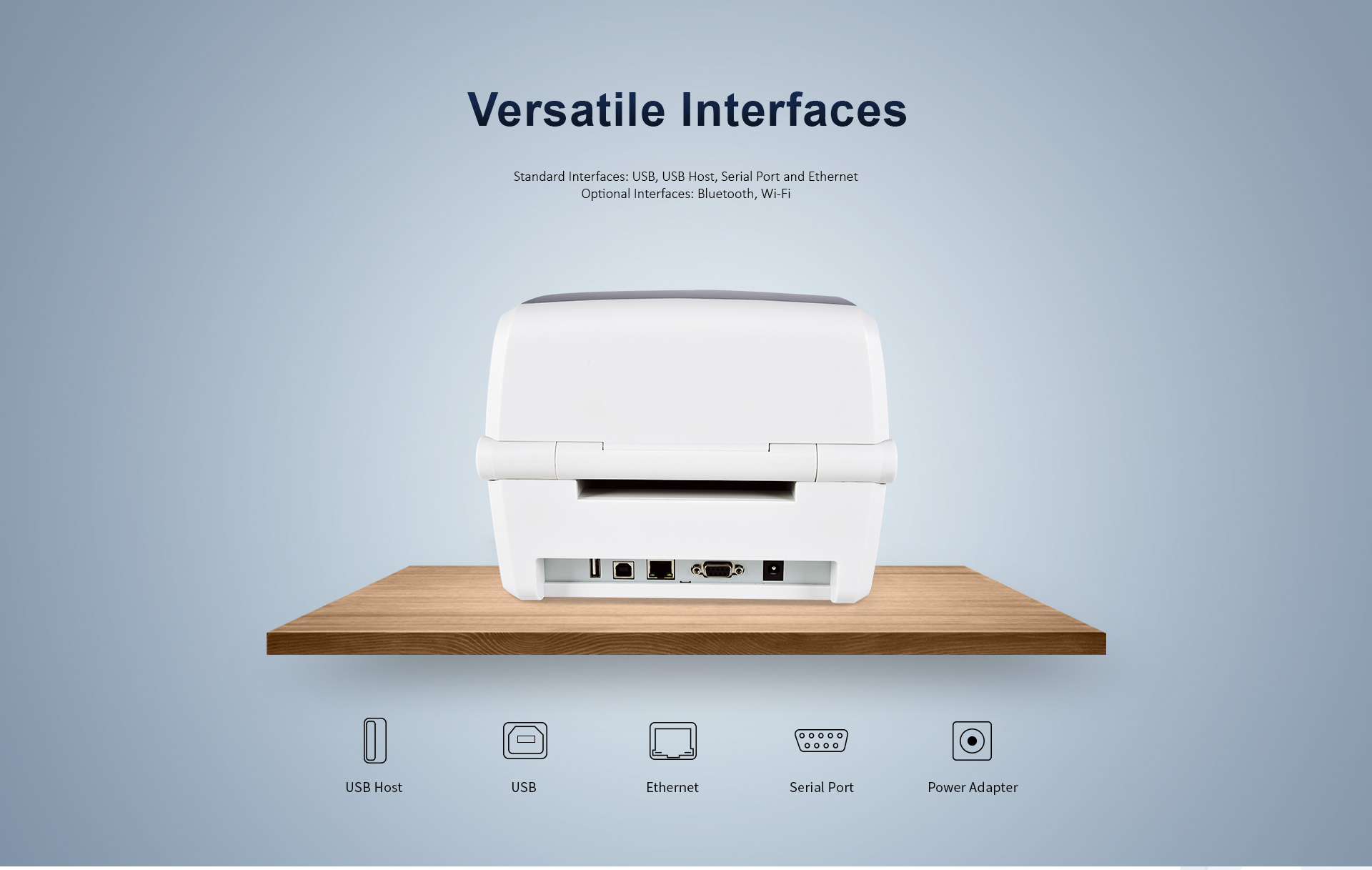

| Interface | Standard | USB Type B, RS232, Ethernet, USB HOST | |
| Optional | Bluetooth, Wi-Fi | ||
| Memory | RAM | 128 MB | |
| Flash | 256 MB | ||
| Detection | Sensor | Print Frame Open Detect, Ribbon End Detect, Paper Out Detect, TPH Over Heating Detect,2 Fixed See-through sensor, Full Range Reflective Sensor | |
| Media | Types | Continuous Paper, Gap, Black Mark, Punched Hole Label | |
| Width | 1''(25.4)-4.65''(118 mm), include the liner | ||
| Thickness | 0.002''(60um)-0.01''(250um) | ||
Label Roll Diameter | 5''(127 mm) Max | ||
| Core Diameter | 0.5''(12.7 mm), 1''(25.4 mm). 1.5''(38 mm) | ||
| Ribbon | Type | Wax,Wax/Resin,Resin | |
| Width | 1.18''(30 mm)-4.33''(110 mm) | ||
| Length | 984'(300 m) | ||
| Core Diameter | 1''(25.4 mm) | ||
| Software | Label Design Software | Bartender Ultralite | |
| Driver | HPRT Driver：Windows XP，Vista,7，8，10.Linux,Mac | ||
| Resident Fonts | Bitmap fonts | 6, 8, 12, 16, 32, OCR A & B. 90°, 180°, 270° rotatable and 10 times expandable in horizontal and vertical directions | |
| TTF fonts | Monotype CG Triumvirate™. 0°, 90°, 180°, 270° rotatable | ||
| Download Fonts | Bitmap fonts | 90°, 180°, 270° rotatable and 10 times expandable in horizontal and vertical directions | |
| Asian fonts | 16x16, 24x24. Traditional Chinese, Simplified Chinese, Japanese, Korean, 90∘,180∘,270∘, rotatable and 8 times expandable in horizontal and vertical directions | ||
| TTF fonts | 90°, 180°, 270° rotatable | ||
| Barcodes | Linear | Code 39, Code 93, EAN 8/13 (add on 2 & 5), UPC A/E (add on 2 & 5), I 2 of 5 & I 2 of 5 with Shipping Bearer Bars, Codabar, Code 128 (subset A, B, C), EAN 128, RPS 128, UCC 128, UCC/EAN-128 K-Mart, Random Weight, Post NET, ITF 14, China Postal Code, HIBC, MSI, Plessey, Telepen, FIM, GS1 DataBar, German Post Code, Planet 11 & 13 digit, Japanese Postnet, I 2 of 5 with human readable check digit, Standard 2 of 5, Industrial 2 of 5 , Logmars, Code 11, Code 49, Cadablock | |
| 2D | PDF417, Data matrix code, Maxi Code, QR code, Micro PDF417, Micro QR code, Aztec code | ||
| Code Page | 850, 852, 437, 860, 863, 865, 857, 861, 862, 855, 866, 737, 851, 869, WINDOWS 1250, 1251, 1252, 1253, 1254, 1255, 1257,UTF-8, UTF-16BE, UTF-16LE,DBCS 932 (JIS), 936(GBK), 949(Koran), 950(BIG5) | ||
| Graphics | Resident graphic file types are BMP and PCX, other graphic formats are converted by the software download | ||
| Control Panel | Power switch button, FEED button, 2 indicating LEDs | ||
| LCD Display | N/A | ||
| RTC Function | N/A | ||
| Power Supply | External AC/DC switching power adapter, AC 100V-240V/DC 24V/2A/48W,Peak 5A | ||
| Environment | Operation | 5 to 50℃@ humidity 25% to 85% non-condensing | |
| Storage | -40 to 60℃@ humidity 10% to 90% non-condensing | ||

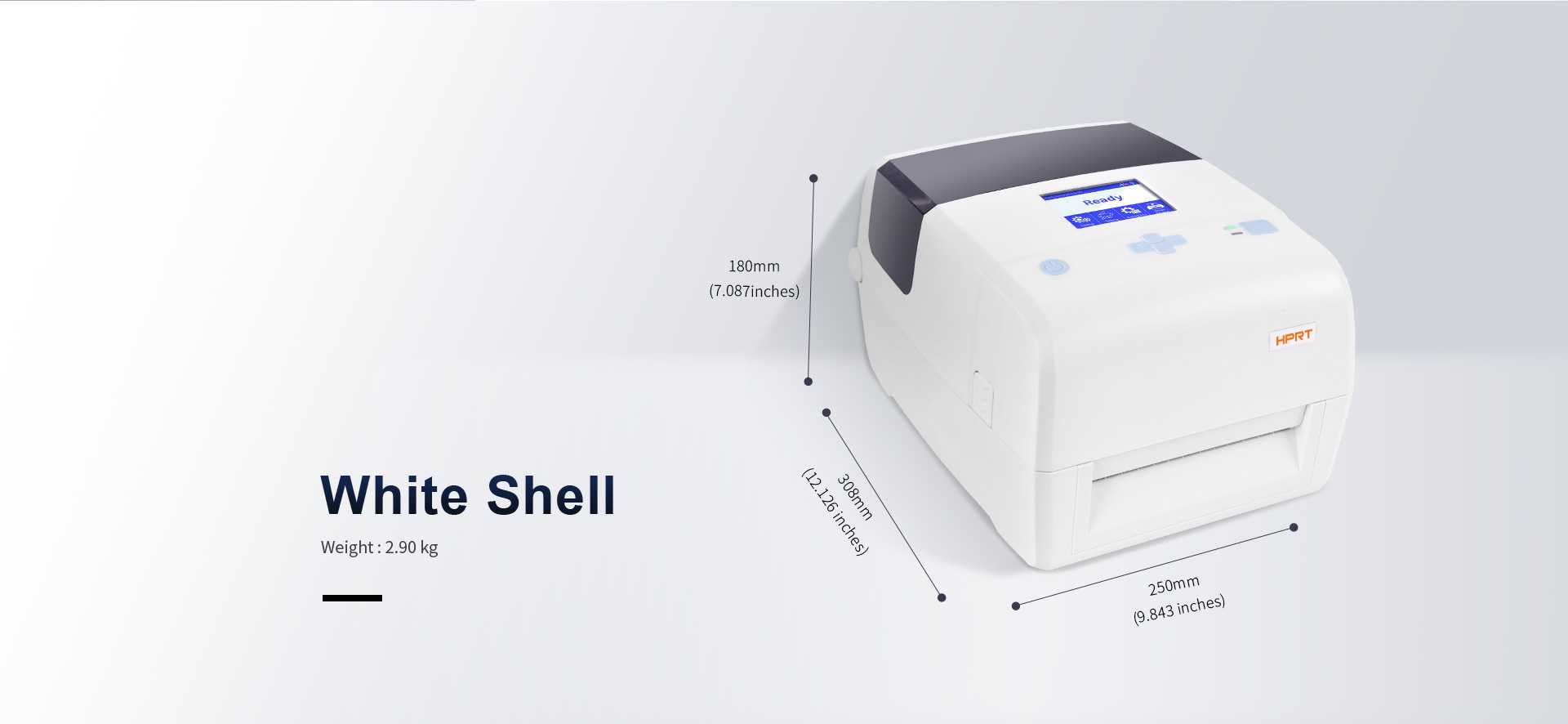

| Physical Characteristic | Dimension (L×H×W) | 308×250×180 mm | |
| Weight | 2.9 kg | ||

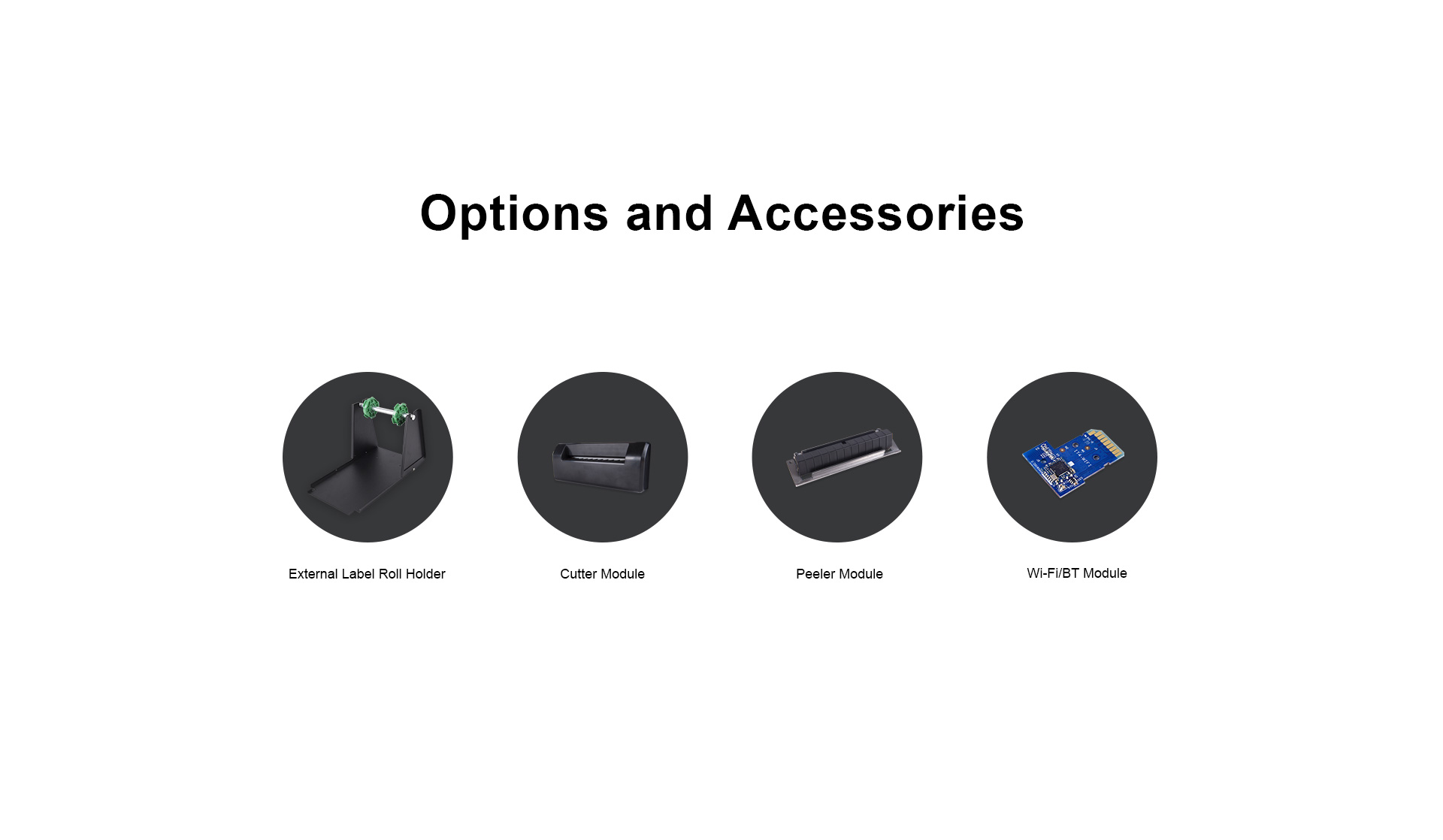

| Options & Accessory | Peeler Module, Cutter Module, External Label Roll Holder | ||
| Agency Approval | CE EMC(55022 Class B), FCC EMC(Class A), CCC, RoHS | ||
