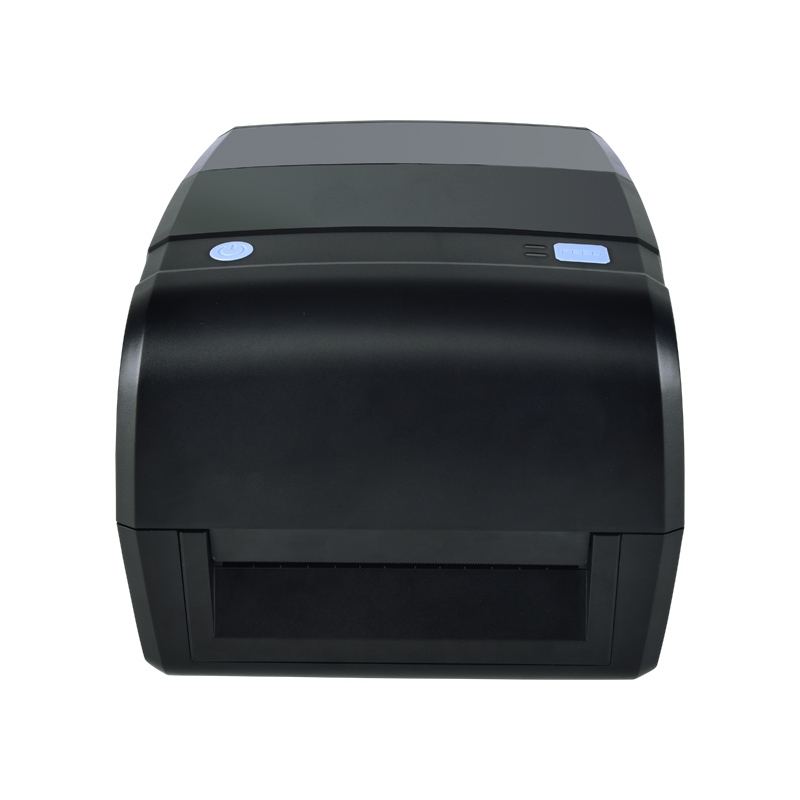

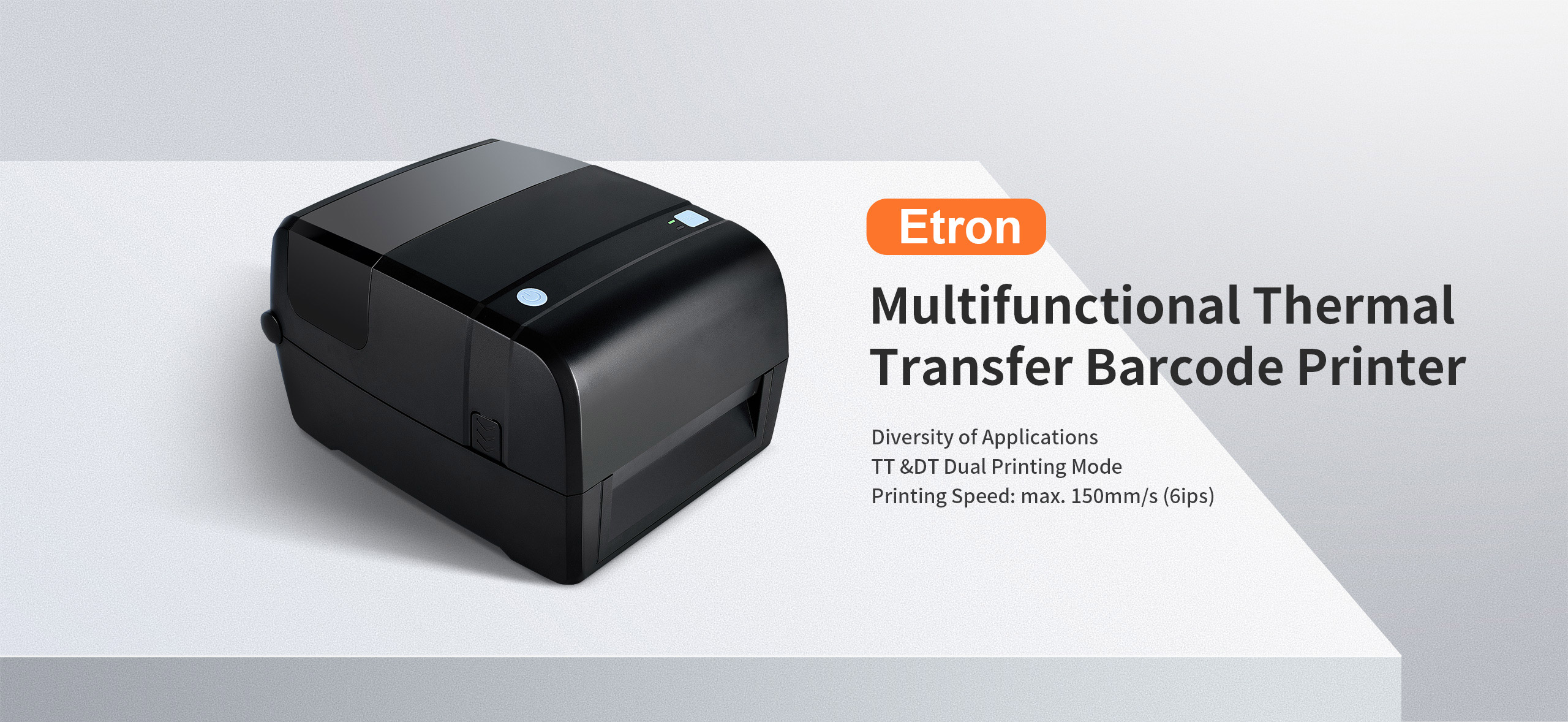

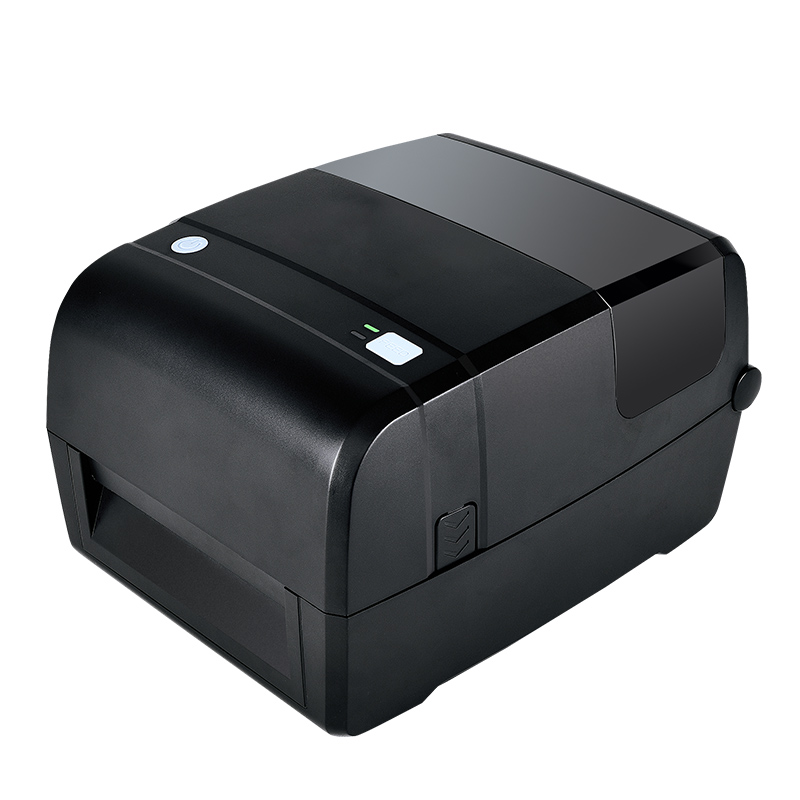

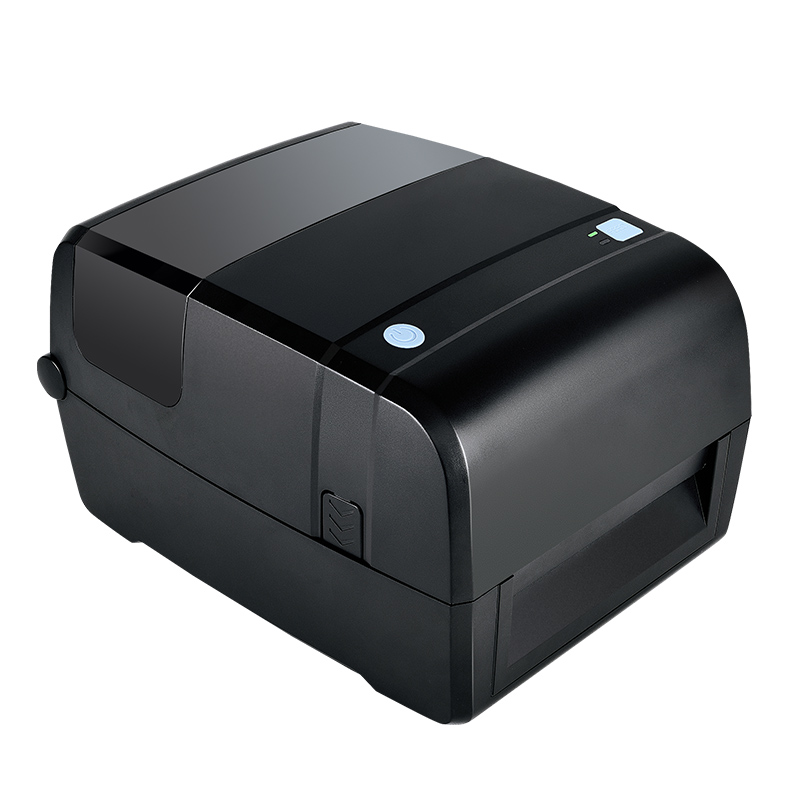

• Standard thermal transfer desktop barcode printer with 300-meter ribbon supported
• The modular design of print head makes the disassembly and assembly easy.
• With super large storage, DDR2 RAM 16 MB, Flash 16 MB
• With free label editing software Bartender to make the label editing convenient and easy
• With various media to meet the demand of wide area.

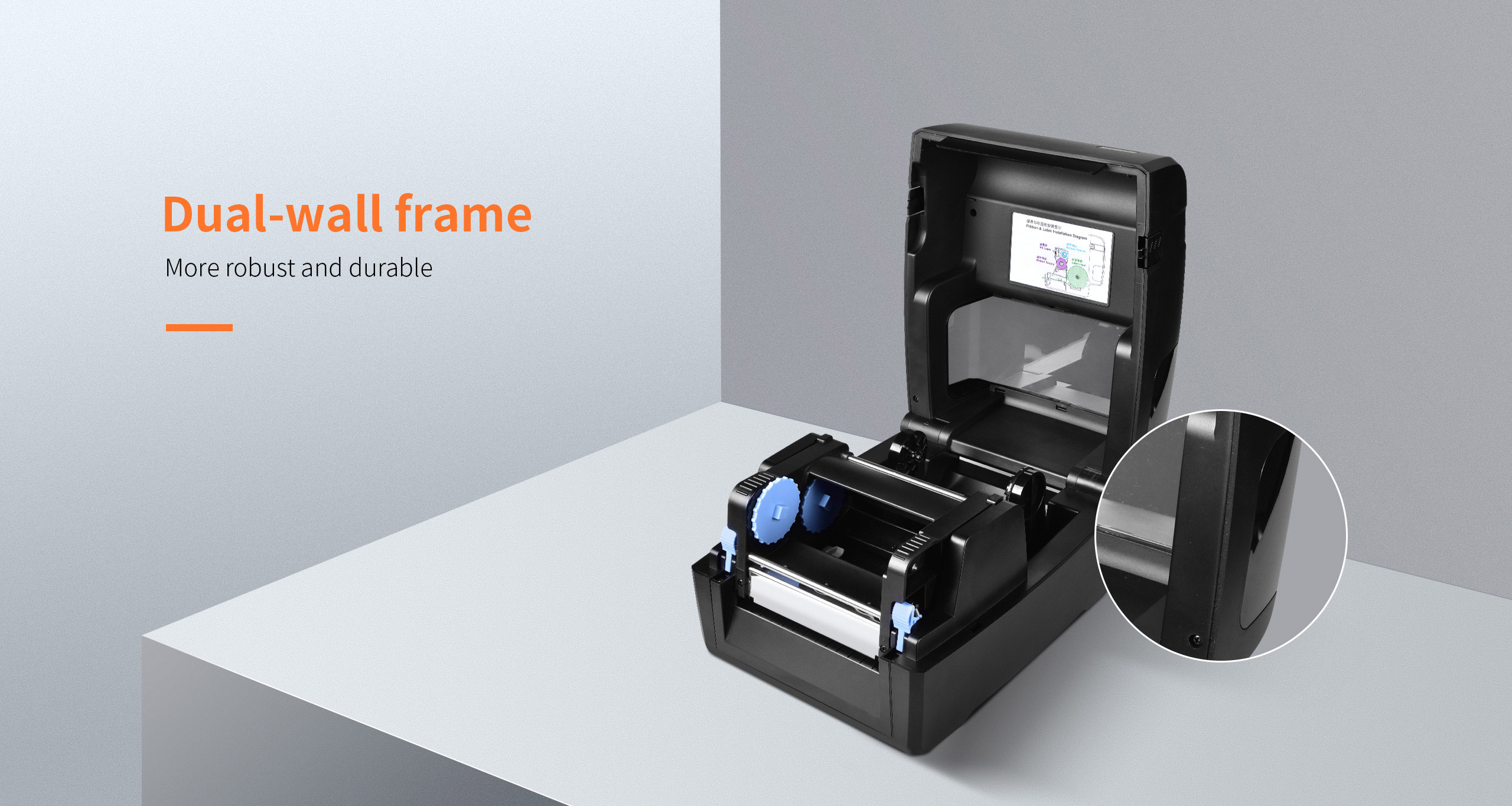

• Refined black housing with printer mechanism,stable and durable.
，
| Printing | Print Method | Thermal transfer | |
| Resolution | 203dpi, OPT 300dpi | ||

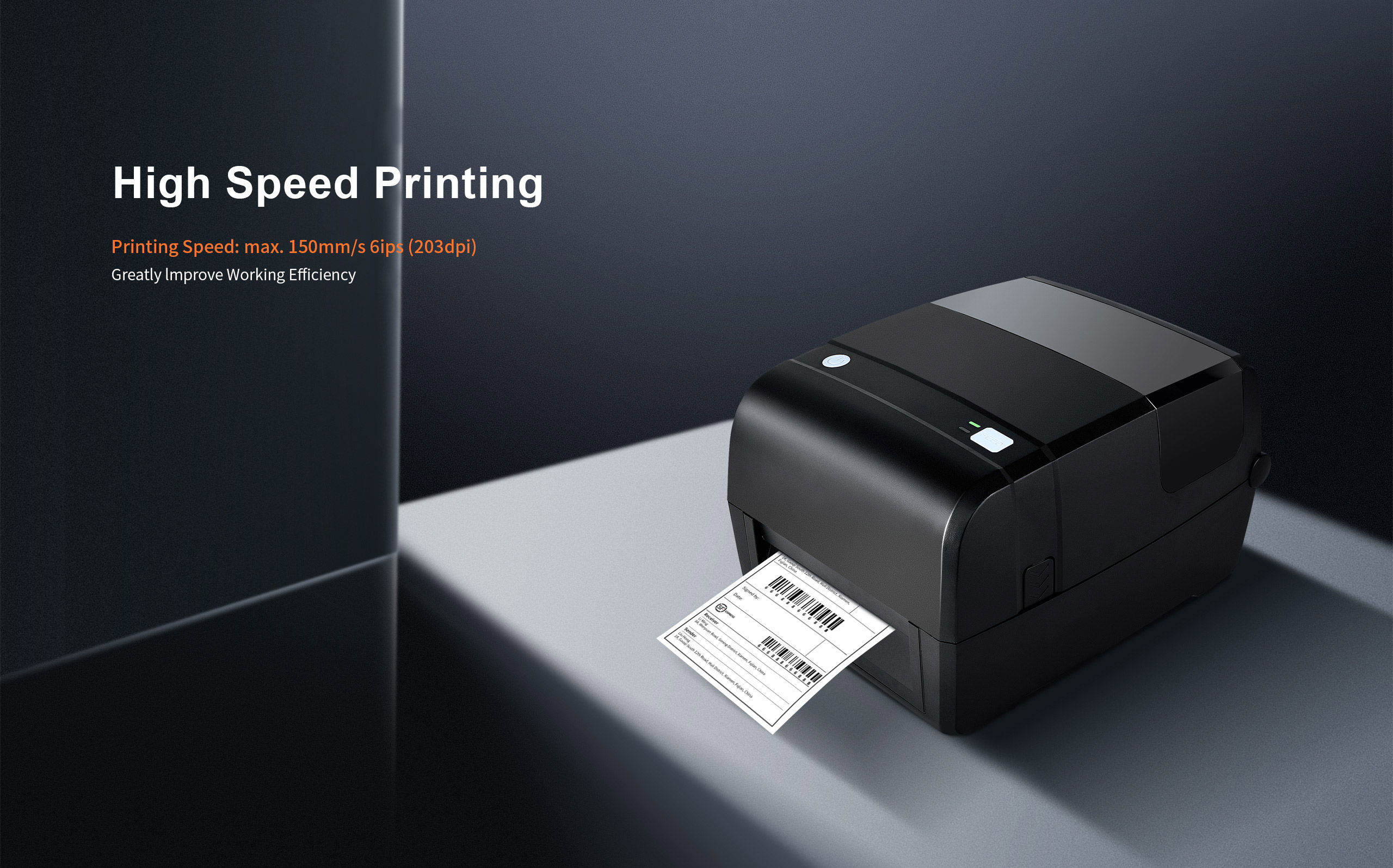

| Max. Printing Speed | 152mm/s, 100 mm/s | ||
| Max. Printing Width | 108mm/106mm | ||
| Max. Printing Length | 1200mm | ||
| CPU | 32-bit RISC CPU | ||
| Memory | RAM | 16MB | |
| Flash | 16MB | ||

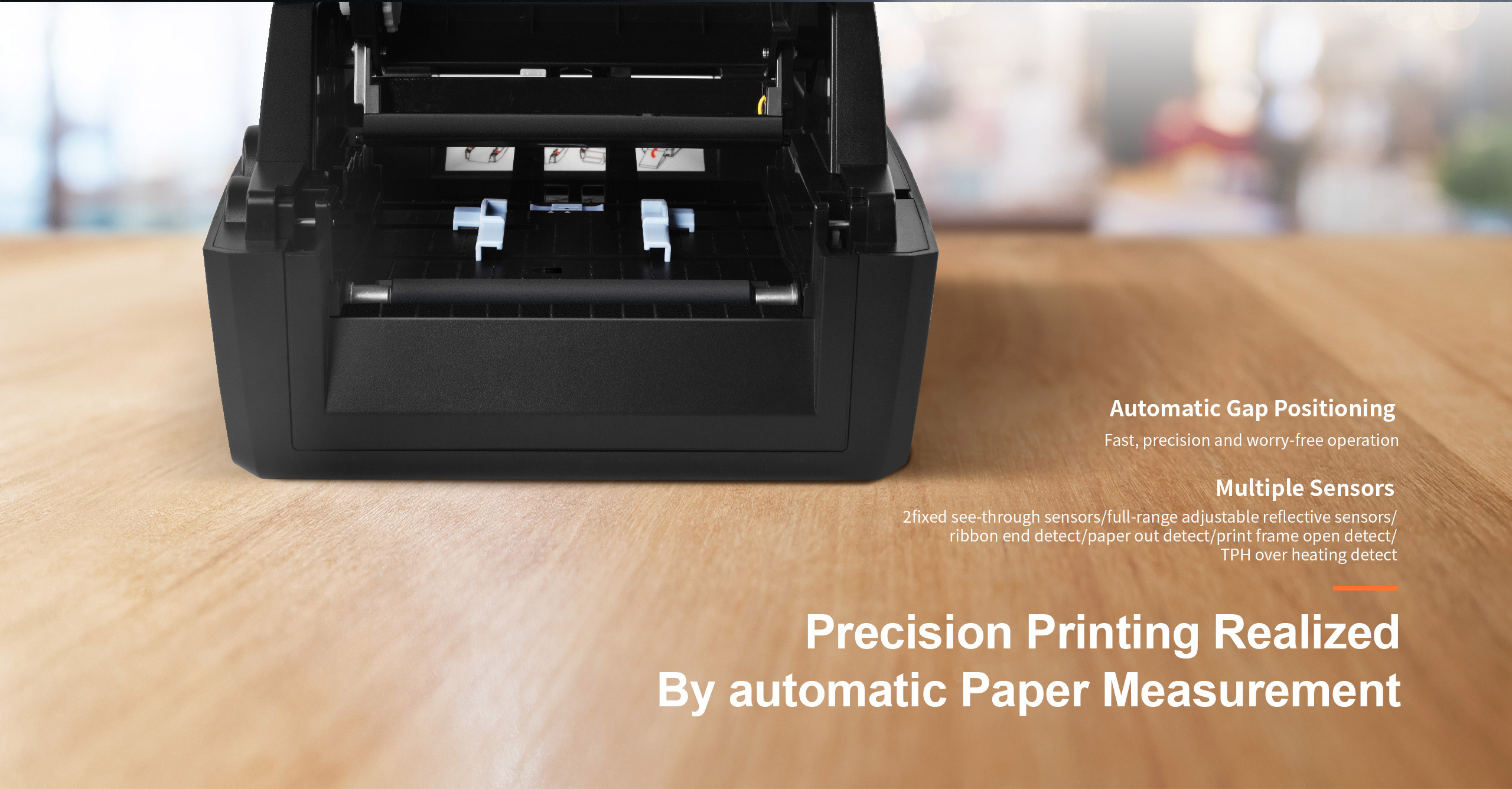

| Detection | Sensor | Out-of-paper detection, gap detection, ribbon detection, black mark detection, cover-opening detection | |

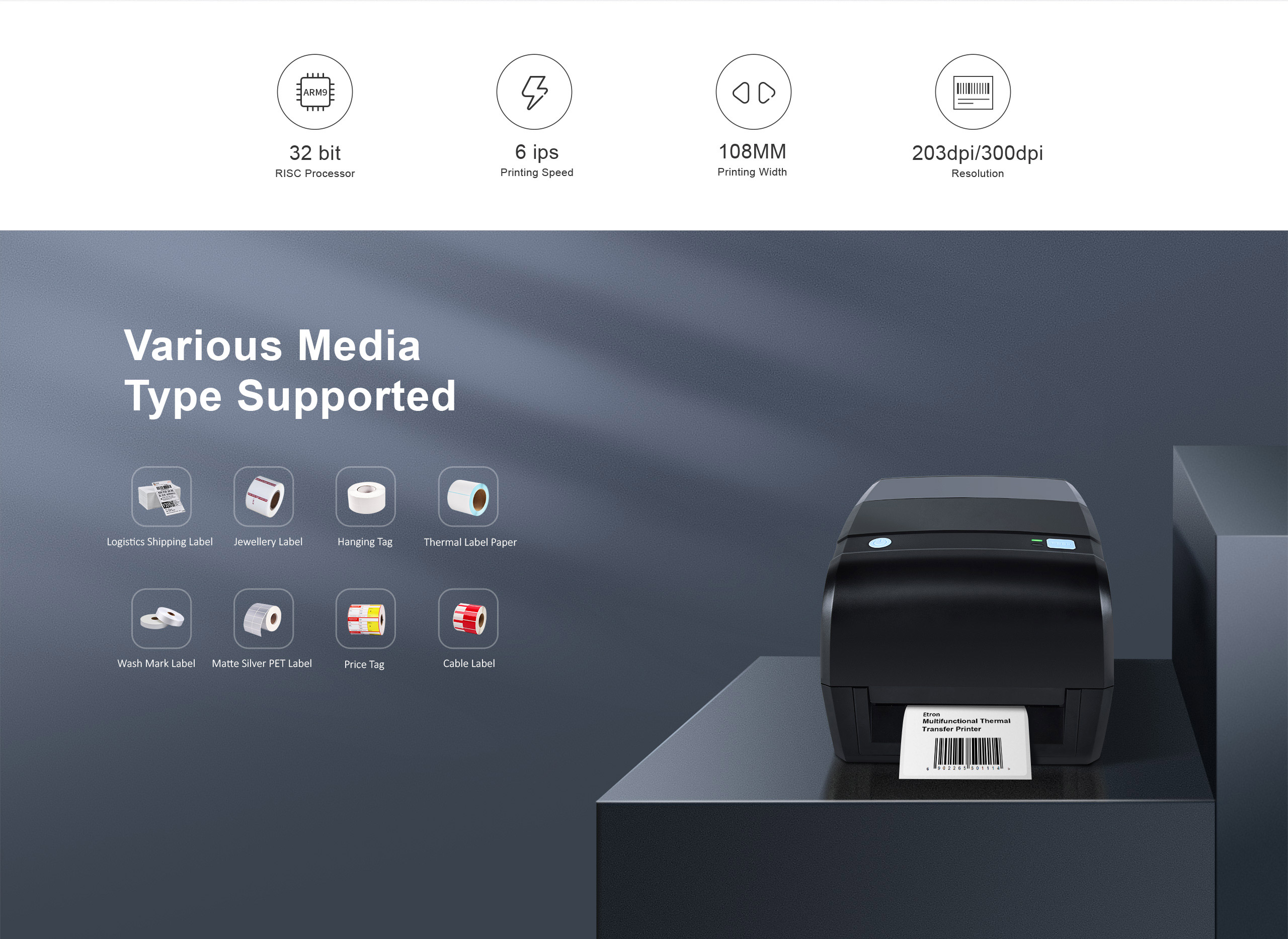

| Media | Types | Black mark label or punched hole label or folding or rolling die cutting label | |
| Width | 1'' (25.4mm) ‒ 4.33'' (110mm) | ||
| Height | 0.0787'' (20mm)‒ 9.84'' (250mm) | ||
| Thickness | 0.002''(60um)-0.01''(250um) | ||
| Label Roll Diameter | 5''(127 mm) Max | ||
| Core Diameter | 0.5''(12.7 mm), 1''(25.4 mm). 1.5''(38 mm) | ||
| Ribbon Barcode | Type | Wax, Wax/Resin, Resin | |
| Width | 2'' (50mm) ‒ 4.38'' (118mm) | ||

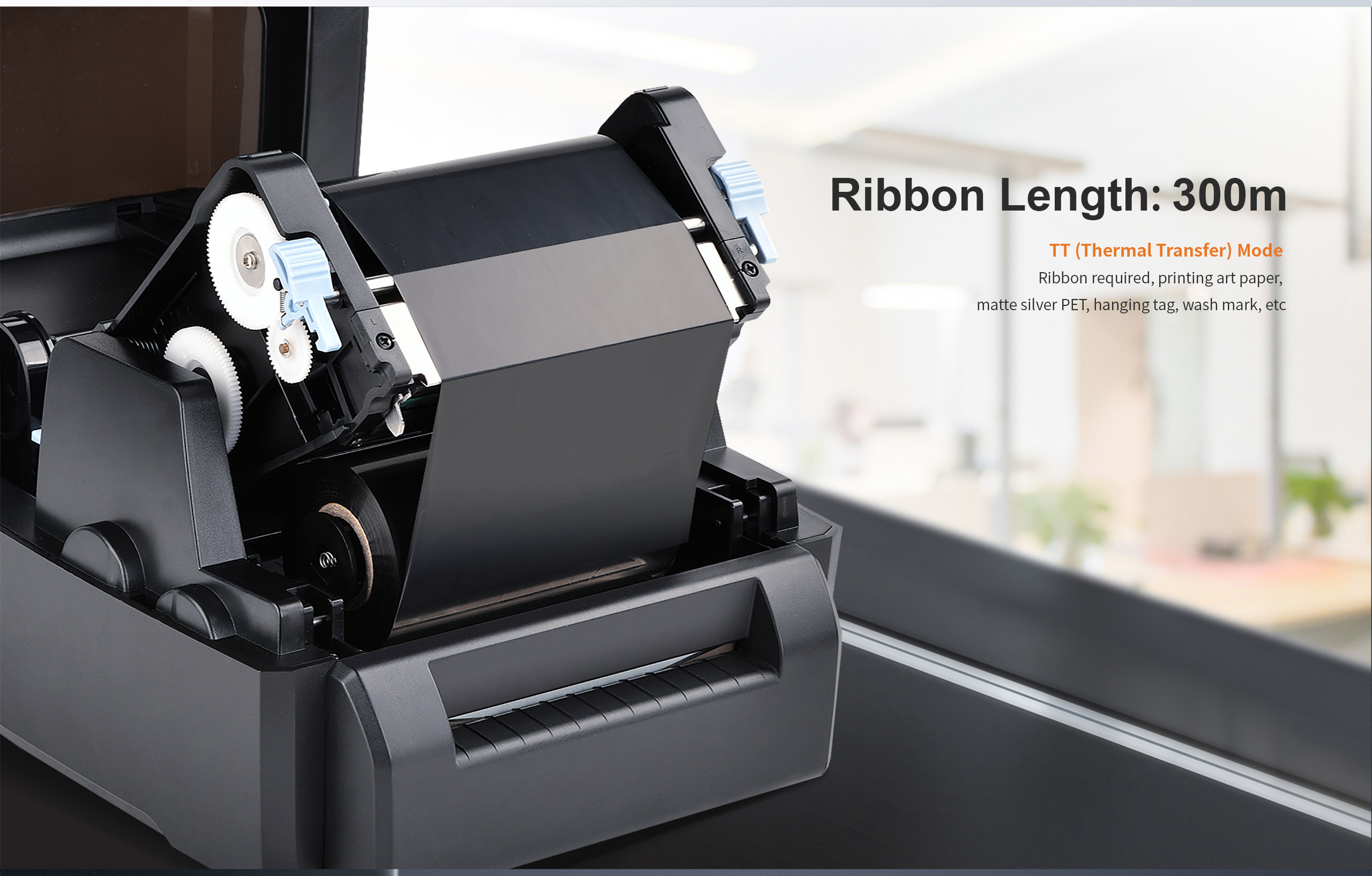

| Length | 984'(300 m) | ||
| Core Diameter | 1''(25.4 mm) | ||

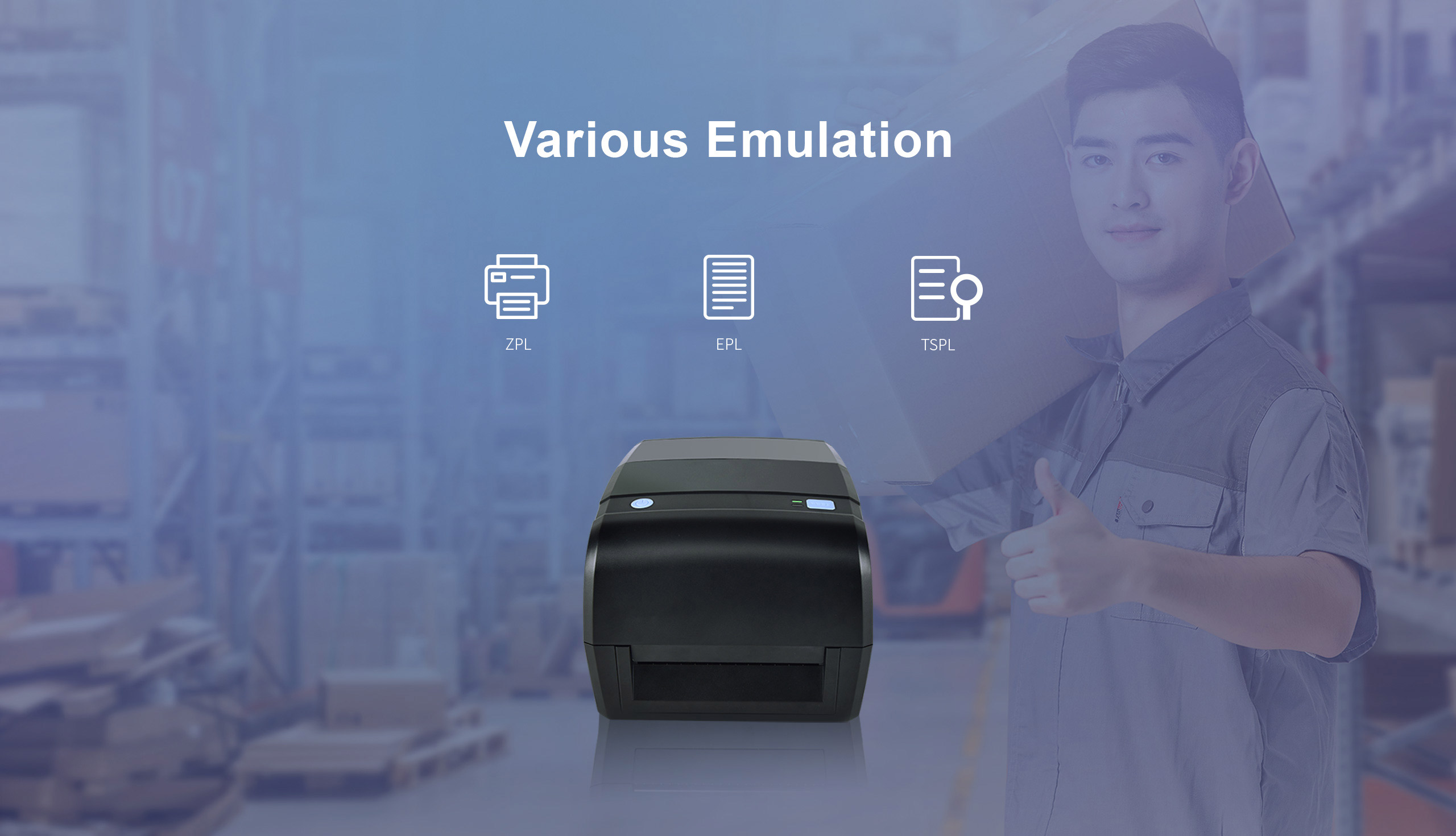

| Programming Language | ZPL, TSPL | ||

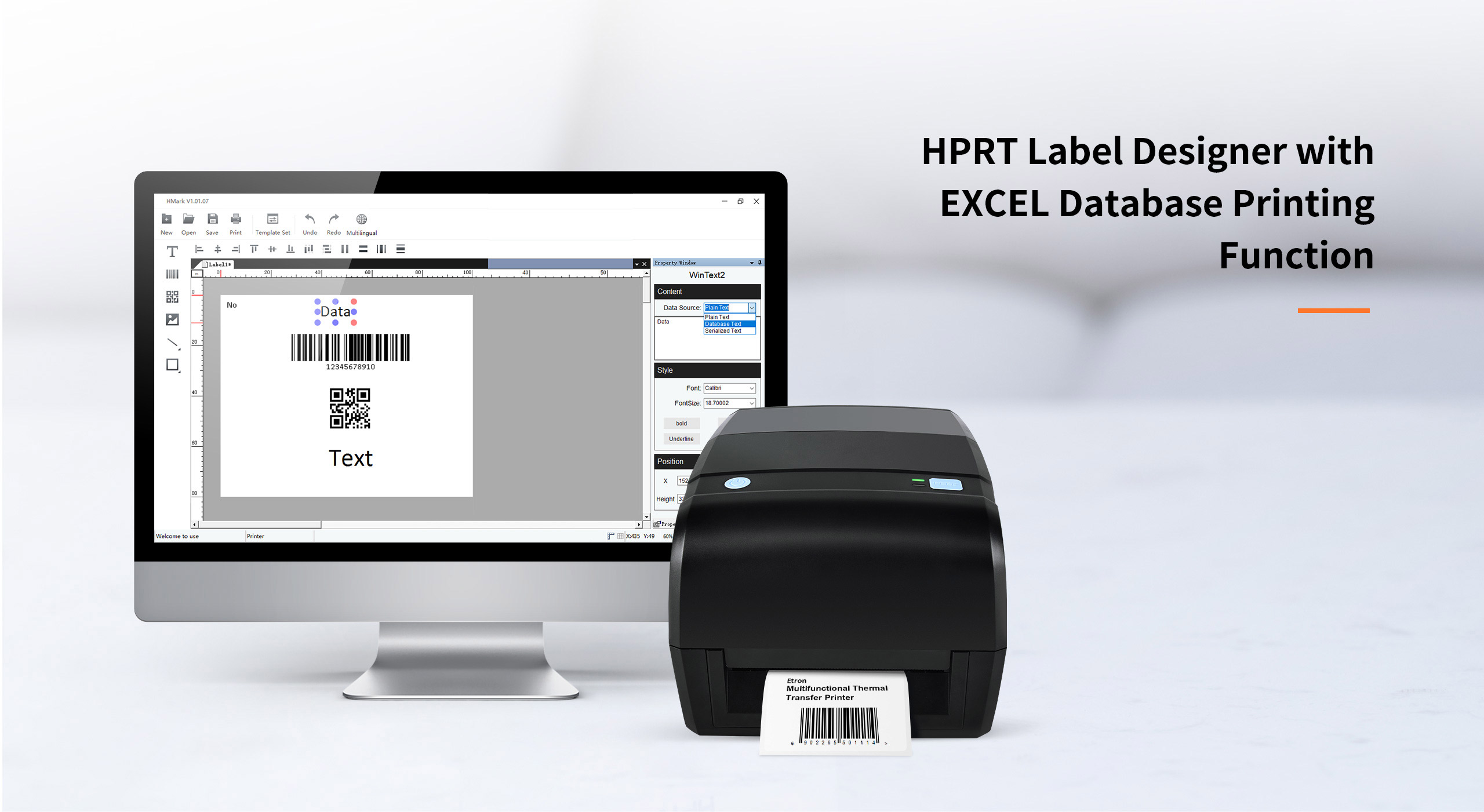

| Software | Label Design Software | HPRT BarTender Ultralite (professional and higher versions are available for trial) | |
| Driver | Windows Vista7,8,10, Server 2012/2016/2018 | ||
| Resident Fonts | Bitmap fonts | 6, 8, 12, 16, 32, OCR A & B. 90°, 180°, 270° rotatable and 10 magnification. | |
| TTF fonts | CG Triumvirate™times expandable in horizontal and vertical directions, simplified Chinese | ||
| Code Pages | DOS437,720,737,755,775,850,852,855,856,857,858,860,862,863,864,865,866, Windows 1250,1251,1252,1253,1254,1255,1256,1257,1258, ISO8859-1,-2,-3,-4,-5,-6,-8,-9,-15 | ||
Barcodes | 1D | Code 39, Code 93, Code 128UCC, Code 128 subset A, B, C, Codabar, Interleave 2 of 5, EAN-8, EAN-13, EAN-128,UPC-A, UPC-E, EAN and UPC 2 (5) digits add-on, MSI, PLESSEY, POSTNET, RSS-Stacked, GS1 DataBar, Code 11 | |
| 2D | PDF417, Maxicode, DataMatrix, QR Code, Aztec | ||

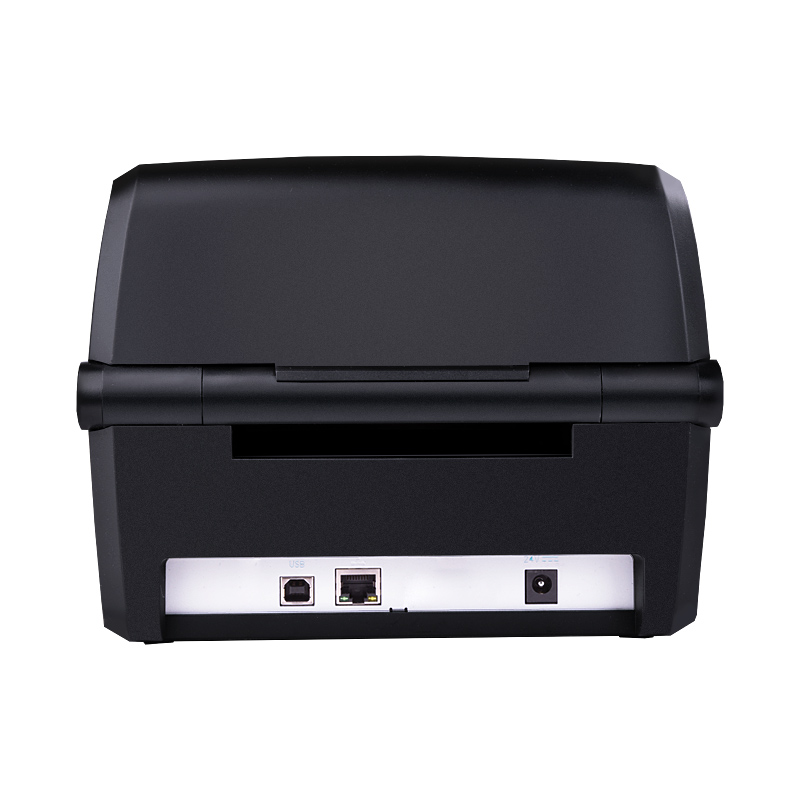

| Interfaces | Standard | USB, Ethernet | |
| Optiona | Bluetooth 4.0/BLE, WiFi | ||
| Control Panel | Two-color status light: standby, abnormal indication Control button: feed button, power button | ||
| Power Supply | Power Switch Input: AC 100-240 V, 50/60 Hz Output: DC 24 V / 2 A | ||
| Environment | Operatio | 41℉(5℃) to 104℉(40℃) , humidity 30% to 85% ,non-condensing | |
| Storage | -4℉(-20℃) to 122℉(50℃), humidity 10% to 90% ,non-condensing | ||

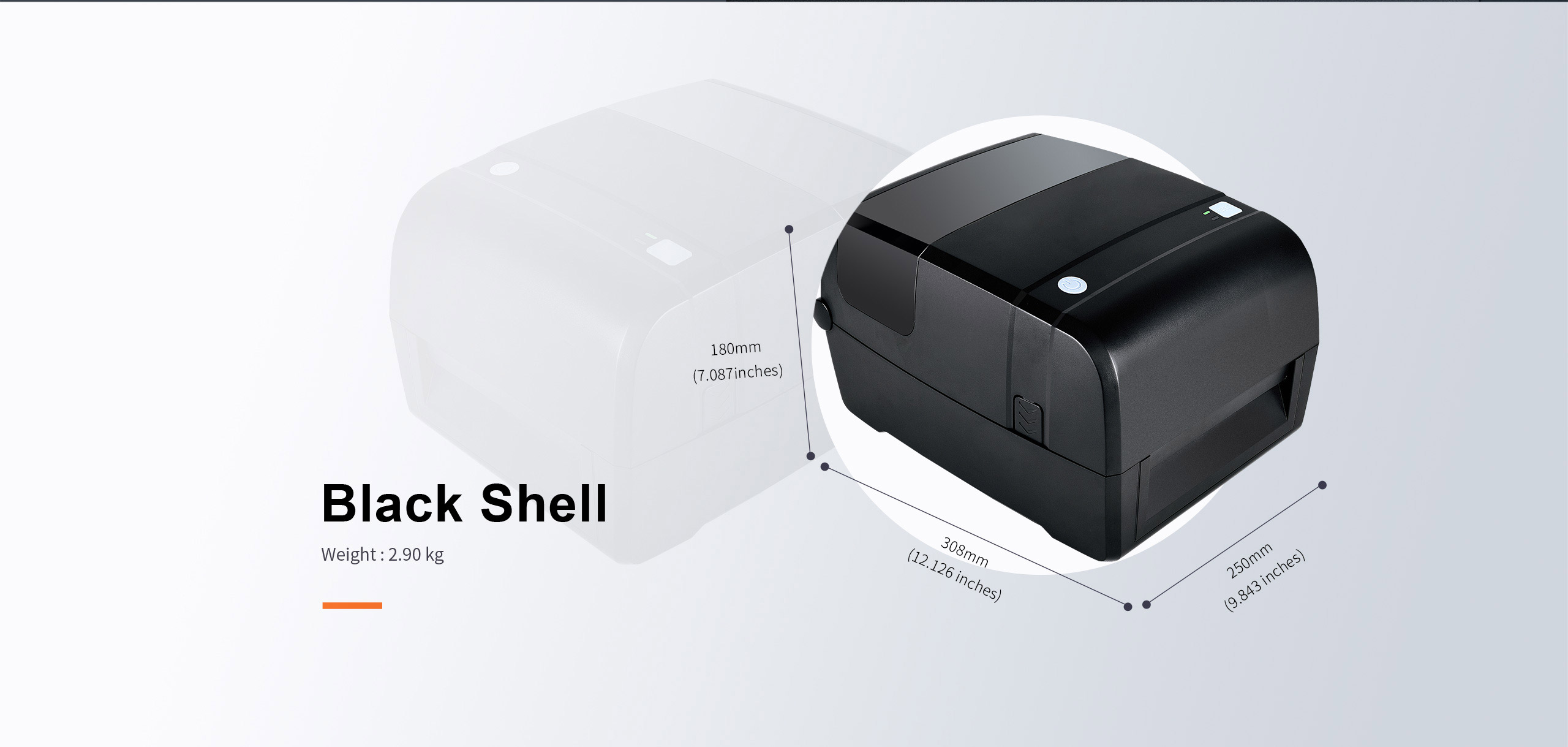

| Physical Characteristic | Dimension(L*H*W) | 308*250*180mm | |
| Weigh | 2.8kg, excluding media | ||

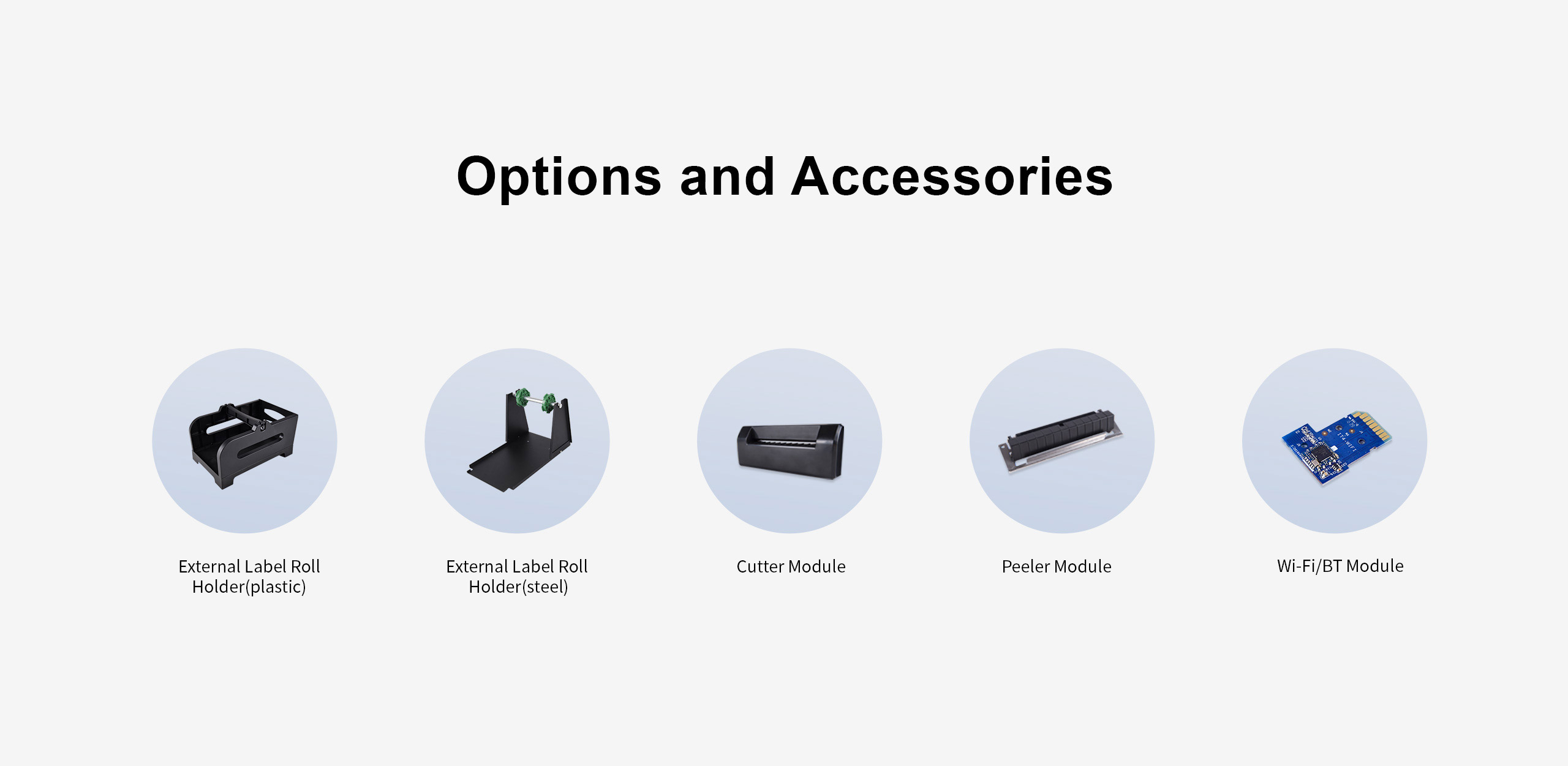

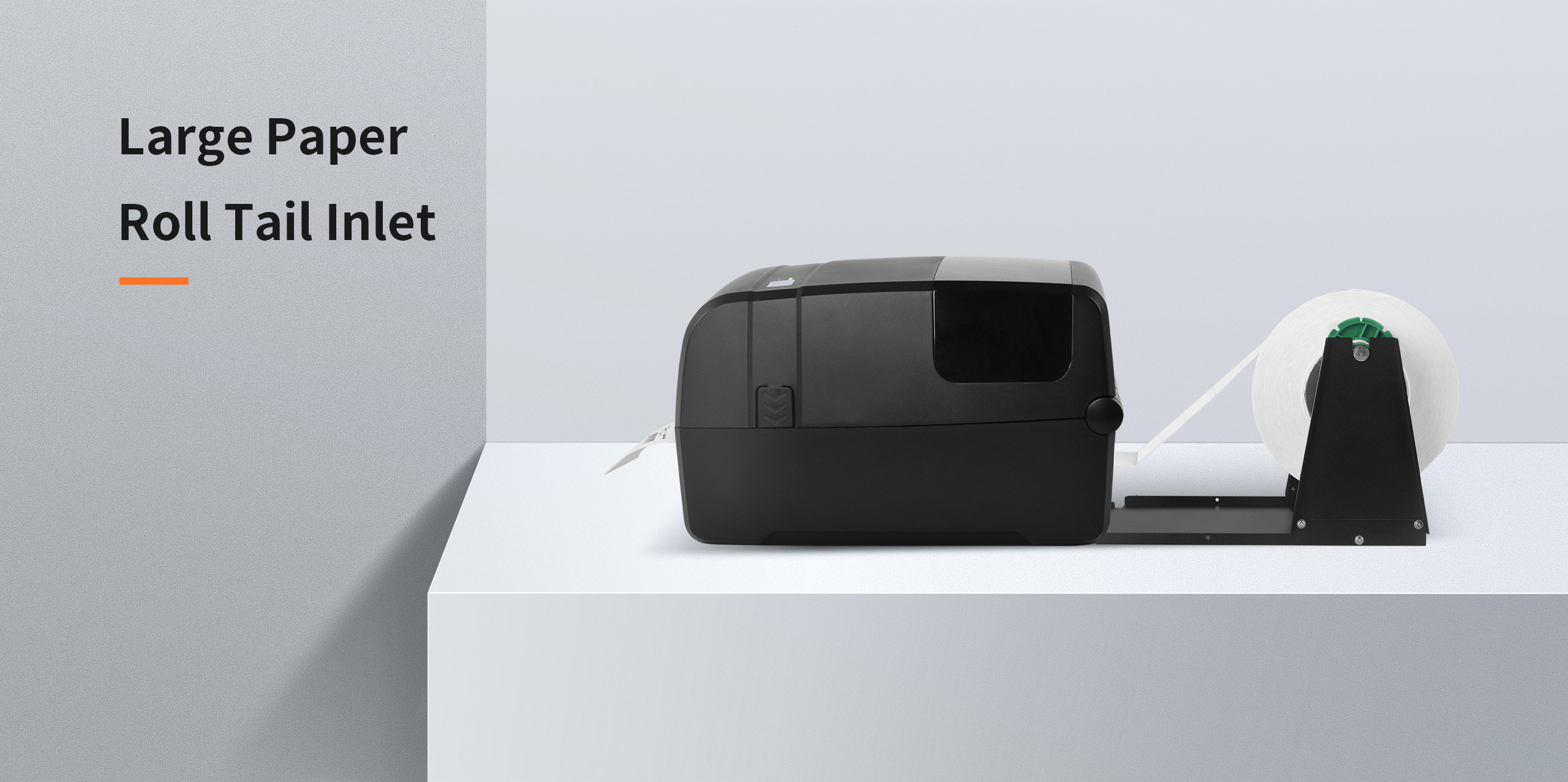

| Options & Accessory | Peeler module, cutter module, external label roll holder | ||
| Agency Approval | CCC,CE,FCC | ||
