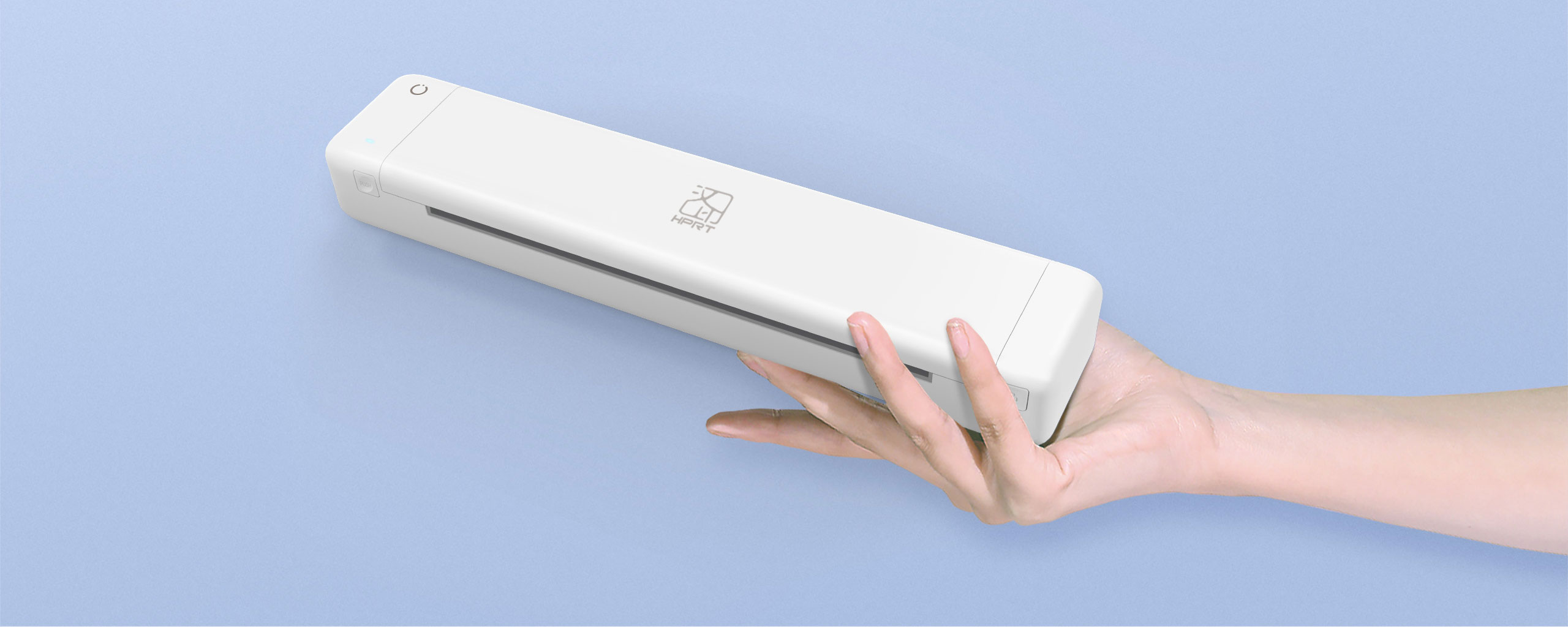

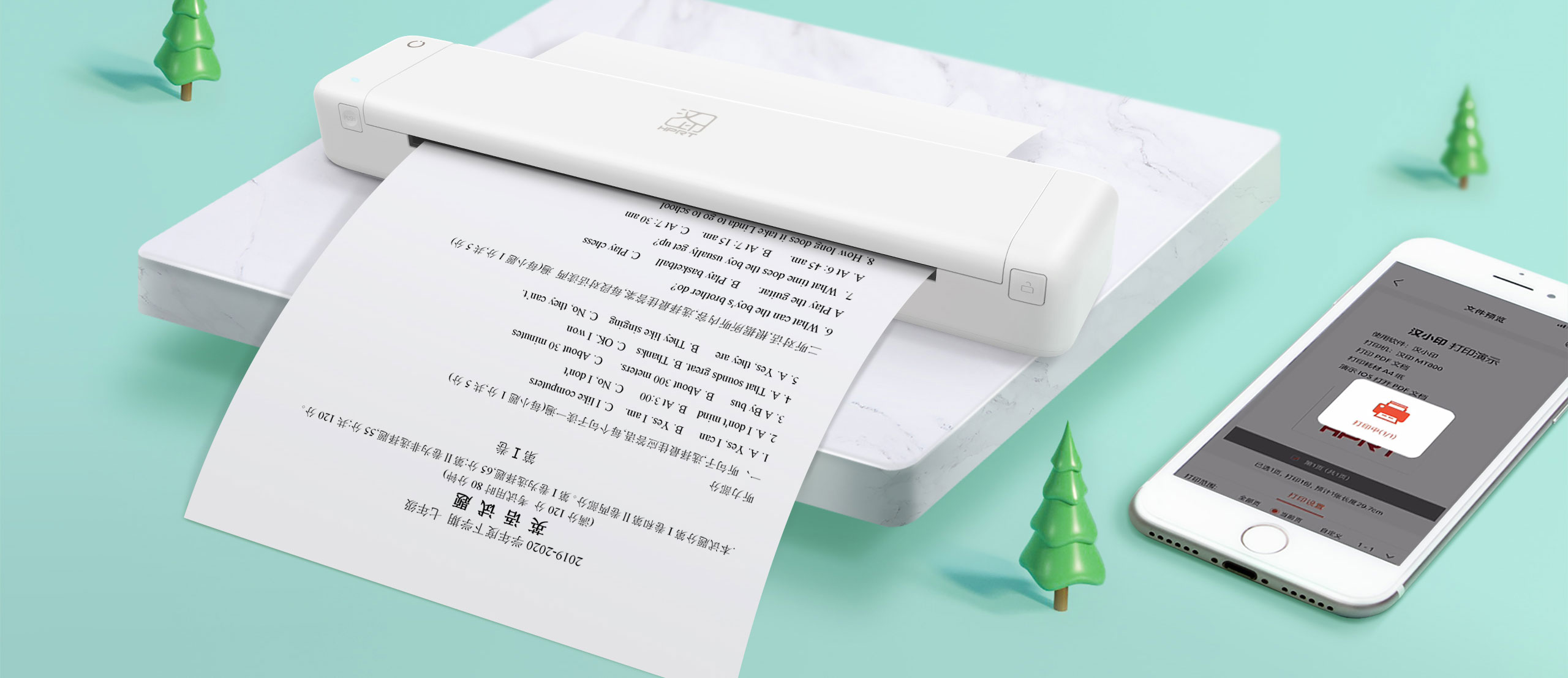

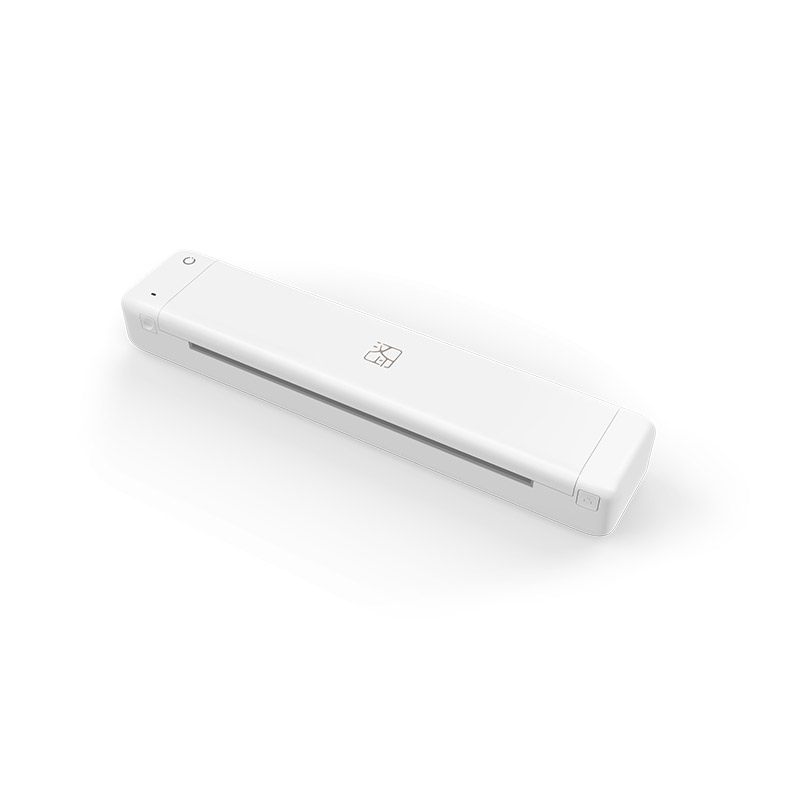

• Compact and portable, easy to carry

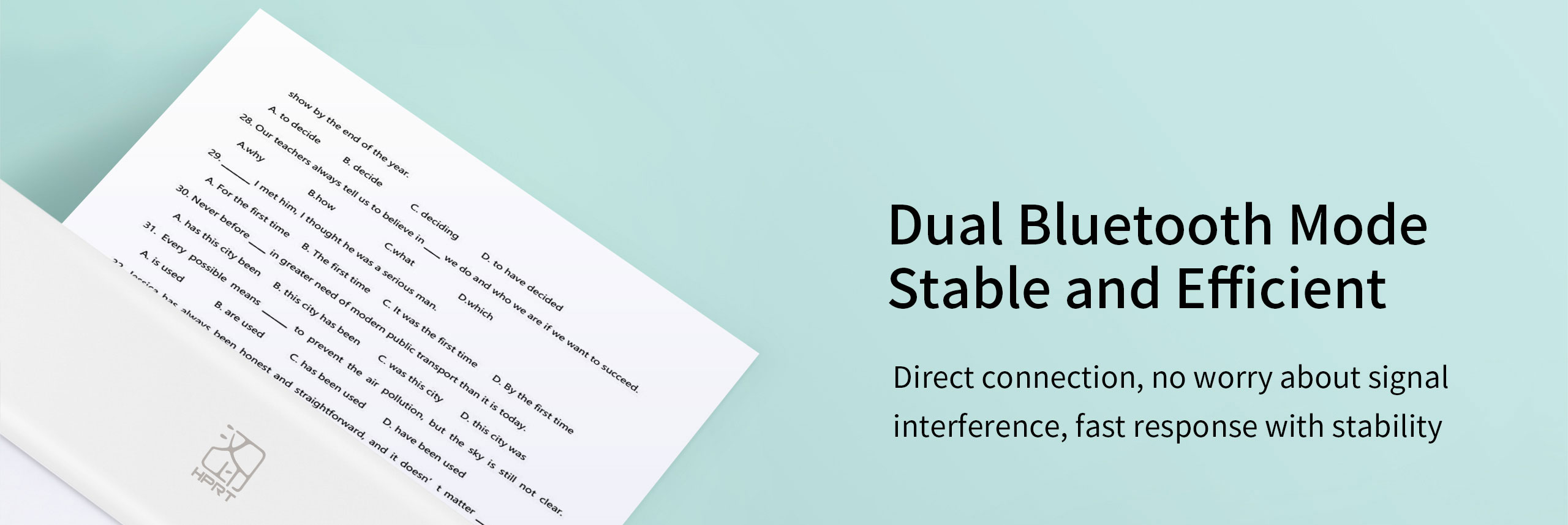

• Dual Bluetooth mode, stable and efficient
• 300DPI high resolution, outstanding result
• Ultra-long standby

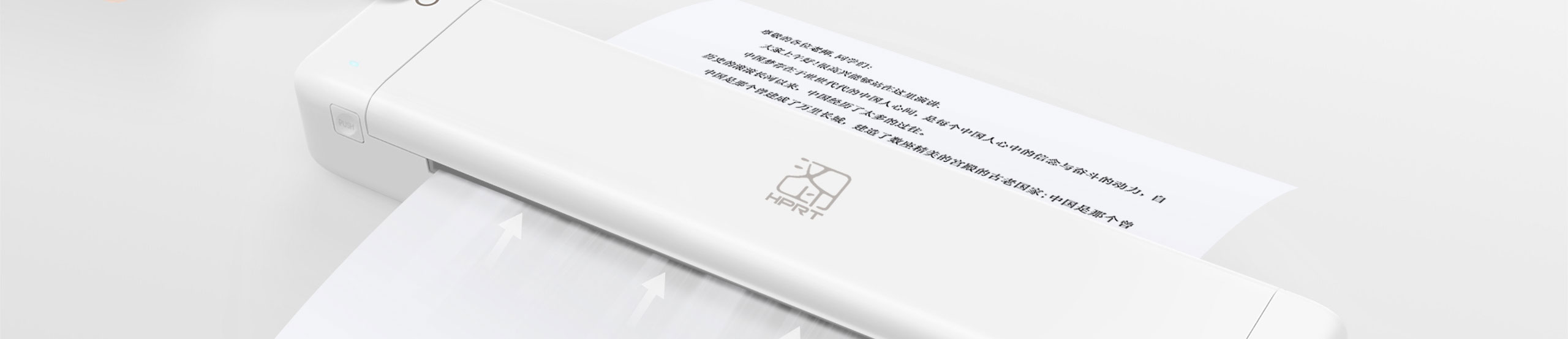

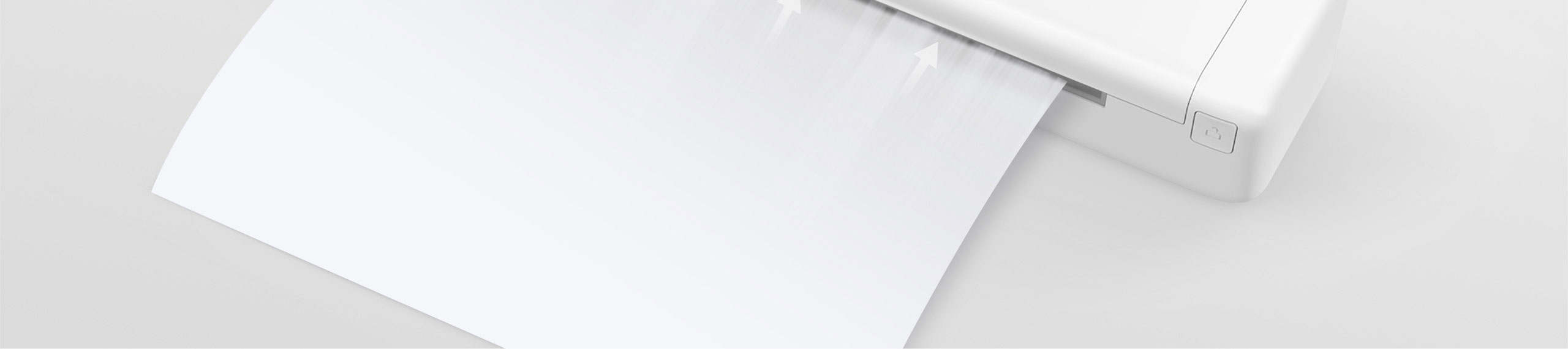

• Auto Paper Feeding
，
| Printing | Print Method | Thermal transfer / Direct thermal | |
| Resolution | 300 dpi | ||
| Print Speed | 15 mm/s | ||
Valid Print Width | 198 mm | ||
| Printing Density | Adjustable from level 1 to level 3 | ||
| Printing Protocol | Bitmap printing | ||
| Interface | Standard | USB Type C(Support direct USB charging)， Bluetooth 3.0/4.0(Installed by Manufacturers) | |
| Memory | Flsah | 2 MB | |
| Ram | 8 MB | ||
| Media | Type | Standard A4 paper, thermal fax paper | |
| Width | 210 mm | ||
| Ribbon | 215mm(W)*14.5mm(Φ),14000mm(L) | ||
| Thickness | 60~90 μm | ||
| Battery | Type | Rechargeable lithium battery | |
| Voltage | 7.4V | ||

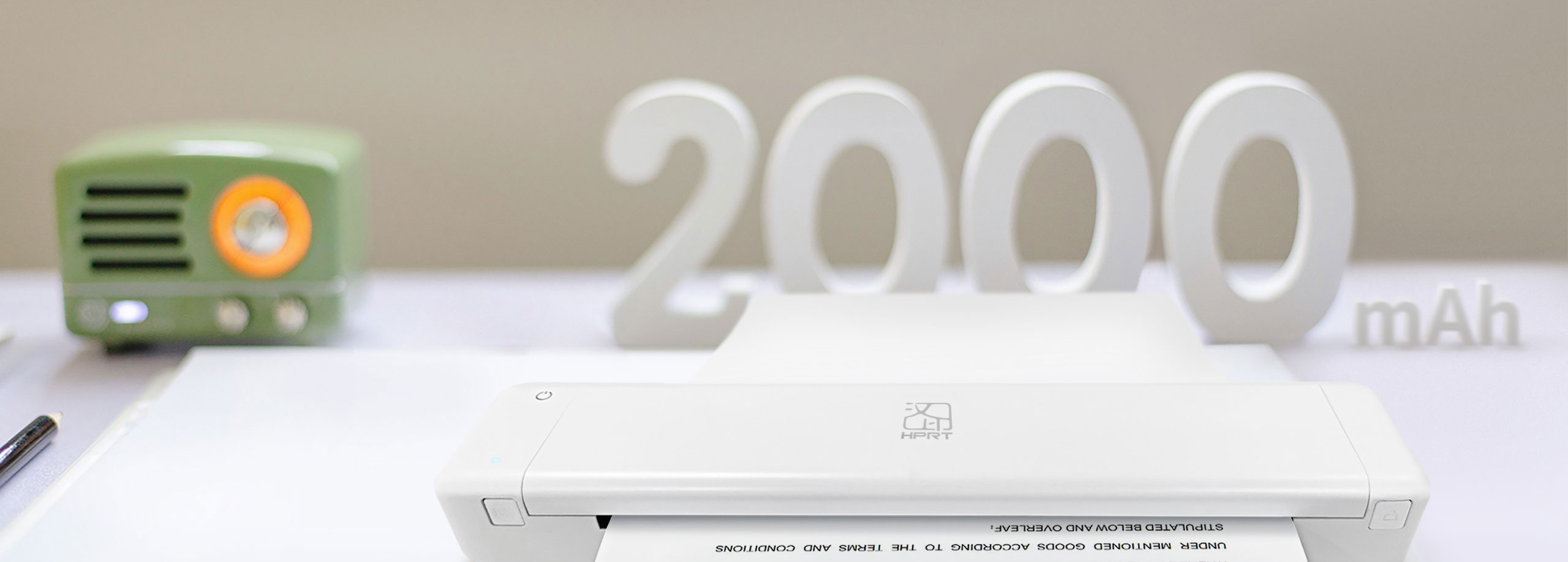

| mAh | 2000mAh | ||
| Sensors | Cover open detection, Paper out sensor, Paper positing detection, Paper offset detection, Ribbon detection and TPH temperature detection. | ||
| Electrical | Input | AC 100V ~ 240V, 50/61Hz | |
| Output | DC 5V, 2A | ||
| Dimensions L*W*H | 310.5×63.5×39.5 mm | ||
| Weight | 805g (Contain Ribbon), 735.5g (Without Ribbon) | ||
| Reliability | TPH Life | 50 km | |
| Certificate | CCC/FCC/CE | ||
