•【Easy printing】Direct thermal printing, no toner or ink needed.
•【Fast speed】Up to 4 ips (100mm/s) high speed printing with low noise.

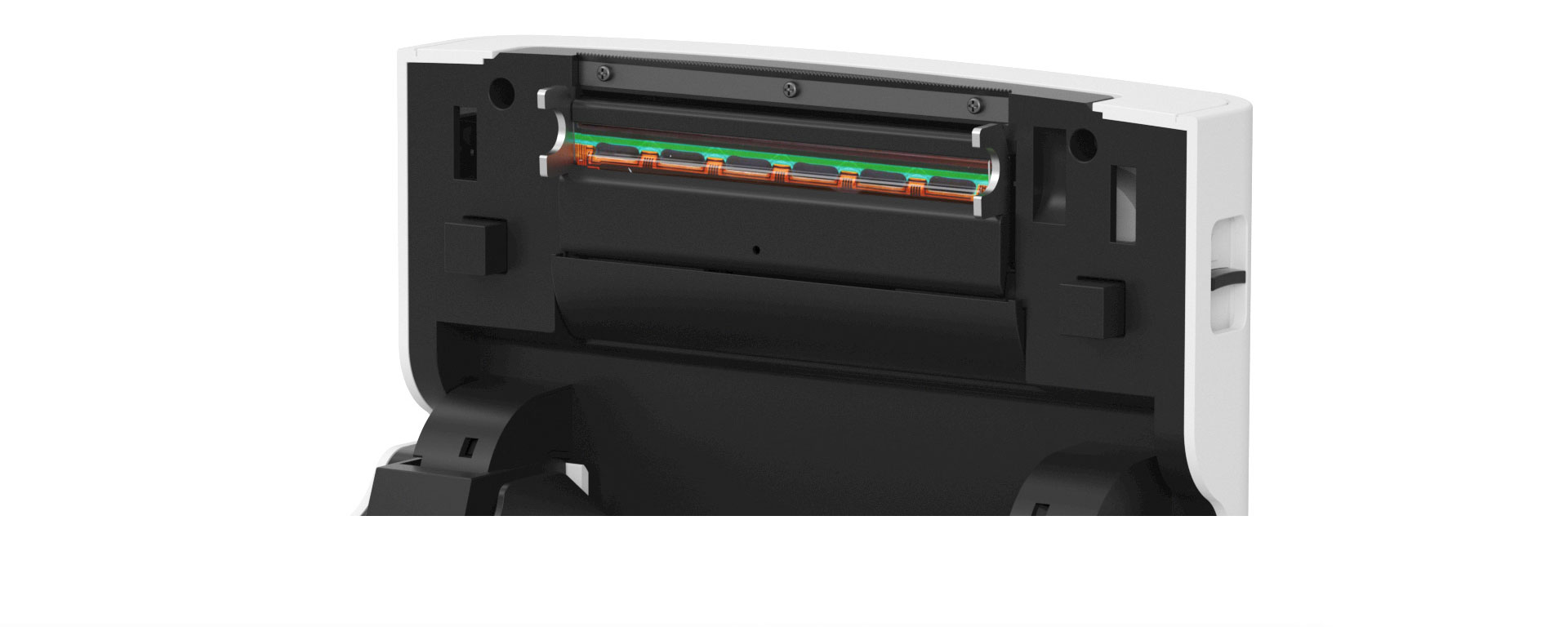

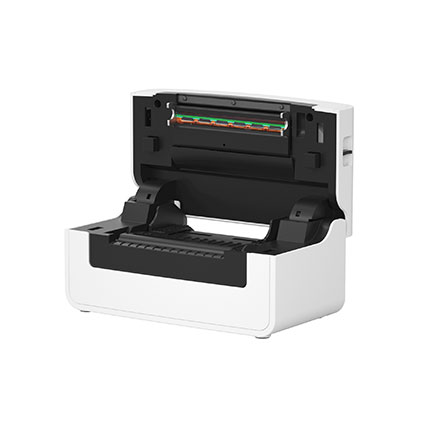

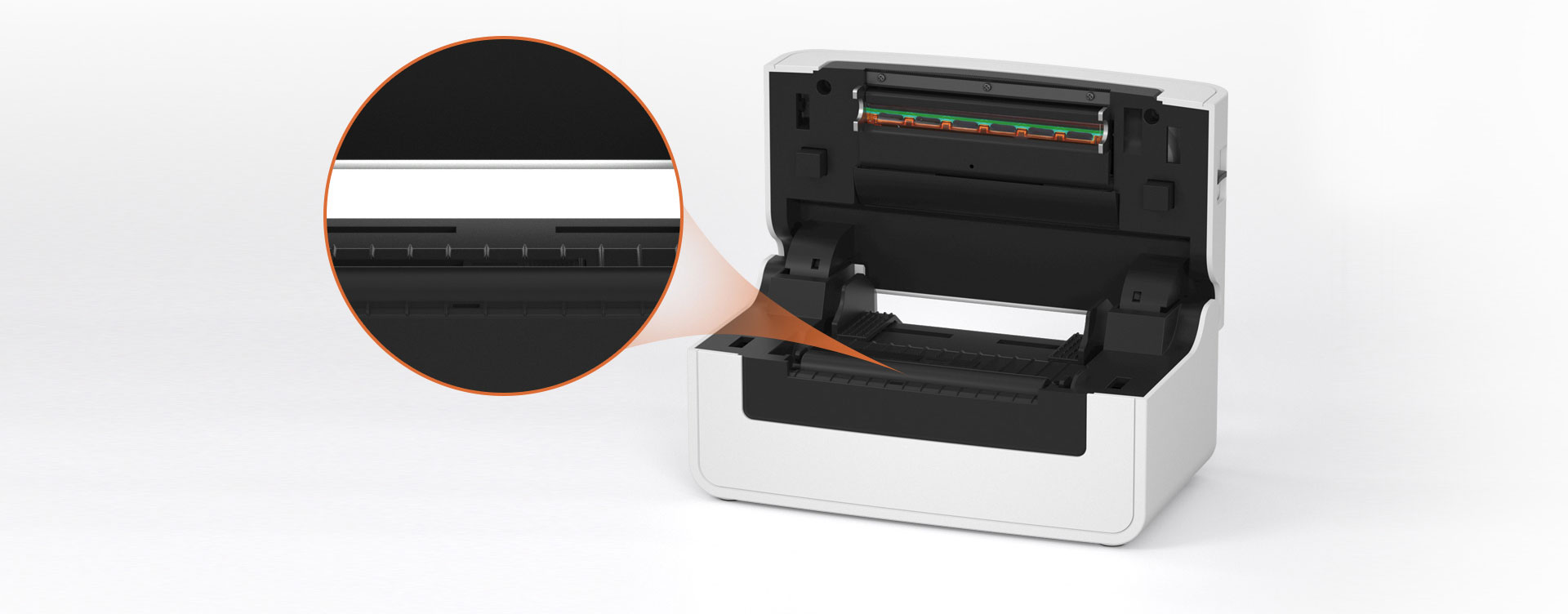

•【Considerable design】Compact design, built-in adapter, more space-saving; intensified coating over TPH, more durable; larger size rubber roller to prevent label sticking.
•【Awesome functions】Auto label detection and error reprint technology.

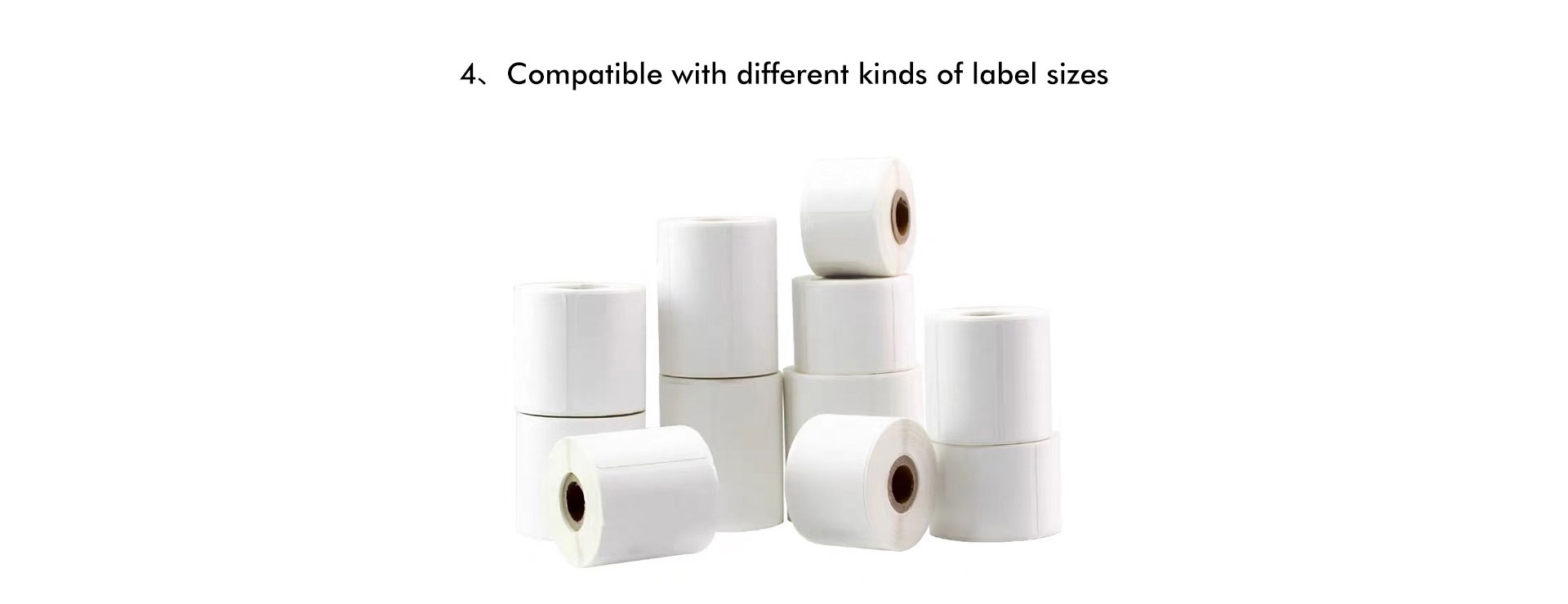

•【High compatibility】Compatible with major shipping platforms including UPS, DHL, Amazon, ebay, Shopify, Paypal, XPS, Etsy, ShipWorks, shipping easy, shipstation, shipwire, shippo, etc. Support Windows and MAC, and work with different sizes of labels.
，
| Printing | Method | Direct Thermal | |
| Resolution | 203 dpi (8 dots/mm) | ||
| Speed Maximum | 4 ips (100 mm/s) | ||
| Width Maximum | 108 mm | ||
| Length Maximum | 300 mm | ||
| Processor | 32 bit RISC CPU | ||
| Memory | RAM | 2 MB | |
| Flash | 2 MB | ||
| Detection | Sensors | Label edge detection,Out of paper detection,Gap detection,Black mark detection,Coveropen detection | |

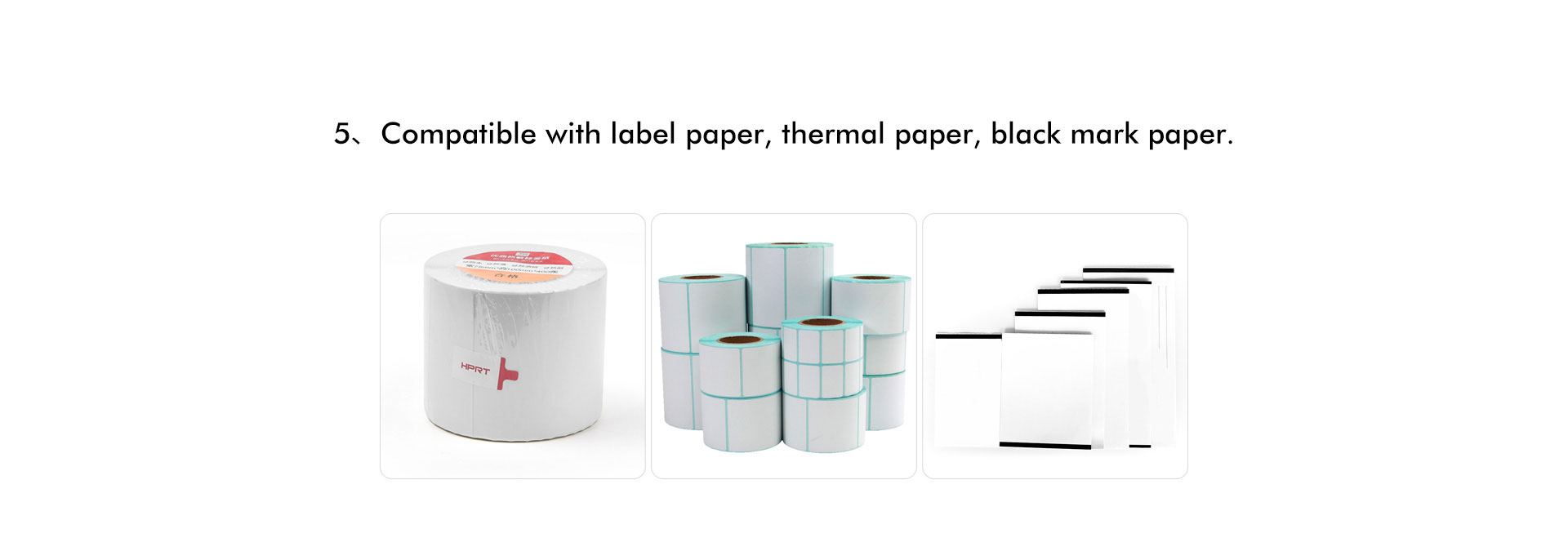

| Media | Type | Folded paper or roll paper, die-cut label, black mark paper | |
| Width | 2"(50mm)-4.65"(118mm) | ||
| Thickness | 0.003"(60μm）-0.0087"（220μm） | ||
| External paper roll | Max OD 5"(127mm) | ||
| External folding paper | W:100mmx L:100mm-300mm | ||
| Programming language | TSPL | ||

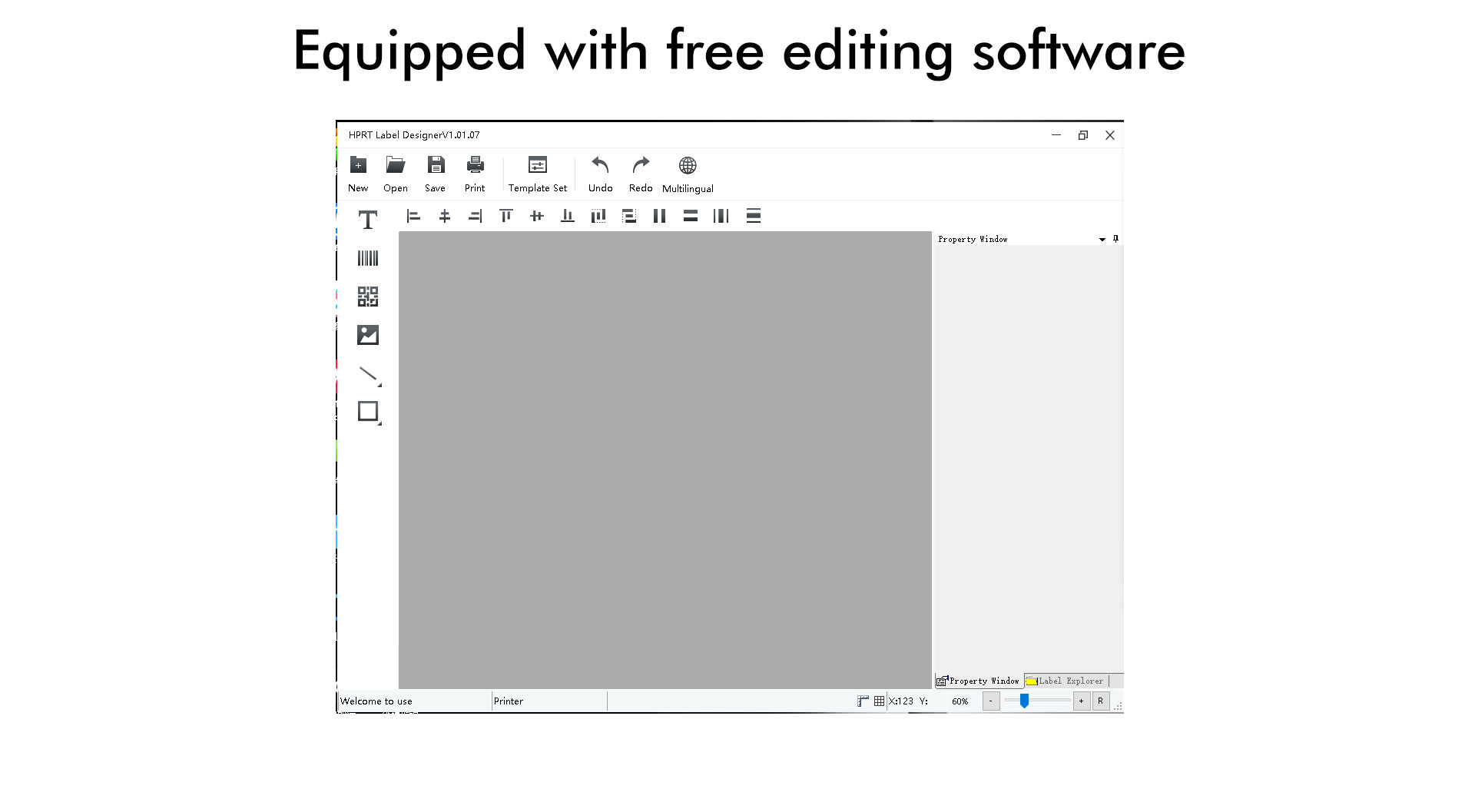

| Software | Label Design | Customer can download third-party editing software for label design | |
| Driver | HPRT Driver：Windows XP，Vista,7，8，10.Linux,Mac | ||
| Resident Fonts | Full ASCII 8×16, 12×24 bitmap fonts, up to 10 times enlarge, 4 directional rotation | ||
| Code Pages | DOS437,720,737,755,775,850,852,855,856,857,858,860,862,863,864,865,866, Windows1250, 1251,1252,1253,1254,1255,1256,1257,1258ISO8859-1,-2,-3,-4,-5,-6,-8,-9,-15 | ||
| Barcode | 1D | Code 39, Code 93, Code 128UCC,Code 128 subset A, B, C | |
| 2D | QR Code | ||
| Interfaces | Standard | USB | |
| Control Panel | One Feed button(three colors for differentthree states) Tear paper from above Coordinated type of paper guidding roller Automatic paper suction from back and then positioning | ||
| Power Adapter | Input | AC100V ~240V 1.5A 50/60Hz | |
| Output | DC24V/2.5A | ||
| Environment | Operation | 41℉( 5℃ )-104℉(40℃)， 30%-85%RH | |
| Storage | '-4℉(-20℃)-122℉(50℃)， 10%-90%RH | ||
| Physical | Dimension | 220mm(L)x 120mm(W) x 108mm(T) | |
| Characteristics | Weight | 1.5kg | |

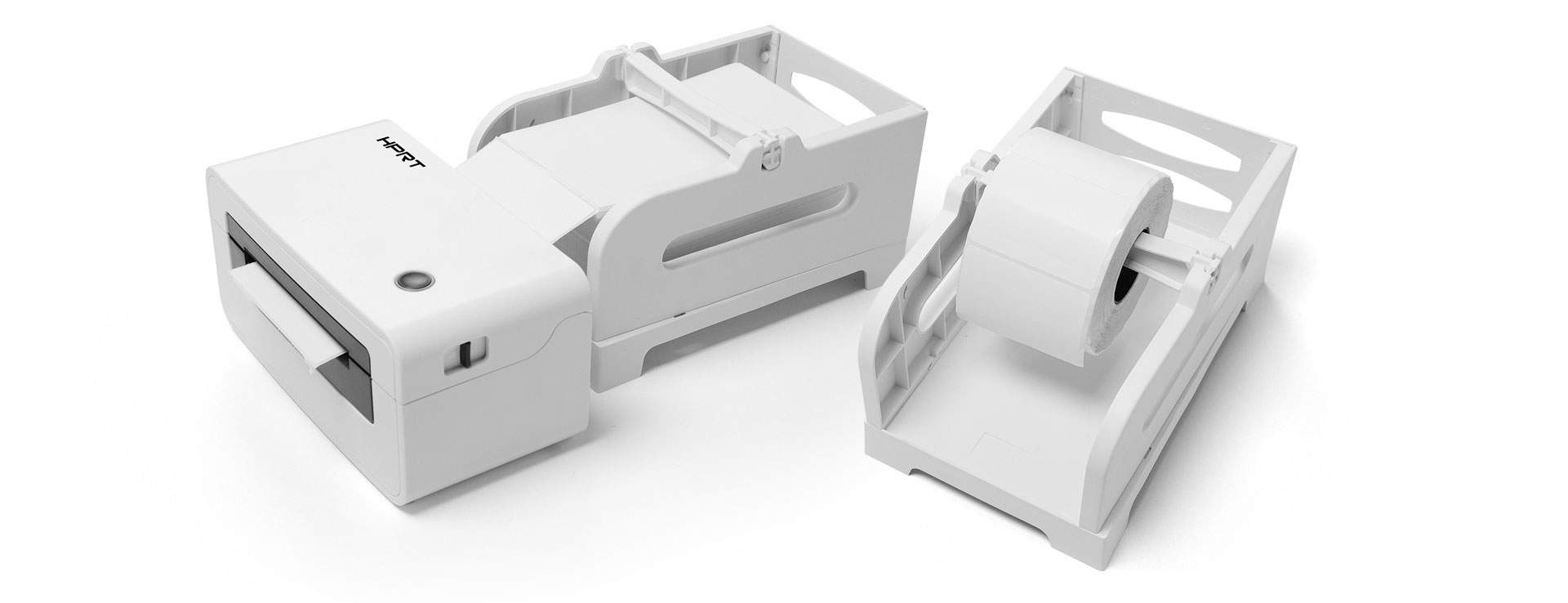

| Optional Accessories | External 5'' roll stand or folding paper box | ||
| Agency Approvals | CCC,FCC,CE | ||
